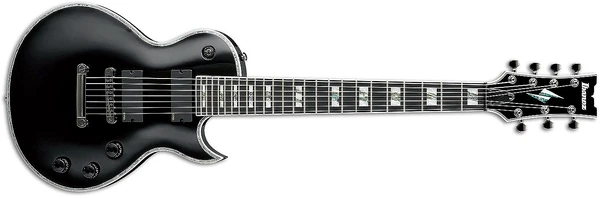

ARZIR27 BK
ARZIR27 Black Red copyright sprite

The ARZIR27 is a seven string ARZ series solid body electric guitar model introduced by Ibanez in 2014. It was produced in China as part of the metal focused Iron Label line.

The ARZIR27 features a mahogany body with abalone purfling and white binding mated to a set-in mahogany neck with a smooth heel and a 24-fret ebony fingerboard with binding and split block position markers. Components include dual active EMG humbucking pickups with individual volume controls, a Full Tune III fixed bridge and tailpiece, black Sure Grip III knobs and locking tuning machines.

A six-string version, the ARZIR20, is also available as is a similar model with a figured bubinga top, the ARZIR27FB.

The ARZIR27 was discontinued after 2015.

Specifications

Specifications for ARZIR27
Year(s) produced: 2014–2015
Sold in: USA
Made in: China
Finish(es): Black (BK)
Body
Body type:
Solid body
Body material:
Mahogany w/ abalone purflling & white binding
Neck joint:
Set-in w/ smooth heel
Bridge:
Full Tune III fixed
Tailpiece:
Full Tune III
Hardware color:
Cosmo black / black Sure Grip III knobs
Neck
Neck type:
ARZ-7
Neck material:
1-piece mahogany
Scale length:
635mm/ 25"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
24 / medium
Nut:
Black plastic (48mm)
Machine heads:
Locking
Electronics
Pickup configuration:
HH
Bridge pickup:
EMG 707 (H) active
Neck pickup:
EMG 707 (H) active
Controls:
2 volume / 1 tone / 3-way toggle

Sources
