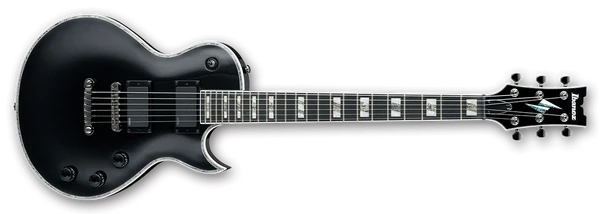

ARZIR20 BK
ARZIR20 Black (more images) Red copyright sprite

The ARZIR20 is an Artist series solid body electric guitar model introduced by Ibanez in 2014. It was produced in China as part of the metal-focused Iron Label line.

The ARZIR20 features a mahogany body with abalone purfling and cream binding mated to a set-in mahogany neck with 24-fret ebony fingerboard with binding and split block position markers. Components include dual active EMG humbucking pickups with individual volume controls, a Tune-o-matic style fixed bridge and tailpiece, Sure Grip knobs and locking tuners.

A seven-string version, the ARZIR27, is also available as is a similar model with a figured bubinga top, the ARZIR20FB.

The ARZIR20 was discontinued after 2016 and replaced by the similar ARZIR30. Differences between the models include a different body binding and bridge.

Specifications[]

Related content: Iron Label | ARZ series | Artist series | Models-icon
Specifications for ARZIR20
Model name: ARZIR20
Year(s) offered: 2014–2016
Sold in: USA
Made in: China
Finish(es): Black (BK) / White (WH)
Body
Body type:
Solid body
Body material:
Mahogany w/ abalone binding
Neck joint:
Set-in w/ smooth heel
Bridge:
ART-1 fixed
Tailpiece:
Quik Change III
Knob style:
Black Sure Grip III
Hardware color:
Cosmo black
Neck
Neck type:
ARZ
Neck material:
1-piece mahogany
Scale length:
635mm / 25"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
24 / medium
Nut:
Graph Tech Black TUSQ XL (43mm)
Machine heads:
Ibanez locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
EMG 81 (H) active/ ceramic
Neck pickup:
EMG 60 (H) active/ ceramic
Controls:
Two volumes / master tone / 3-way toggle pickup selector
String gauge (factory):
.010–.046

Images[]

Additional finishes/ details
ARZIR20 WH
White
HH 3-way toggle
Pickup switching diagram
Controls 2VT 3-way Artist
Controls layout
