ARZ307FM TDB

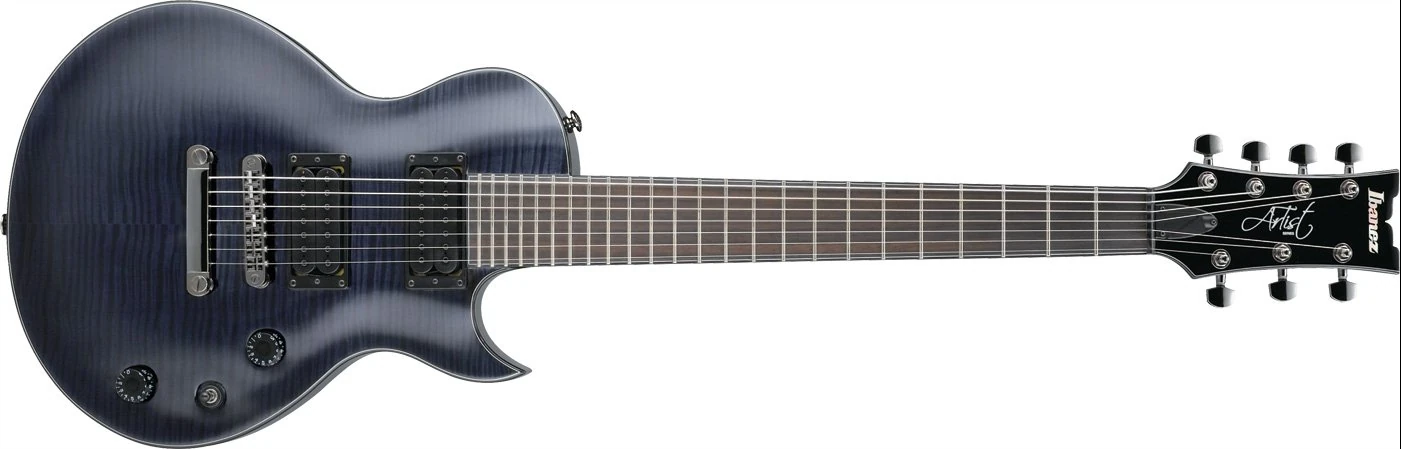

ARZ307FM Transparent Deep Black Red copyright sprite

The ARZ307FM is a seven string ARZ series solid body electric guitar model introduced by Ibanez in 2012. It was produced in China.

The ARZ series was introduced in 2011. They are similar to the ART series models, but feature a 24-fret neck and more features suitable for heavy music.

The ARZ307FM features a flamed maple top on a mahogany body mated to a set-in mahogany and maple neck with a 24-fret rosewood fingerboard with binding and no position inlays. Components include a pair of Ibanez Axis humbucking pickups and a Tight Tune III Tune-o-matic style bridge and tailpiece.

The ARZ307 is a similar model without the flamed maple top.

The ARZ307FM was discontinued after 2012.

Specifications

Specifications for ARZ307FM
Year(s) produced: 2012
Sold in: Worldwide
Made in: China
Finish(es): Transparent Deep Black (TDB)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top
Neck joint:
Set-in
Bridge:
Full Tune III-7 fixed
Tailpiece:
Full Tune III-7 tailpiece
Knob style:
Speed (black)
Hardware color:
Cosmo black
Neck
Neck type:
ARZ-7
Neck material:
3-piece mahogany/ maple
Scale length:
2012: 635mm/ 25"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
None
Frets:
24 / medium
Machine heads:
Ibanez die-cast
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Axis Seven 4 (H)
Neck pickup:
Ibanez Axis Seven 3 (H)
Controls:
Master volume / master tone / 3-way toggle

Images

Additional details
HH 3-way toggle
Pickup switching diagram
Controls VT3 ARZ
Control layout
