2016 ARZ200FM CRS

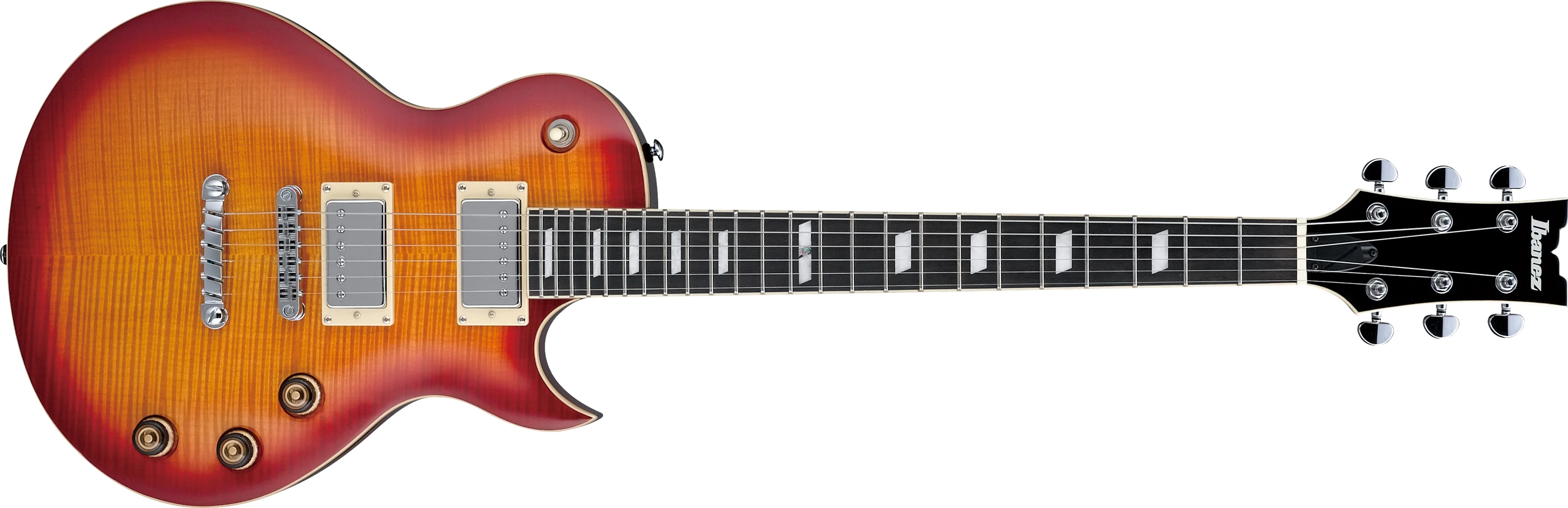

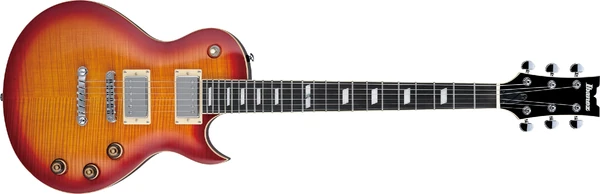

ARZ200FM Cherry Sunburst (more images) Red copyright sprite

The ARZ200FM is an ARZ series solid body electric guitar model introduced by Ibanez in 2016.

The ARZ200FM features an arched flamed maple top with binding on a single-cutaway mahogany body mated to a set-in mahogany neck with a smooth heel with a 24-fret fingerboard with binding and parallelogram inlays. Components include a Tune-O-Matic style fixed bridge and tailpiece and dual Ibanez Classic Elite humbucking pickups.

The rosewood fretboard was replaced with treated New Zealand pine in mid-2017.[1] For 2018 the fretboard material was changed to jatoba.

The ARZ200 is a similar model which lacks the exotic flamed maple top.

The ARZ200FM was discontinued after 2018 along with the entire ARZ series.

Specifications

Specifications for ARZ200FM
Model name: ARZ200FM
Year(s) produced: 2016–2018
Sold in: North & South America and Oceania (2018) / USA
Made in: China
Finish(es): Aged Whiskey Burst (AWB) 2016–2017 / Cherry Sunburst (CRS) / Tri Fade Burst (TFB) 2016–2017 / Transparent Gray Burst (TGB) USA only
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top w/ binding
Neck joint:
Set-in w/ smooth heel
Bridge:
ART-1 fixed
Tailpiece:
Quik Change III
Knob style:
Sure Grip III (gold)
Hardware color:
Chrome
Neck
Neck type:
ARZ
Neck material:
1-piece mahogany
Scale length:
635mm/ 25"
Fingerboard material:
2016–2017: Rosewood w/ binding
2017: Treated New Zealand pine w/ binding
2018: Jatoba w/ binding
Fingerboard inlays:
White parallelogram
Frets:
24 / medium
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Classic Elite (H) passive/ ceramic
Neck pickup:
Ibanez Classic Elite (H) passive/ ceramic
Controls:
Master volume / master tone / 3-way toggle
String gauge (factory):
.010–.046

Images

Additional finishes/ details

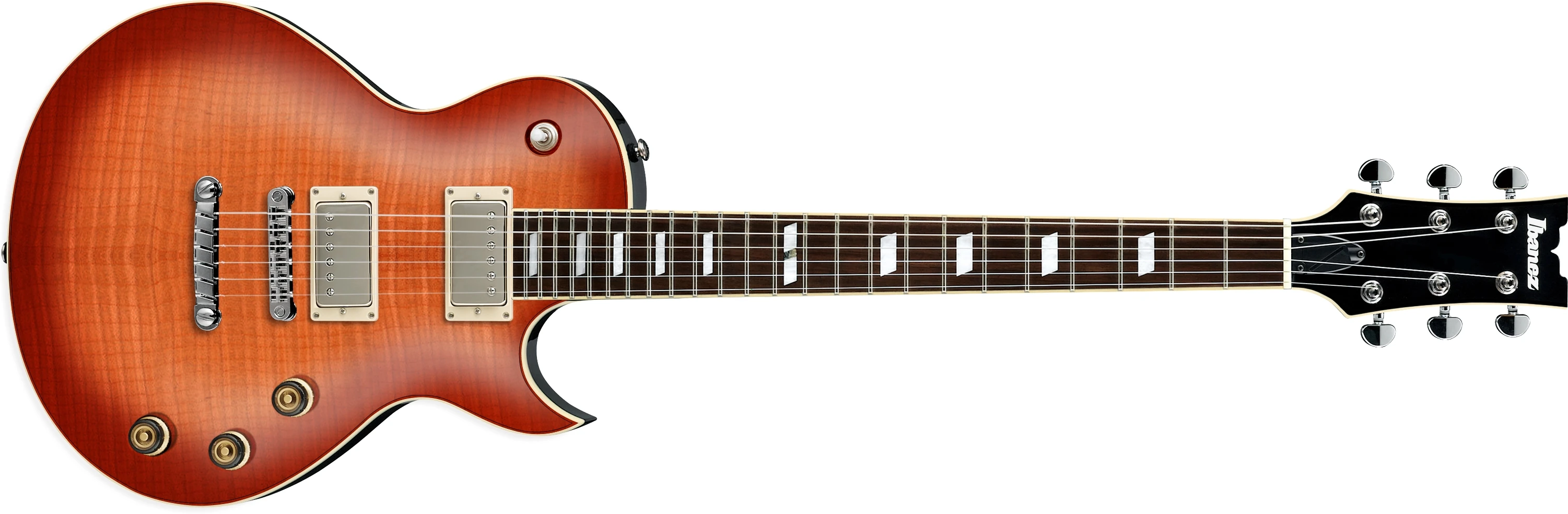

2016 ARZ200FM AWB
Aged Whiskey Burst

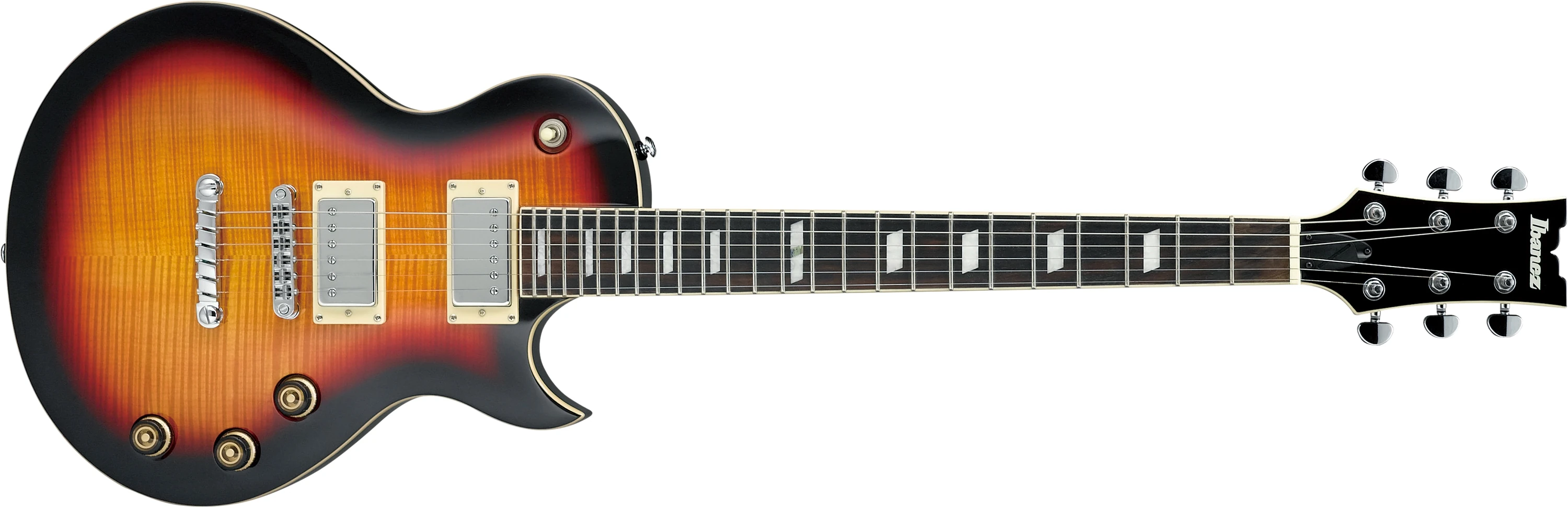

2016 ARZ200FM TFB
Tri Fade Burst

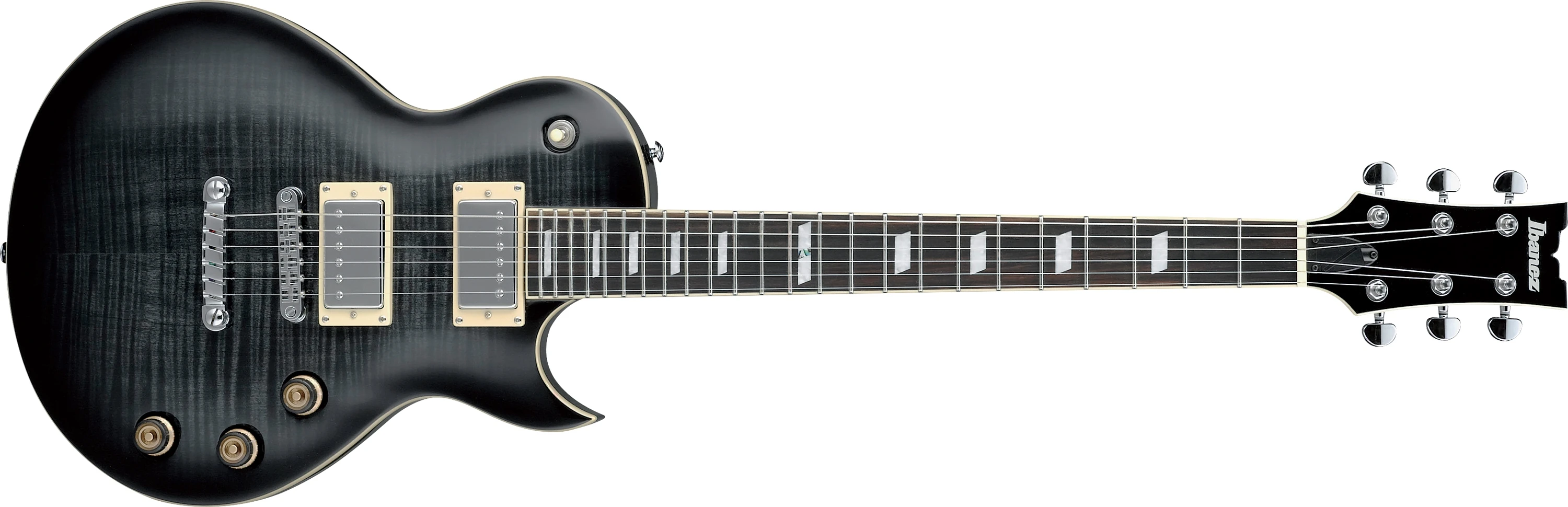

2016 ARZ200FM TGB
Transparent Gray Burst
Controls 2VT 3-way Artist
Control layout
HH 3-way toggle
Pickup switching

Sources

  1. ARZ200FM product page, Ibanez USA (website), archived from the original November 2017
