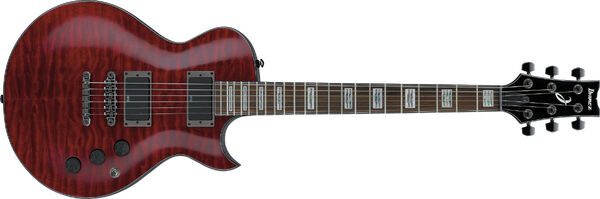

ART600 BB
ART600 Blackberry (more images) Red copyright sprite

The ART600 is an ART series solid body electric guitar model introduced by Ibanez in 2010. It was produced in China.

The ART600 features a quilted maple top on an arched sapele body which is bolted to a mahogany neck with a 22-fret rosewood fingerboard with binding and pearloid and abalone special ART block position markers. Components include dual Ibanez active LoZ humbucking pickups powered by two AA batteries, a Tune-o-matic style Tight Tune bridge and tailpiece, special rubberized black knobs and Ibanez auto-trimming locking tuners which cut excess string as the locking clamp is engaged.

The ART600 was discontinued after 2011.

Specifications

Specifications for ART600
Year(s) produced: 2010–2011
Sold in: Worldwide (except Japan)
Made in: China
Finish(es): Blackberry (BB) / Rapid Night Blue (RNB) US only / Transparent Black (TK) US only
Body
Body type:
Solid body
Body material:
Sapele w/ quilted maple top w/ binding
Neck joint:
Set-in
Bridge:
Tight Tune fixed
Tailpiece:
Tight Tune
Knob style:
Special rubberized
Hardware color:
Cosmo black
Neck
Neck type:
ART
Neck material:
3-piece sapele/ mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearl & abalone ART block
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez locking (auto-trimming)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez LoZ1-B (H) active/ ceramic
Neck pickup:
Ibanez LoZ1-N (H) active/ ceramic
Controls:
2 volume / 1 tone / 3-way toggle

Images

Additional finishes/ details

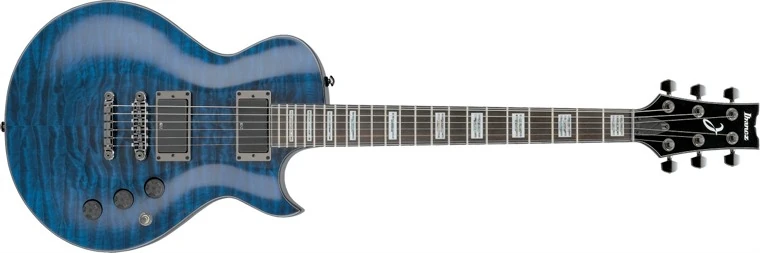

ART600 RNB
Rapid Night Blue

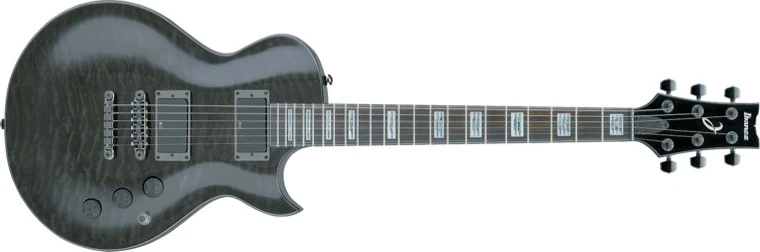

ART600 TK
Transparent Black

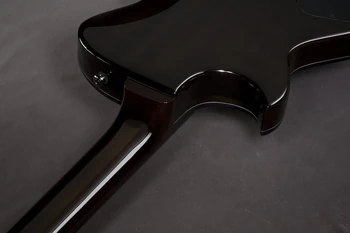

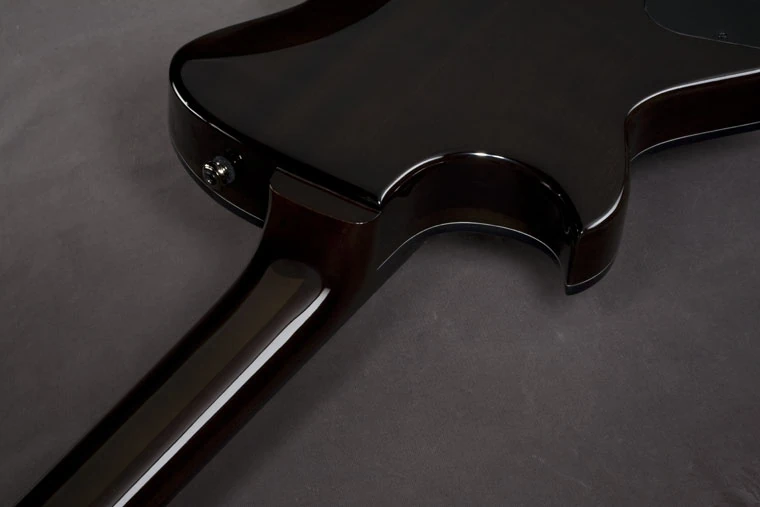

ART600TK sapele-maple 3pc neck
Sapele & maple set-in neck

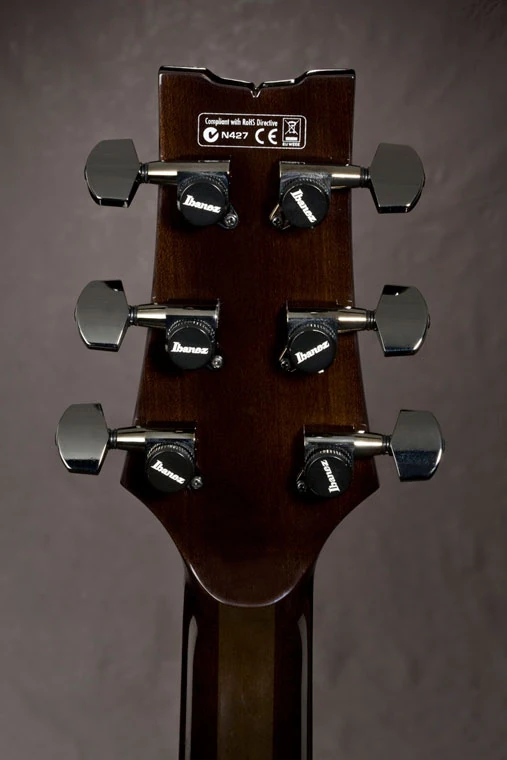

ART600TK tuners1
Headstock & locking tuners
HH 3-way toggle
Pickup switching diagram
Controls 2V1T ART series
Controls layout
ART2008 wiring diagram
Wiring diagram
