ART420 HAM
ART420 HAM Red copyright sprite

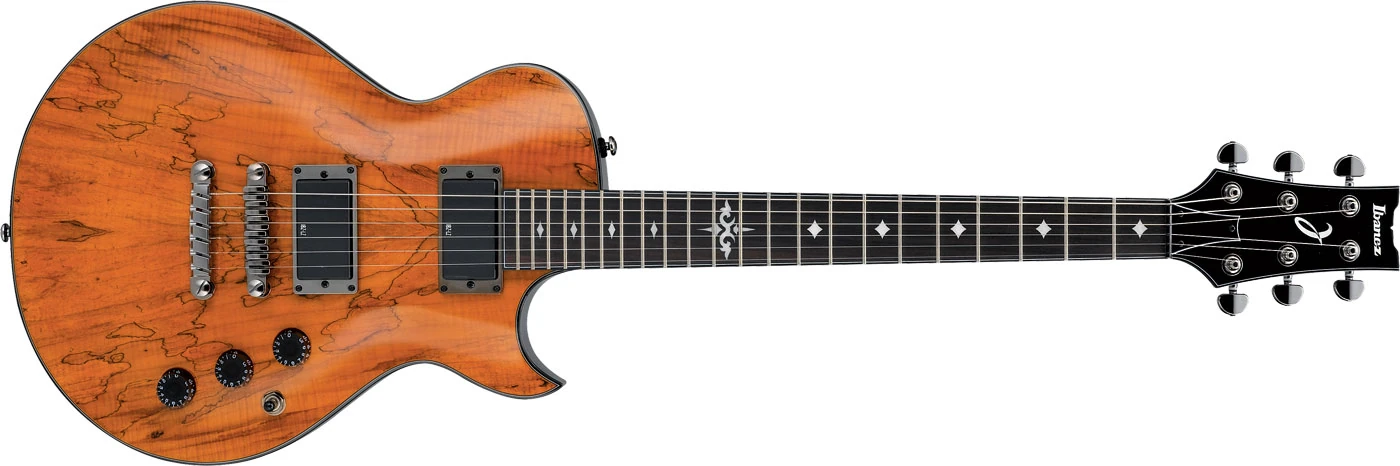

The ART420 is an ART series solid body electric guitar model introduced by Ibanez in 2009. It was made in China.

The ART420 features a spalted maple top with black binding on a mahogany body mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with binding and diamond position markers. Components include a Gibraltar III Tune-o-matic style fixed bridge and tailpiece, a pair of Ibanez LoZ active humbucking pickups and black speed knobs.

It replaced the ART400, which is a similar model with a koa top.

The ART420 was discontinued after 2011.

Specifications

Specifications for ART420
Year(s) produced: 2009–2011
Sold in: North & South America and Oceania / USA
Made in: China
Finish(es): Honey Amber (HAM)
Body
Body type:
Solid body
Body material:
Mahogany w/ spalted maple top & black binding
Neck joint:
Set-in
Bridge:
Gibraltar III fixed
Tailpiece:
Quik Change III
Knob style:
Black speed knobs
Hardware color:
Cosmo black
Neck
Neck type:
ART
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearl diamonds w/ ART special at 12th fret
Frets:
22 / medium
Nut:
Black plastic (43mm)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez LoZ1-B (H) active/ ceramic
Neck pickup:
Ibanez LoZ1-N (H) active/ ceramic
Controls:
2 volume / 1 tone / 3-way toggle

Images

Other available finishes
HH 3-way toggle
Pickup switching diagram
Controls 2V1T ART series
Controls layout
ART2008 wiring diagram
Wiring diagram
