ART400 HAM
ART400 Honey Amber (more images) Red copyright sprite

The ART400 is an ART series solid body electric guitar model introduced by Ibanez in 2008. It was made in China.

The ART400 features a koa top with black binding on a mahogany body mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with binding and diamond position markers. Components include a Gibraltar III Tune-o-matic style fixed bridge and tailpiec, a pair of Ibanez LoZ active humbucking pickups and black speed knobs.

It was replaced by the ART420 in 2009, which is a similar model with a spalted maple top.

Specifications[]

Related content: ART series | Artist series | Models-icon
Specifications for ART400
Year(s) offered: 2008
Sold in: Japan / North & South America and Oceania / USA
Made in: China
Finish(es): Honey Amber (HAM)
Body
Body type:
Solid body
Body material:
Mahogany w/ koa top & black binding
Neck joint:
Set-in
Bridge:
Gibraltar III
Tailpiece:
Quik Change III
Knob style:
Black speed knobs
Hardware color:
Cosmo black
Neck
Neck type:
ART
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearl diamonds w/ ART special at 12th fret
Frets:
22 / medium
Nut:
Black plastic (43mm)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez LoZ1-B (H) active/ ceramic
Neck pickup:
Ibanez LoZ1-N (H) active/ ceramic
Controls:
Two volumes / master tone / 3-way toggle pickup selector

Images[]

Additional details

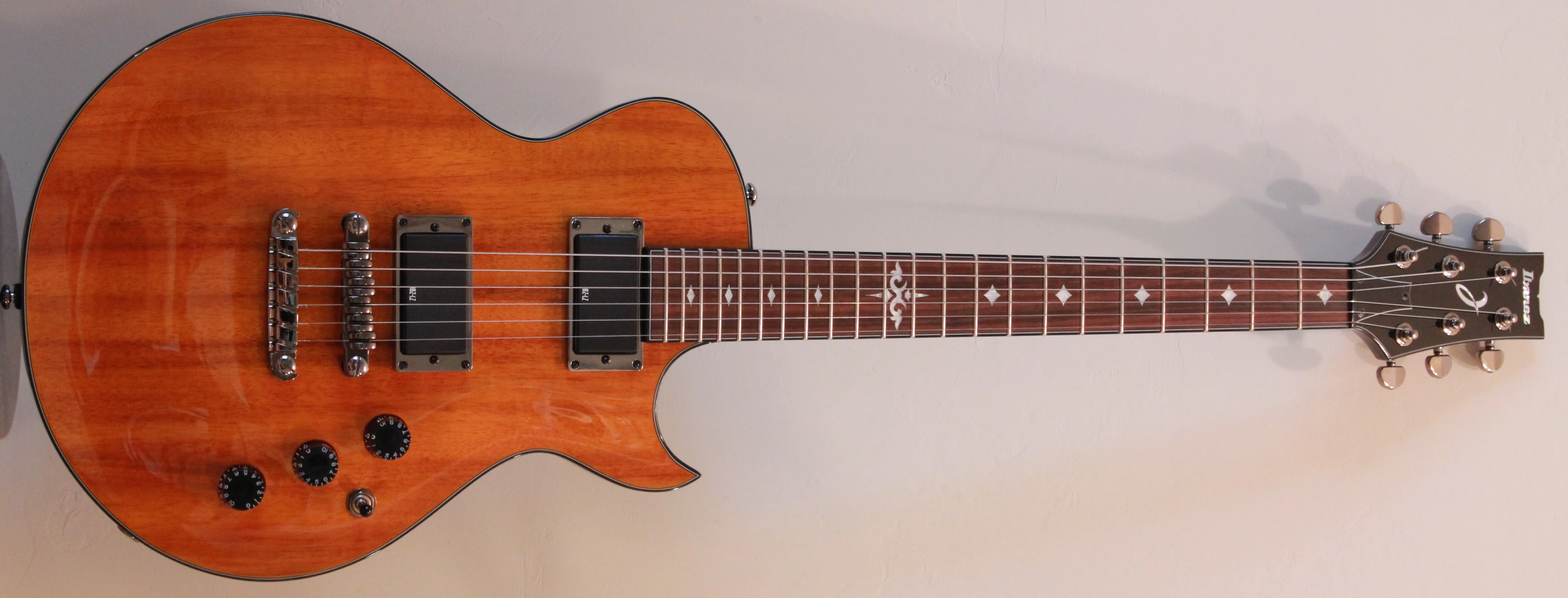

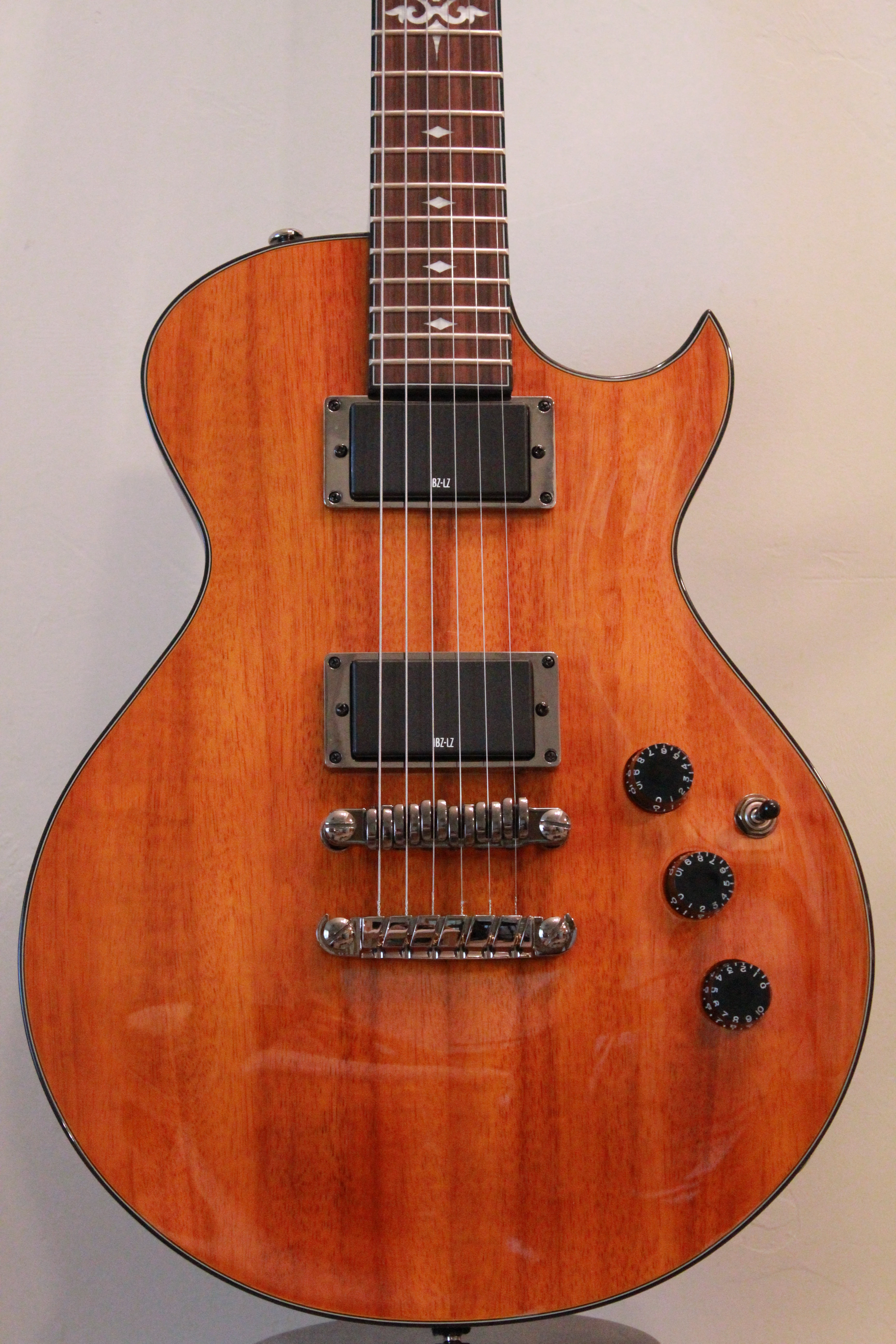

ART400 front
Front of body

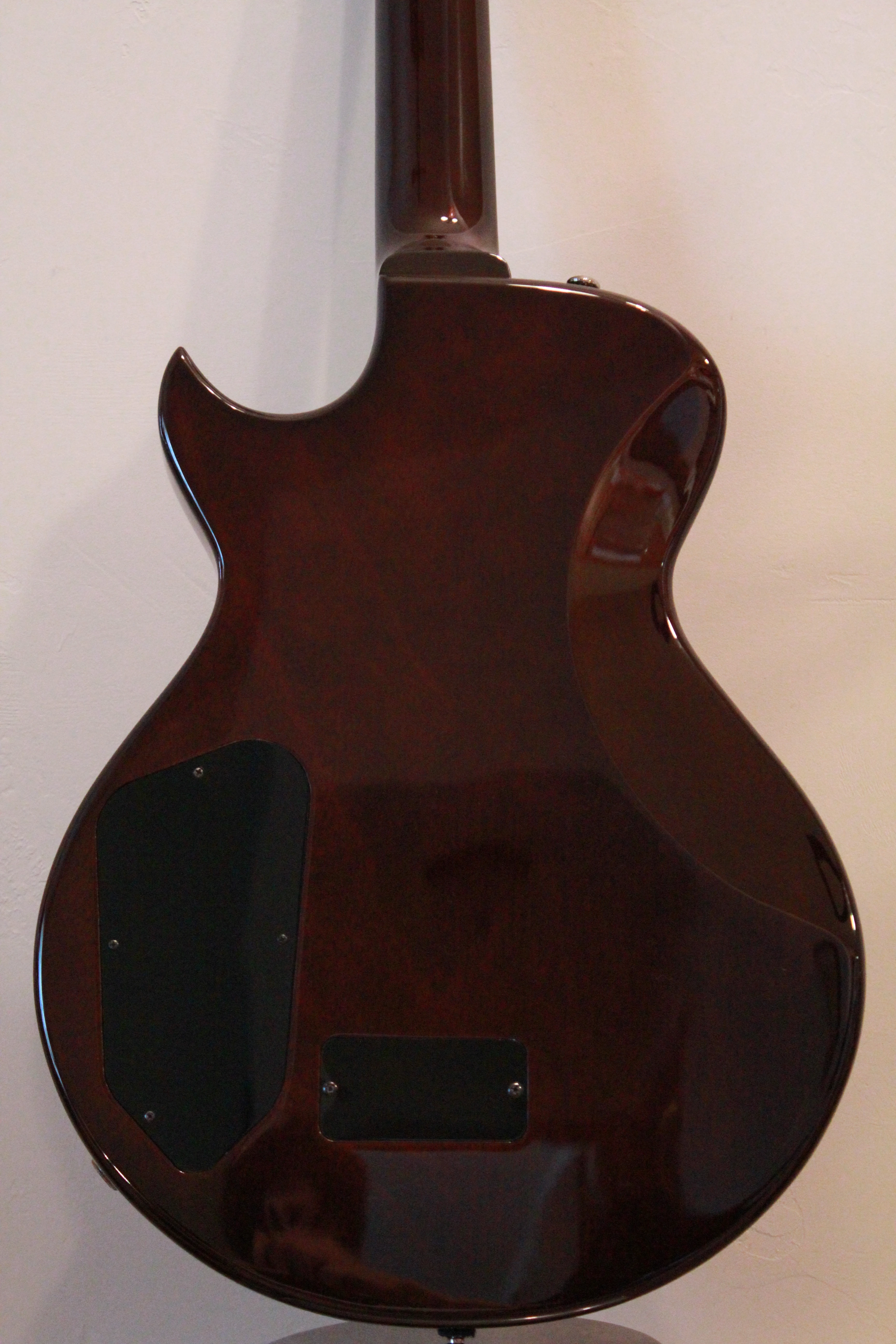

ART400 rear
Rear of body

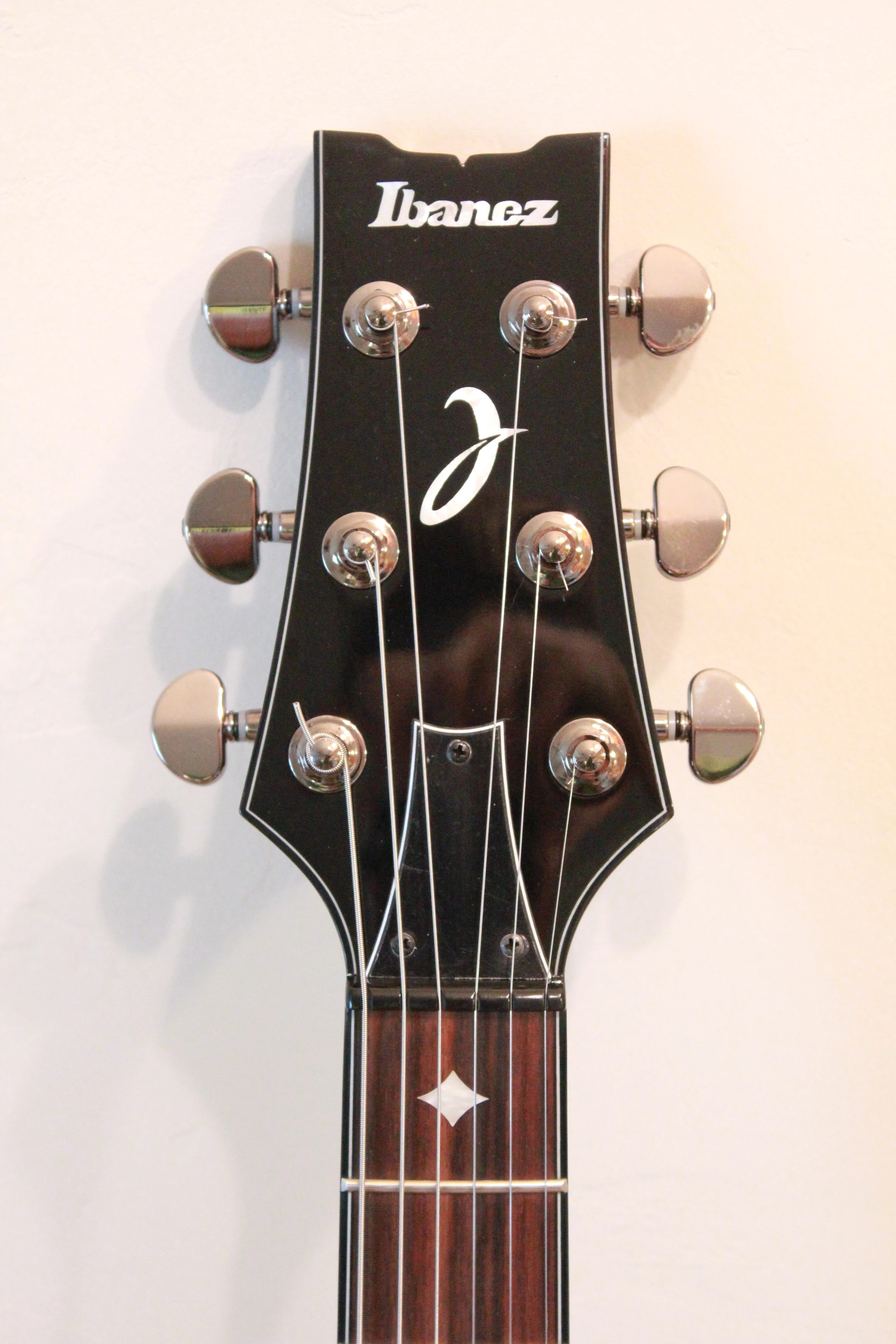

ART400 headstock
Headstock

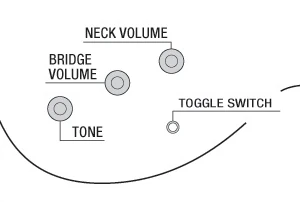

ART400 Inlay
Control layout
HH 3-way toggle
Pickup switching diagram
Controls 2V1T ART series

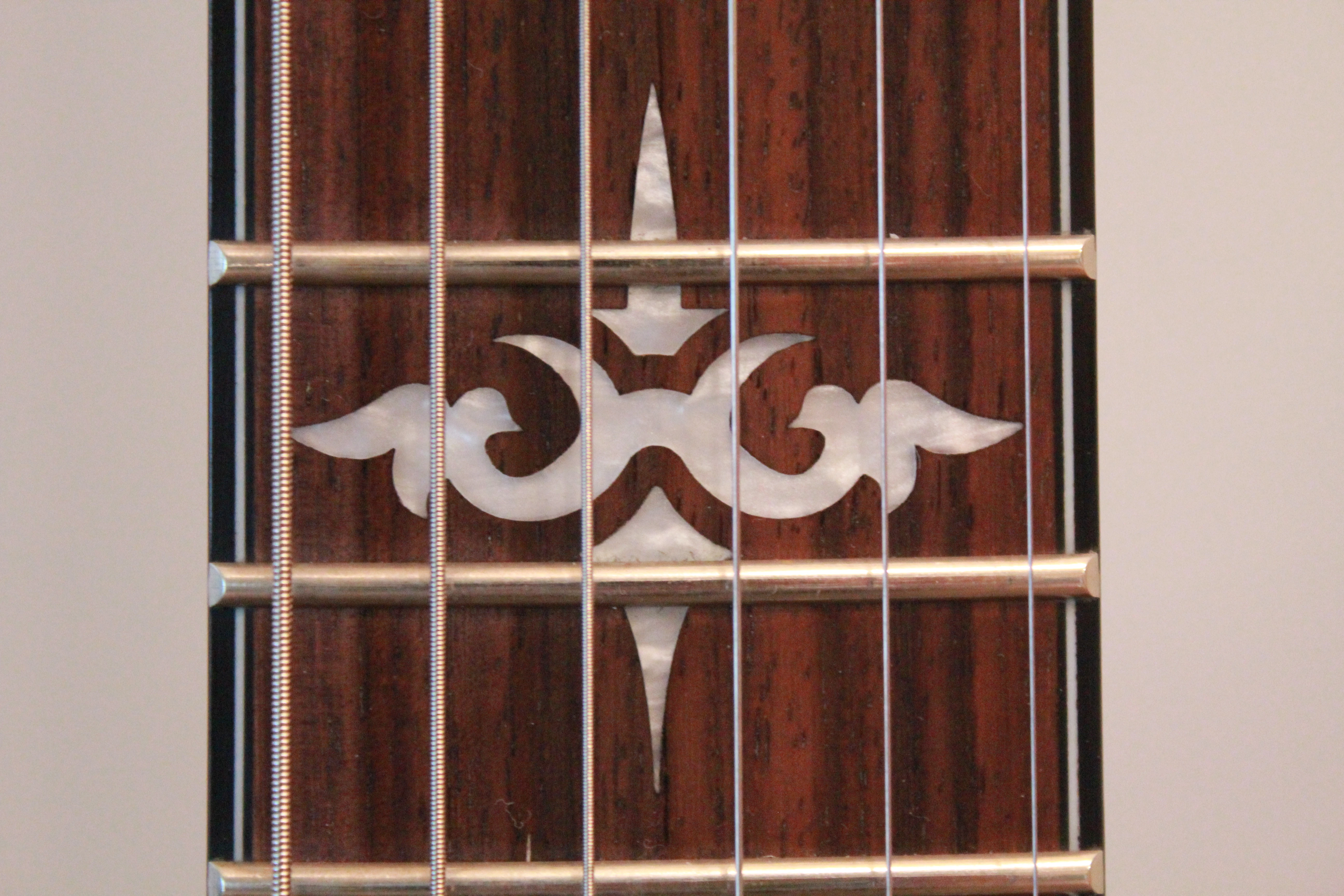

12th fret Inlay

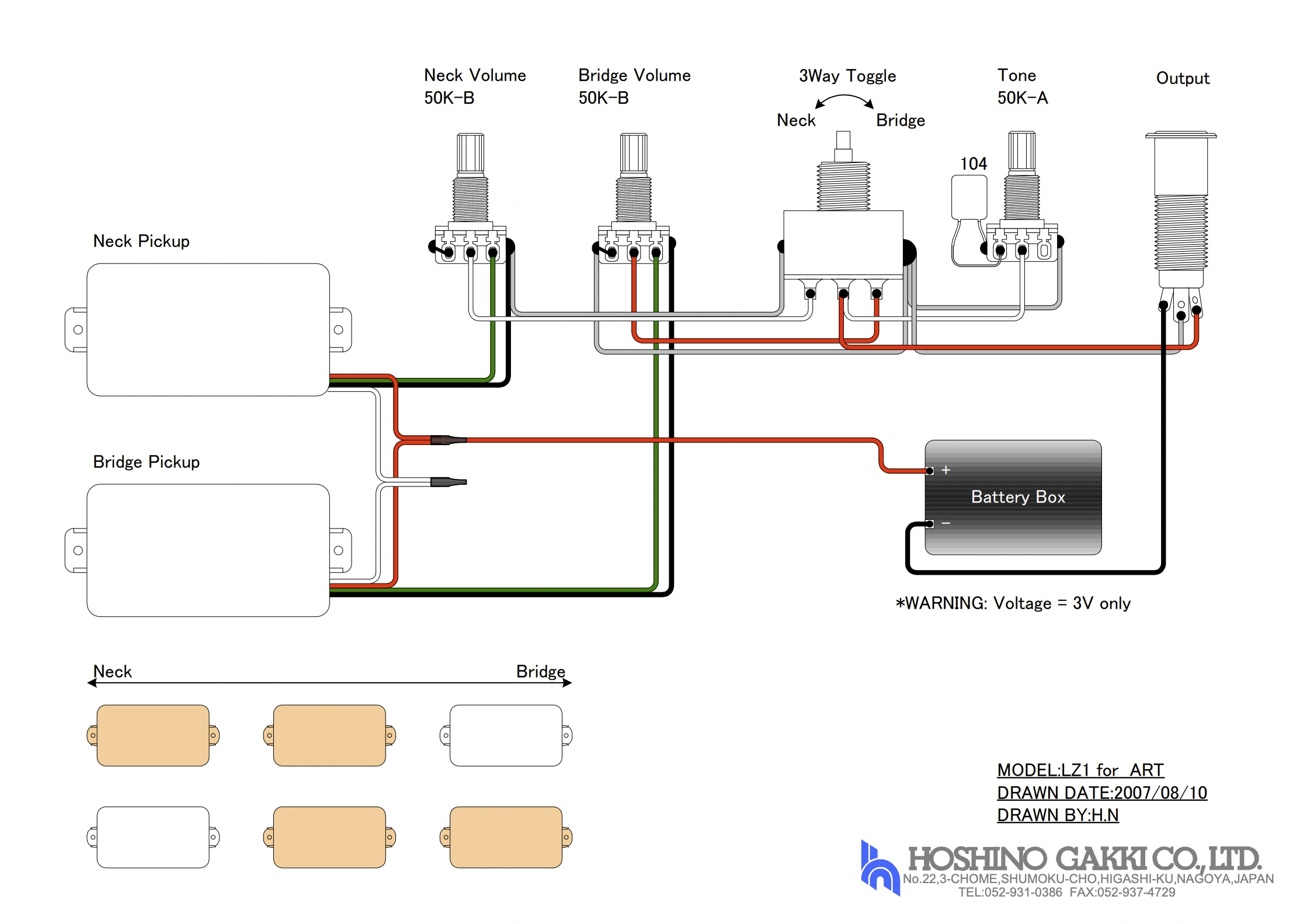

ART2008 wiring diagram
Wiring diagram
