2019 ART120QA TKS 2Y 01

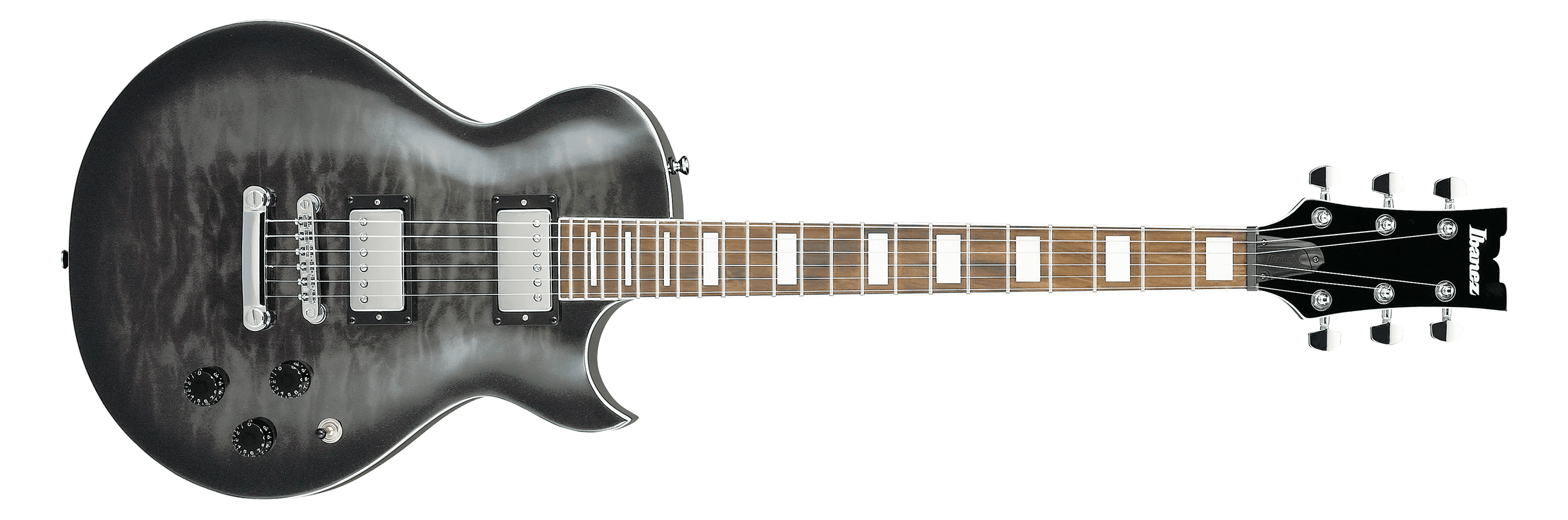

ART120QA Transparent Black Sunburst Red copyright sprite

The ART120QA is an ART series solid body electric guitar model introduced by Ibanez in 2019. It is produced in China.

The ART120QA features an art grain quilted maple veneer on a poplar body bolted to a maple neck with a 22-fret treated New Zealand pine fingerboard with binding and a acrylic block position markers. Components include dual Ibanez Infinity R humbucking pickups and a Full Tune III Tune-O-Matic style bridge with tailpiece.

For 2020 the fretboard was replaced with purpleheart and the bridge was replaced with the new Gibraltar Performer.

The ART120 is a similar model without the art grain top and with different pickups.

Specifications

Specifications for ART120QA
Model name: ART120 (2019–2020)
Year(s) produced: 2019–2020
Sold in: Asia & Africa / Europe / North & South America and Oceania / USA
Made in: China
Finish(es): Transparent Black Sunburst (TKS) / Transparent Blue Burst (TBB) USA only
Body
Body type:
Solid body
Body material:
Poplar w/ art grain quilted maple top
Neck joint:
Set-in
Bridge:
2019: Full Tune III fixed
2020: Gibraltar Performer fixed (10.5mm string spacing)
Tailpiece:
Full Tune III
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
ART
Neck material:
1-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
2019: Treated New Zealand pine w/ binding
2020: Purpleheart w/ binding
Fingerboard inlays:
White block
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Classic Elite passive/ ceramic (H)
Neck pickup:
Ibanez Classic Elite passive/ ceramic (H)
Controls:
2 volume / 1 tone / 3-way toggle
Output jack:
¼" mono
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
2019 ART120QA TBB 2Y 01
Transparent Blue Burst
HH 3-way toggle
Pickup switching
Controls 2VT3
Control layout
