The ART-1 is a fixed guitar bridge used on various Ibanez models. It was designed by and produced exclusively for Ibanez. It was introduced in 2002 with the Artcore series.

The ART-1 is a Tune-O-Matic style bridge. It does not anchor the strings to the body itself and therefore must be combined with a separate tailpiece or used in a string-through-body setup. It is often paired with a Quik Change III tailpiece.

Description

Versions of the ART-1 were produced for full-hollow, semi-hollow and solid body guitars. In the full-hollow configuration the mounting posts are attached to a wooden bridge which rests on the top. In the semi-hollow and solid body configurations threaded posts are mounted in a sleeve or insert which is glued into the center block or body of the guitar.

Thumbscrews that sits below the bridge on either side allow the overall height of the bridge to be adjusted for proper string break angle and action. Intonation of each string can be adjusted with a bolt running through each saddle. String spacing is 10.5mm.

The ART-1 was discontinued in 2020; in most models it was replaced by the new Gibraltar Performer bridge.

Images

ART-1 details

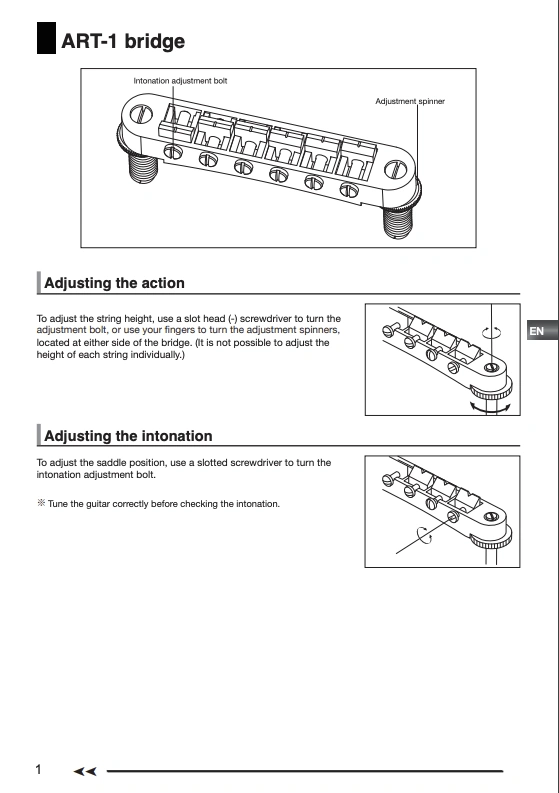

ART-1 instruction.png
Diagram and instructions
ART-1 gold blackwood-inlaid-base.jpg
Gold finish on blackwood base with inlay

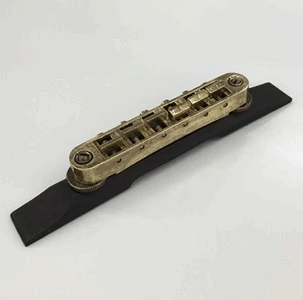

ART-1 antique-gold blackwood-base.jpg
Antique gold finish on blackwood base (no inlay)

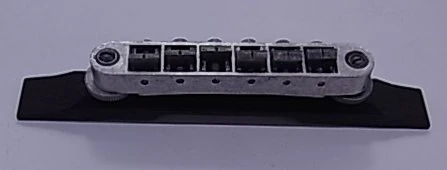

ART-1 antique-chrome wooden-base.jpg
Antique chrome finish on wooden base (no inlay)

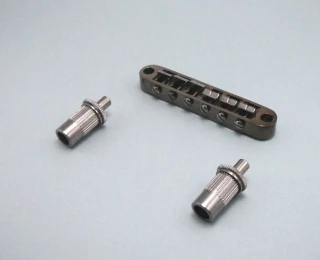

ART-1 cosmo-black semi-hollow.jpg
Cosmo black finish for semi-hollow

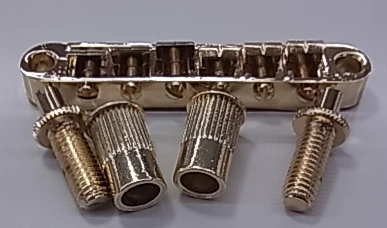

ART-1 gold solid-body.jpg
Gold finish for solid body
