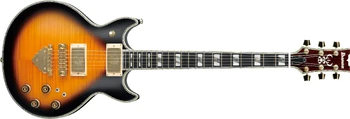

AR720FM AWB.png
AR720FM Aged Whiskey Burst (more images) Red copyright sprite.png

The AR720FM is an Artist series guitar model introduced by Ibanez in 2014. It was produced in China.

The AR720FM features a flamed maple top with abalone purfling and creme binding on a mahogany body mated to a set-in maple neck with a 22-fret ebony fretboard with abalone binding and split block position markers. Components include a Gibraltar fixed bridge with a sustain block, dual Ibanez Super 80 humbucking pickups with "Flying Finger" gold covers and individual volume and tone controls wired to Tri-sound switches which allow a wide range of tone options, gold Sure Grip III knobs, Ibanez Smooth Tuner AS tuning machines and a bone nut.

The AR420 is a visually similar model which has different pickups, a different bridge and a rosewood fretboard. The AR620FM is a similar model with a different bridge.

The AR720FM was discontinued after just one year in production.

Specifications

Specifications for AR720FM
Year(s) produced: 2014–2015
Sold in: USA
Made in: China
Finish(es): Aged Whiskey Burst (AWB) / Vintage Burst (VB)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top w/ abalone purfling & creme binding
Neck joint:
Set-in w/ smooth heel
Bridge:
Gibraltar w/ sustain block (10.5mm string spacing)
Tailpiece:
Quik Change w/ "cloud" ornament
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ abalone binding
Fingerboard inlays:
Abalone/ pearl split block
Frets:
22 / medium (Custom edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez Smooth Tuner AS
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 80 (H)
Neck pickup:
Ibanez Super 80 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector / 2 mini-toggle Tri-sound switches
Output jack:
¼" mono
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
2014 AR720FM VB.jpg
Vintage Burst
HH 3-way tri-sound.png
Pickup switching diagram
Controls 2V2T 3-way tri-sound.png
Control layout
