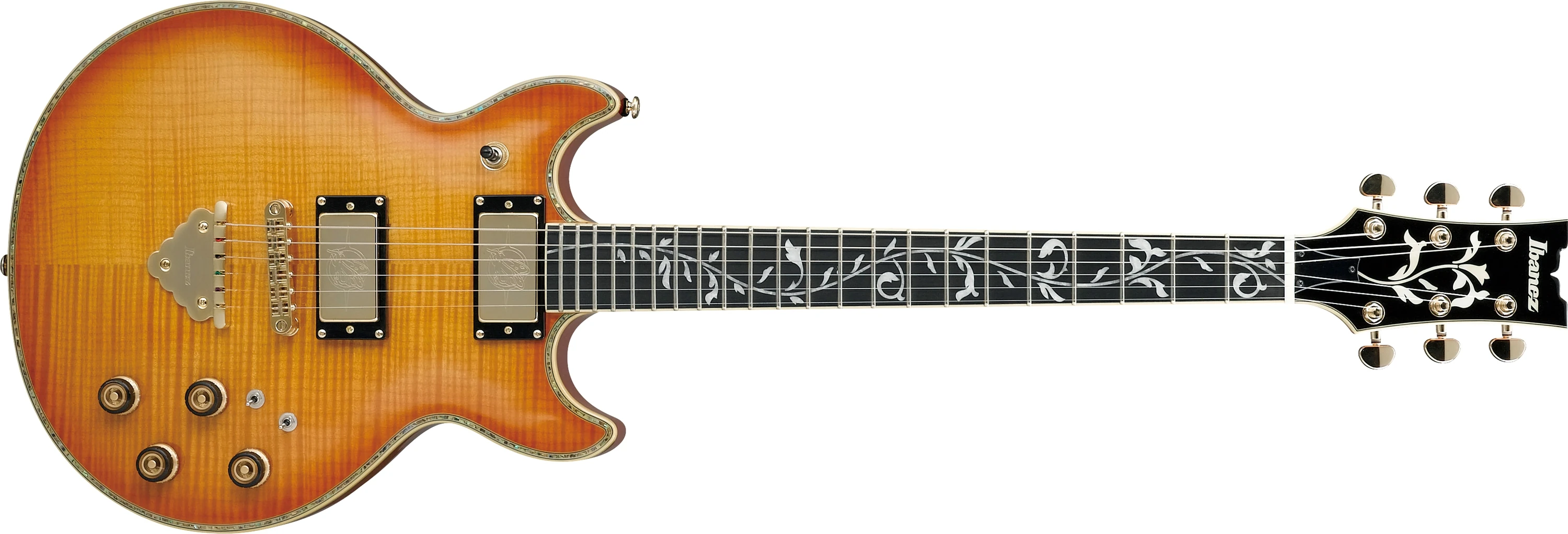

AR620FM Aged Citrine Burst (more images) Red copyright sprite.png

The AR620FM is an Artist series guitar model introduced by Ibanez in late 2015. It was produced in China.

The AR620FM has all the features typical of an Artist model including a set-in maple neck with a smooth heel and a bridge with tailpiece. It features a flamed maple top with abalone purfling and cream binding on a mahogany body mated to a set-in maple neck with a 22-fret ebony fingerboard with binding and Tree of Life inlays. Components include a fixed bridge with tailpiece, dual Ibanez humbucking pickups with individual volume and tone controls wired to Tri-sound switches which allow a wide range of tone options by coil-tapping the pickups and a bone nut.

The AR620 is a similar model without the flamed maple top. The AR420 is a similar model with different pickups. The AR720FM is a similar model with a different bridge.

Thew AR620FM was discontinued after 2016.

Specifications

Specifications for AR620FM
Year(s) produced: 2015–2016
Sold in: USA
Made in: China
Finish(es): Aged Citrine Burst (ACB) / Bursted Smoky Quartz (BSQ)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top & abalone binding
Neck joint:
Set-in w/ smooth heel
Bridge:
ART-1 fixed (10.5mm string spacing)
Tailpiece:
Quik Change Classic
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Tree of Life
Frets:
22 / medium
Nut:
Bone
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Super 80 'Flying Finger' (H)
Neck pickup:
Super 80 'Flying Finger' (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector / 2 Tri-sound switches
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

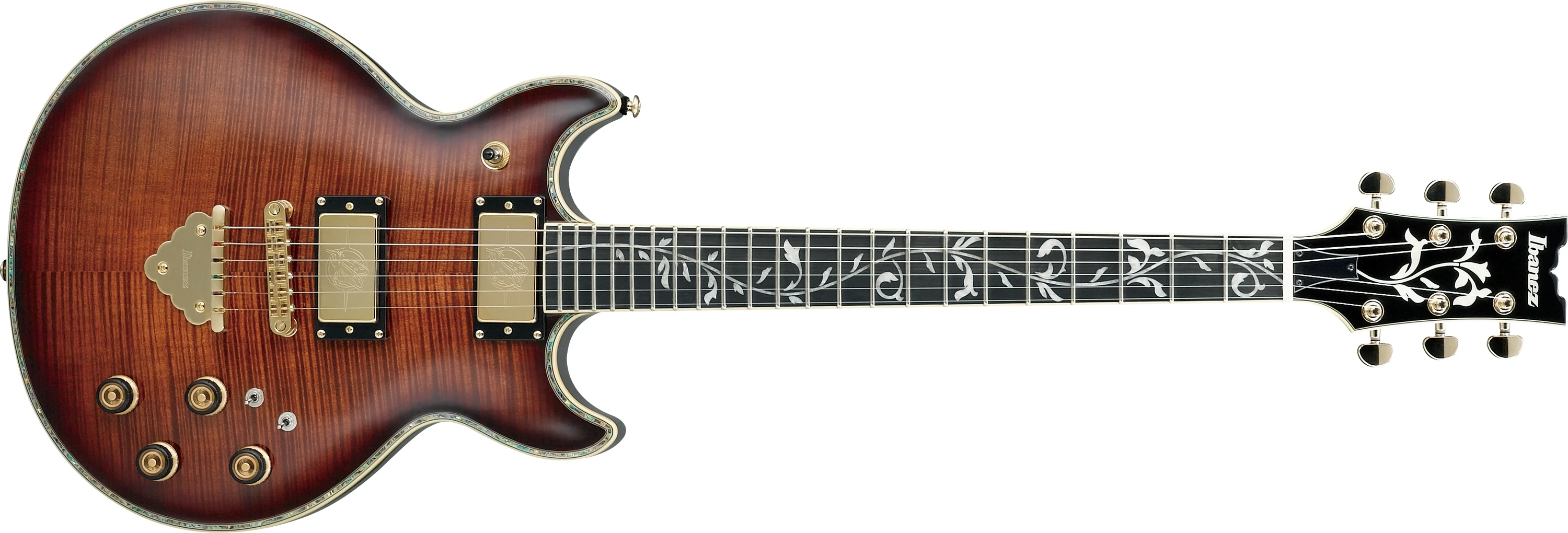

2016 AR620FM BSQ.jpg
Bursted Smoky Quartz
HH 3-way tri-sound.png
Pickup switching

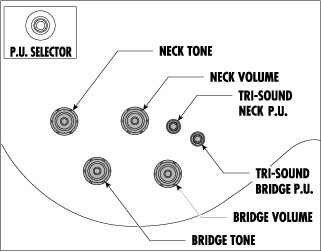

Controls 2V2T 3-way tri-sound.png
Control layout
