AR620 BK
AR620 Black (more images) Red copyright sprite

The AR620 is an Artist series guitar model introduced by Ibanez in 2014. It was produced in China.

The AR620 features an arched mahogany body with abalone purfling and cream binding mated to a set-in maple neck with a smooth heel and a 22-fret ebony fingerboard with binding and Tree of Life inlays. Components include dual Ibanez Super 80 humbucking pickups with individual volume and tone controls wired to Tri-sound switches which allow a range of tone options, a Tune-O-Matic style bridge, a bone nut and Sure Grip III knobs.

The AR620FM is a similar model with a flamed maple top. The AR420 is a similar model with a flamed maple top and different pickups. The AR720FM is a similar model with a different bridge and a flamed maple top.

The AR620 was discontinued after 2017.

Specifications

Specifications for AR620
Model name: AR620
Year(s) produced: 2014–2017
Sold in: Worldwide (except Japan)
Made in: China
Finish(es): Black (BK) / Ivory (IV) 2015–2016
Body
Body type:
Solid body
Body material:
Mahogany w/ abalone binding
Neck joint:
Set-in w/ smooth heel
Bridge:
ART-1 fixed
Tailpiece:
Quik Change Classic
Hardware color:
Gold (Sure Grip III knobs)
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Tree of Life
Frets:
22 / medium
Nut:
Bone
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 80 'Flying Finger' (H)
Neck pickup:
Ibanez Super 80 'Flying Finger' (H)
Controls:
2 volume / 2 tone / 3-way toggle / 2 Tri-sound switches
String gauge (factory):
.010–.046

Images

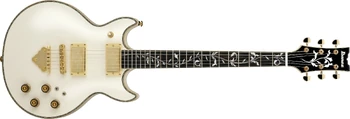

2016 AR620 IV
AR620 White Red copyright sprite
