2021 AR520H BK 4L 01
AR520H Black (more images) Red copyright sprite

The AR520H is an Artist series solid body electric guitar model introduced by Ibanez for 2021. It was produced in China as part of the Standard range.

The AR520H features an arched maple top with abalone purfling and cream binding on a chambered maple body with an ƒ-hole which is mated to a set-in maple neck with a smooth heel and a 22-fret fingerboard with binding and acrylic and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with individual volume and tone controls wired to Tri-sound switches which allow a range of tone options, a Gibraltar Performer Tune-o-matic style bridge, a Quik Change Classic tailpiece with integrated scalloped gold ornament, Sure Grip III knobs, and Ibanez die-cast tuners with half moon buttons.

The AR520HFM is a similar model with a flamed maple top.

The AR520H was discontinued after 2025.

Specifications[]

Related content: Artist series | Models-icon
Specifications for AR520H
Model name: AR520H
Year(s) offered: 2021–2025
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA & Canada
Made in: China
Price: MSRP: ¥ 105,000 pre-tax (2021–2022)[1][2] / US$1,033.32 (2022–2025)[3][4] / 799 (2024–2025)[5][6] / ¥ 115,000 pre-tax (2024–2025)[7][8] / US$1,143.54 (2025)[9] • SMAP: US$749.99 (2022–2025)[3][4] / US$829.99 (2025)[9]
Finish(es): Black (BK)
Body
Body type:
Chambered
Body material:
Maple w/ maple top & okoume back; abalone purfling & cream binding
Neck joint:
Set-in w/ smooth heel

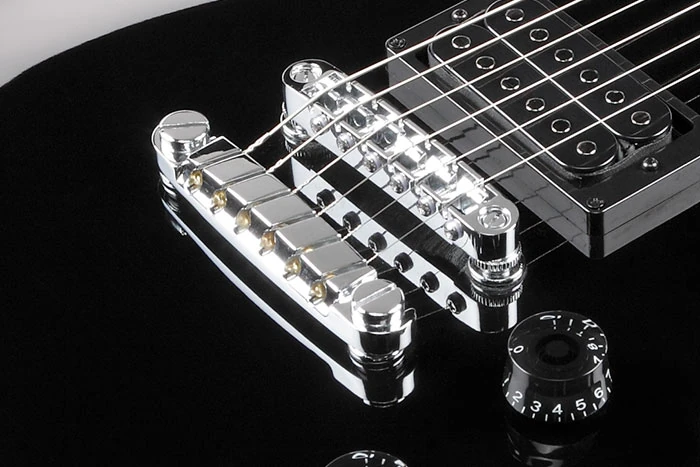

Bridge:
Gibraltar Performer fixed
Tailpiece:
Quik Change Classic
Strap buttons:
Metal button w/ black felt washer
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AR chambered
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Jatoba w/ binding
Fingerboard inlays:
Acrylic & abalone split block
Frets:
22 / medium nickel silver
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ case
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/ alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/ alnico
Controls:
Master volume / master tone / 3-way toggle pickup selector / two Tri-sound switches
Output jack:
¼" mono (side mounted)
Recommended case:
MM100C
Recommended gig bag:
IGB540

Images[]

Additional details

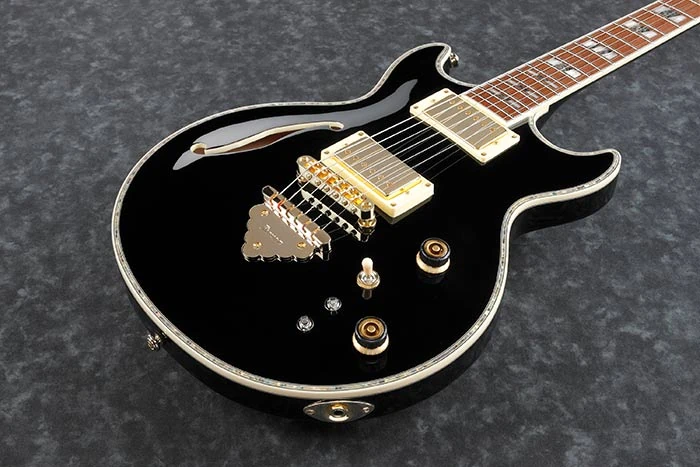

AR520H body
Front of body

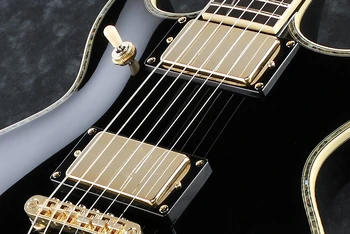

AR520H 58 pk
Super 58
AR520H ClassicTail piece
Quik Change Classic

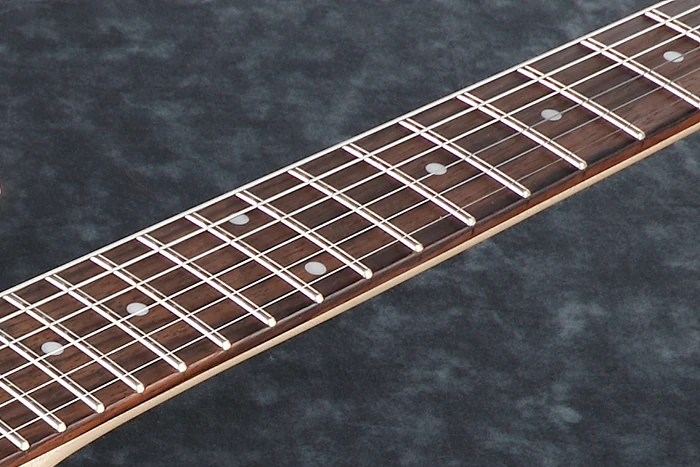

AR520H fret
Jatoba fretboard

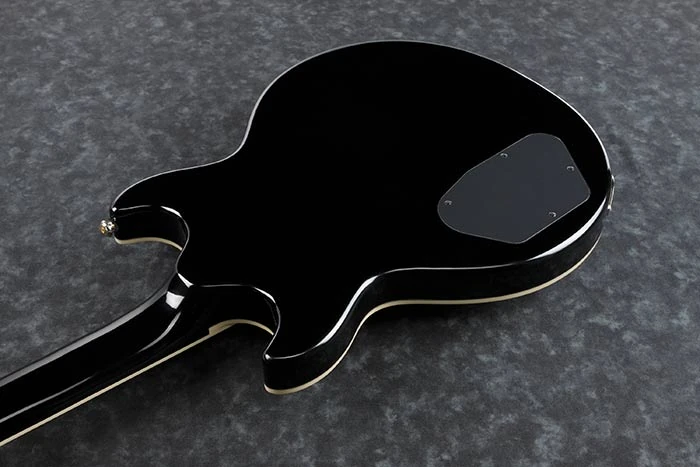

2021 AR520H BK 4L 01 back
Rear of body

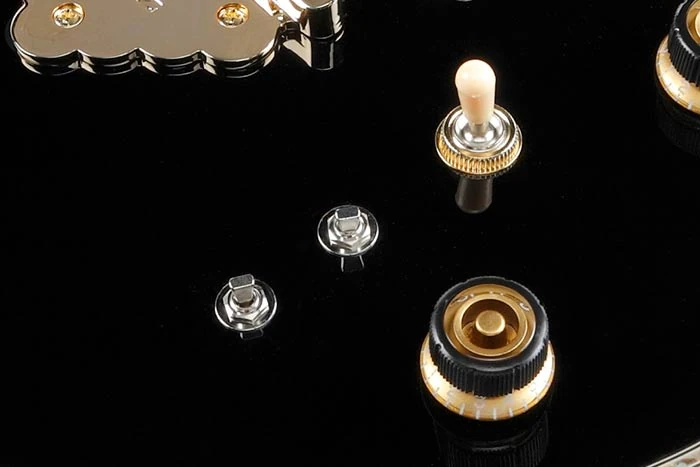

Controls VT3 tri-sound single-cavity
Controls layout
HH 3-way tri-sound
Pickup switching
Câblage Ibanez
Wiring diagram
