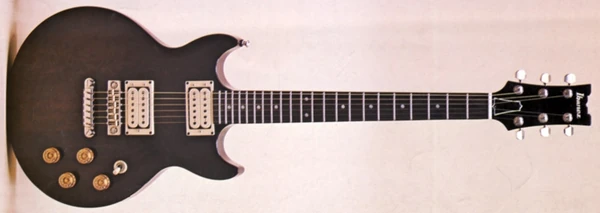

1979 AR50-Jr. BK.jpg
AR50 (Jr. series) Black (more images) Red copyright sprite.png

The AR50 (Jr. Series) is an Artist series solid body electric guitar model introduced by Ibanez in 1979. It was made in Japan.

The AR50 features an arched maple top on a double-cutaway mahogany body mated to a set-in three-piece maple neck with a 22-fret rosewood fingerboard with binding and pearloid dot position markers. Components include dual Ibanez Super 70 humbucking pickups with creme bobbins and no covers mounted in cream pickup rings with individual volume and tone controls, a Gibraltar Tune-O-Matic style bridge and Quik Change tailpiece, speed knobs and VelveTune machine heads.

It appears that this was a precursor to the AR50 which is similar but has the pickup selector relocated to the upper horn. The AR30, introduced in 1982, is a similar model with a slightly different control layout.

This version was apparently produced in early 1979, but gave way to the (non-Jr. Series) AR50 by mid year.

Specifications

Specifications for AR50 (Jr. Series)
Year(s) produced: 1979
Sold in: Europe / USA
Made in: Japan
Finish(es): Black (BK) / Crimson Wine (CW) [?]
Body
Body type:
Solid body
Body material:
Mahogany w/ maple top
Neck joint:
Set-in
Bridge:
Gibraltar tune-o-matic
Tailpiece:
Quik Change
Knob style:
Speed (Gold)
Hardware color:
Chrome
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
22 / medium
Nut:
Bone
Machine heads:
VelveTune
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 70 (H) uncovered
Neck pickup:
Ibanez Super 70 (H) uncovered
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

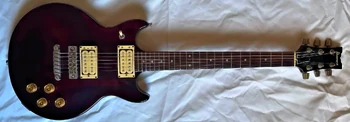

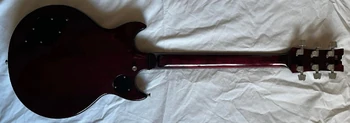

Crimson Wine
HH 3-way toggle.png
Pickup switching

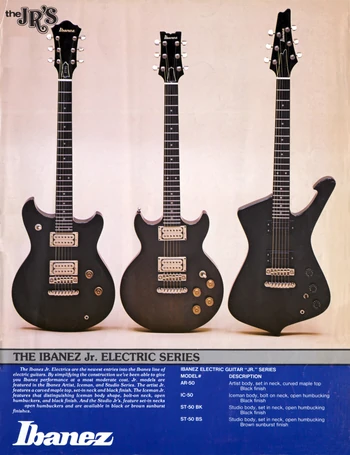

1979 Leaflet back.jpg
Dealer sheet
Wimage.jpg An image for this article is missing!
An image of the AR50 Crimson Wine (CW) is wanted for this article. You can help by finding, uploading and adding it!
