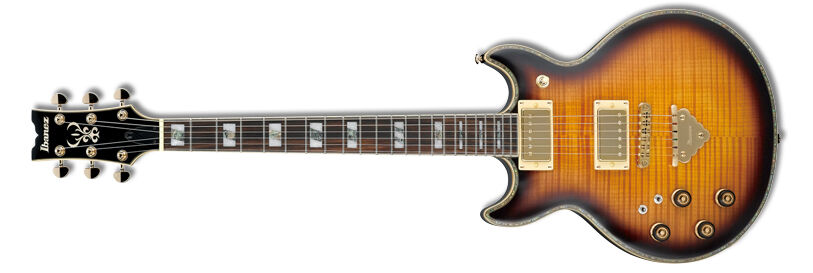

AR420L Violin Sunburst (more images)

The AR420L is a left handed Artist series guitar model introduced by Ibanez for 2015. It was produced in China.

The AR420L has all the basic features of an Artist model including a set-in maple neck and a bridge with tailpiece. It features a flamed maple top with abalone purfling and creme binding on a mahogany body mated to a maple neck with a 22-fret rosewood fingerboard with binding and split block position markers. Components include dual Ibanez Super 58 humbucking pickups with gold covers wired to Tri-sound switches which allow a range of tone options, an ART1 fixed bridge with Quik Change Classic tailpiece and gold Sure Grip III knobs.

The AR420 is a right handed version.

The AR420L was produced for just a few months in 2015.

Specifications[]

Specifications for AR420L
Model name: AR420L
Year(s) offered: 2015
Sold in: Worldwide (?)
Made in: China
Finish(es): Violin Sunburst (VLS)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top w/ abalone purfling & creme binding
Neck joint:
Set-in
Bridge:
ART1 fixed (10.5mm string spacing)
Tailpiece:
Quik Change Classic
Knob style:
Sure Grip III (gold)
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
Super 58 (H)
Neck pickup:
Super 58 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector / 2 mini-toggle Tri-sound switches
