AR420 VLS

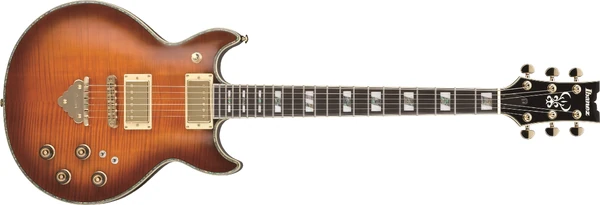

AR420 Violin Sunburst (more images) Red copyright sprite

The AR420 is an Artist series solid body electric guitar model introduced by Ibanez in late 2012. It is produced in China.

The AR420 features an arched flame maple top with abalone purfling and cream binding on a mahogany body mated to a set-in maple neck with a smooth heel and a 22-fret fingerboard with binding and split block position markers. Components include dual Ibanez Super 58 Custom humbucking pickups with individual volume and tone controls wired to Tri-sound switches which allow a range of tone options, an ART-1 Tune-o-matic style bridge, a Quik Change Classic tailpiece with scalloped gold ornament, and Ibanez die-cast tuners with half moon buttons.

The pickups were replaced with Super 58s in mid 2014. For 2015 the pearl & abalone fretboard inlays were replaced with acrylic & abalone. The rosewood fretboard was replaced with treated New Zealand pine in mid-2017.[1] For 2018 the fretboard material was again changed, this time to jatoba. For 2019 the mahogany body was replaced with okoume. For 2020 the bridge was changed to the Gibraltar Performer. For 2021 a new Transparent Blue Gradation finish was offered in the US market.

The AR420 is similar to the AR325 which was released concurrently. The main difference between the two models is the material used for the body — the AR325 has a figured bubinga top. The AR320 is a similar model without the abalone purfling. The AR620FM is a similar model with different pickups and vine fretboard inlays. The AR720FM is a visually similar model which has different pickups, a different bridge and an ebony fretboard. The AR3212 is a similar 12-string model. The AR520HFM is a similar model with a chambered body.

A left-handed version, the AR420L was offered in 2015.

Specifications[]

Related content: Artist series | Models-icon
Specifications for AR420
Model name: AR420
Year(s) offered: 2012–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: China
Finish(es): Blue Sunburst (BLS) 2012–2013 / Cherry Sunburst (CRS) 2013–2014 / Violin Sunburst (VLS) / Transparent Blue Gradation (TBG) 2021–2024; USA only
Body
Body type:
Solid body
Body material:
2012–2018: Mahogany w/ flamed maple top, abalone purfling & cream binding
2019–2024: Okoume w/ flamed maple top, abalone purfling & cream binding
Neck joint:
Set-in w/ smooth heel
Bridge:
2012–2019: ART-1 fixed
2020–2024: Gibraltar Performer fixed
Tailpiece:
Quik Change Classic
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
2012–2017: Rosewood w/ binding
2017: Treated New Zealand pine w/ binding
2018–2024: Jatoba w/ binding
Fingerboard inlays:
2013–2014: Pearl & abalone split block
2015–2024: Acrylic & abalone split block
Frets:
22 / medium nickel silver
Nut:
Ivory plastic
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
2012–2014: Ibanez Super 58 Custom bridge (H)
2014–2024: Ibanez Super 58 bridge (H) passive/ alnico
Neck pickup:
2012–2014: Ibanez Super 58 Custom neck (H)
2014–2024: Ibanez Super 58 neck (H) passive/ alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector / two Tri-sound switches
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other available details

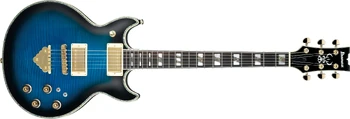

AR420 BLS
Blue Sunburst

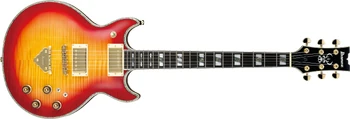

AR420 CRS
Cherry Sunburst

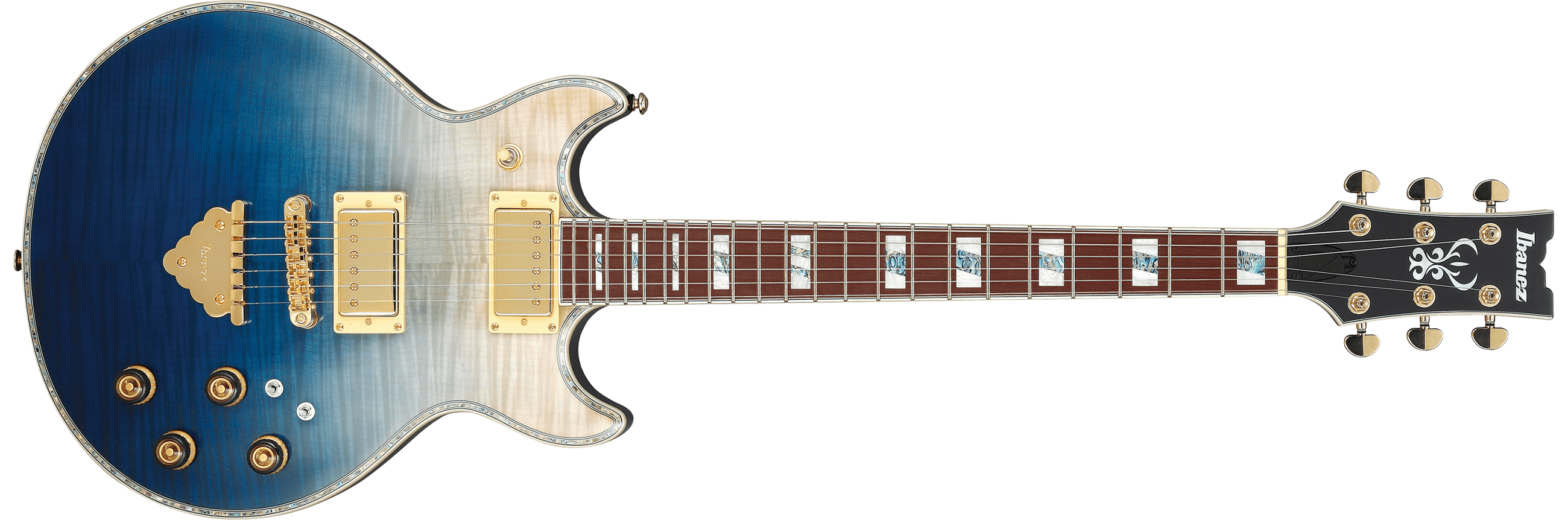

2021 AR420 TBG 4L 04
Transparent Blue Gradation
Additional details
2021 AR420 VLS 4L 04 back
Rear of body
HH 3-way tri-sound
Pickup switching
Controls 2V2T 3-way tri-sound
Controls layout

Sources[]

  1. AR420 product page, Ibanez USA, archived November 2017
  • AR420 product page, Ibanez USA, archived January 2013
  • 2013 USA catalog (p. 34)
  • AR420 product page, Ibanez USA, archived May 2016
  • 2017 Europe catalog (p. 27)
  • AR420 product page, Ibanez USA, archived January 2018
  • AR420 product page, Ibanez Asia & Africa, archived January 2019
  • AR420 product page, Ibanez Europe, archived January 2020
  • AR420 product page, Ibanez USA, archived January 2021
  • AR420 product page, Ibanez China, archived June 2022
  • AR420 product page, Ibanez Asia & Africa, archived January 2023
  • AR420 product page, Ibanez Americas & Oceania, archived January 2024
