2014 AR3MH BWN

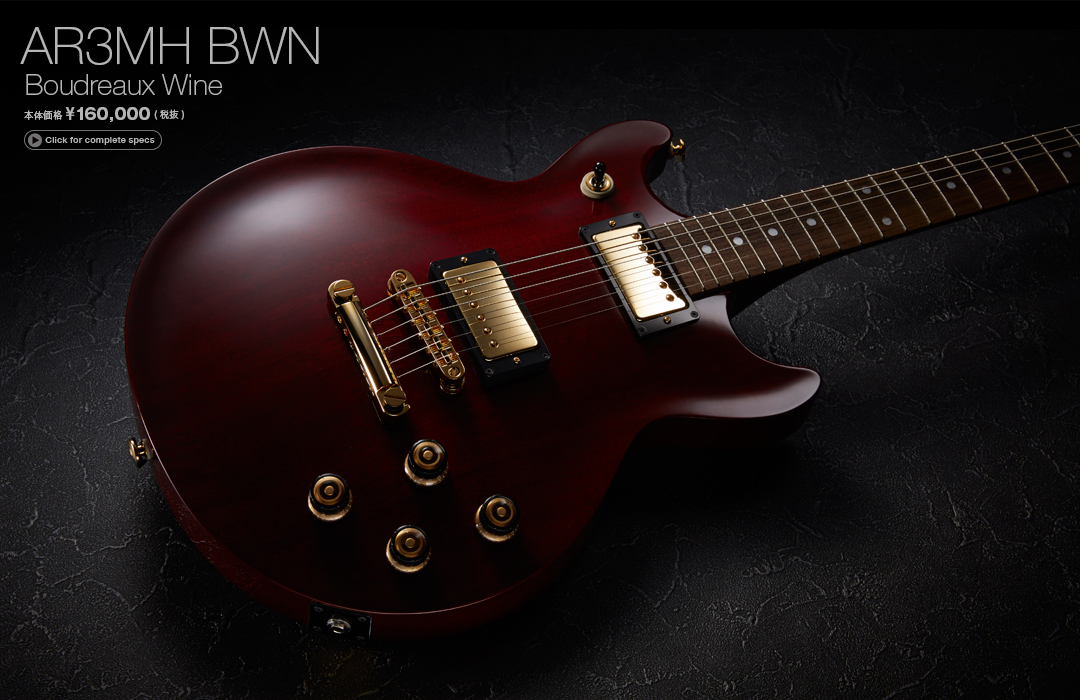

AR3MH Bordeaux Wine Red copyright sprite

The AR3MH is an Artist series guitar model introduced by Ibanez in 2014. It was produced in Japan by FujiGen as part of the Genesis Collection.

The AR3MH features a mahogany body mated to a set-in mahogany neck with a smooth heel and a 22-fret rosewood fingerboard with pearloid dot position markers. Components include a Gotoh fixed bridge and tailpiece, bone nut, Gotoh tuners, Sure Grip III knobs and dual Ibanez Super 58 humbucking pickups mounted in creme mounting rings with individual volume and tone controls.

The AR3AH is a similar model with an ash body. Other Artist models in the collection are the AR1FM (mahogany body with flamed maple top), the AR2 (painted mahogany body).

The AR3MH was offered only in 2014.

Specifications

Specifications for AR3MH
Year(s) produced: 2014
Sold in: USA
Made in: Japan
Finish(es): Bordeaux Wine (BWN)
Body
Body type:
Solid body
Body material:
Mahogany
Neck joint:
Set-in w/ smooth heel
Bridge:
Gotoh GE103B-T (a.k.a. Gotoh 510BN) fixed
Tailpiece:
Gotoh GE101Z
Hardware color:
Gold w/ gold knobs
Neck
Neck type:
AR
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid dot
Frets:
22 / medium
Nut:
Bone (43.5mm)
Machine heads:
Gotoh SG381 (non-locking)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H)
Neck pickup:
Ibanez Super 58 (H)
Controls:
2 volume / 2 tone / 3-way toggle
String gauge (factory):
.010–.046
