2014 AR3AH AV

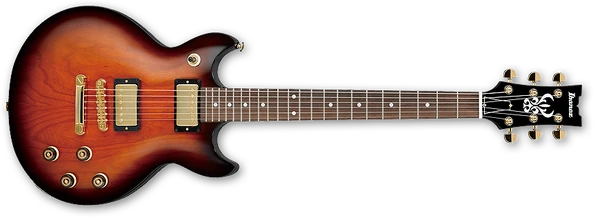

AR3AH Antique Violin (more images) Red copyright sprite

The AR3AH is an Artist series guitar model introduced by Ibanez in 2014. It was produced in Japan by FujiGen as part of the Genesis Collection. It was also referred to as the AR3A.

The AR3AH features an ash body mated to a set-in mahogany neck with a smooth heel and a 22-fret rosewood fingerboard with pearloid dot position markers. Components include a Gotoh fixed bridge and tailpiece, bone nut, Gotoh tuners, Sure Grip III knobs and dual Ibanez Super 58 humbucking pickups mounted in creme mounting rings with individual volume and tone controls.

The AR3MH is a similar model with a mahogany body. Other Artist models in the collection are the AR1FM (mahogany body with flamed maple top), the AR2 (painted mahogany body).

The AR3AH was offered only in 2014 and was sold only in Japan.

Specifications

Specifications for AR3AH
Year(s) produced: 2014
Sold in: USA
Made in: Japan
Finish(es): Antique Violin (AV)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
Set-in w/ smooth heel
Bridge:
Gotoh GE103B-T (a.k.a. Gotoh 510BN) fixed (10.4mm string spacing)
Tailpiece:
Gotoh GE101Z
Knob style:
Sure Grip III (gold)
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearloid block
Frets:
22 / medium
Nut:
Bone (43.5mm)
Machine heads:
Gotoh SG381 (non-locking)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H)
Neck pickup:
Ibanez Super 58 (H)
Controls:
2 volume / 2 tone / 3-way toggle
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)

Images

Additional finishes/ details

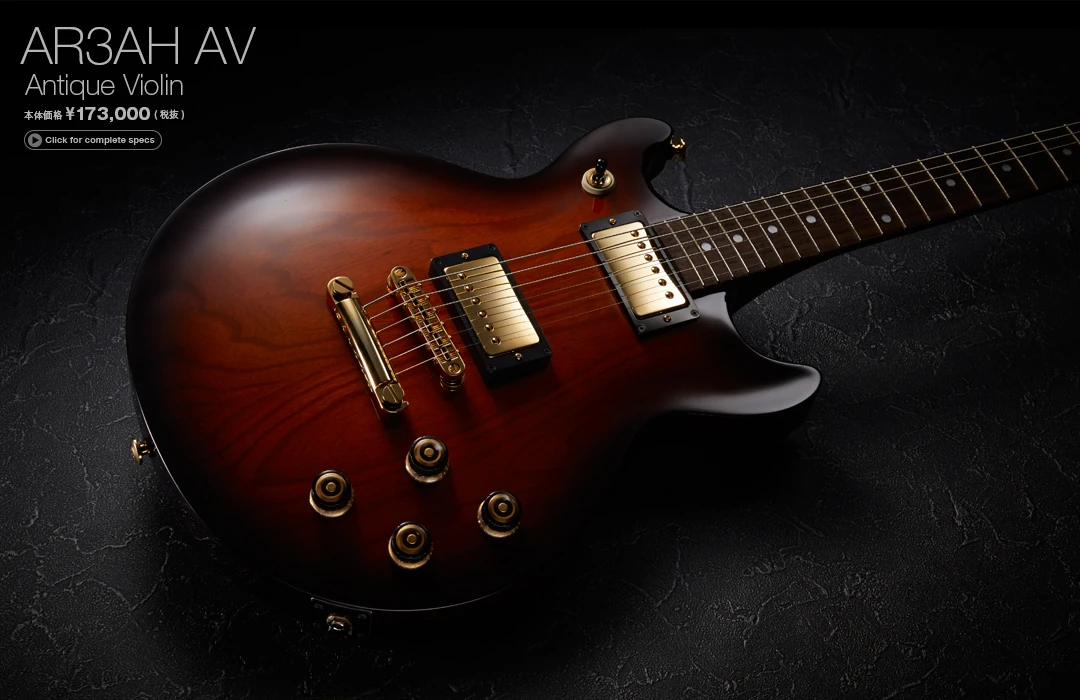

AR3AH AV promo
Antique Violin
HH 3-way toggle
Pickup switching
Controls 2V2T3 Artist
Controls layout
