For other models with the same or similar names, see AR350 (disambiguation).
1985 AR350 MS

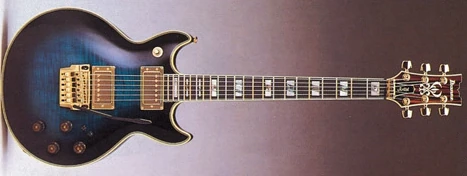

AR350 Marine Sunburst (more images) Red copyright sprite

The AR350 is an Artist series solid body electric guitar model introduced by Ibanez in 1985. It is one of very few Artist models with a tremolo bridge.

The AR350 features a double-cutaway mahogany body with an arched flame maple top with binding mated to a set-in maple neck with a 22-fret ebony fingerboard with pearl and abalone block position markers. The binding on the Fire Red and Marine Sunburst finishes was creme; Polar White finish examples had black binding. Components include dual Ibanez Super 58 humbucking pickups with individual volume and tone controls and Tri Sound coil-split switches, a Pro Rock'r double locking tremolo bridge with a locking nut, Sure Grip control knobs and Smooth Tuner machineheads.

The AR300 is a similar model with a fixed bridge.

The AR350 was discontinued after 1986 and replaced by the AR350T with the Edge tremolo.

Specifications[]

Related content: Artist series | Models-icon
Specifications for AR350
Model name: AR350
Year(s) offered: 1985
Sold in: USA
Made in: Japan
Finish(es): Fire Red (FR) / Marine Sunburst (MS) / Polar White (PW)
Body
Body type:
Solid body
Body material:
Mahogany w/ flame maple top w/ binding
Neck joint:
Set-in
Bridge:
Pro Rock'r tremolo
Knob style:
Sure Grip II
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony
Fingerboard inlays:
Pearl/ abalone block
Frets:
22 / medium
Nut:
Graphite nut w/ Top-Lok II
Machine heads:
Smooth Tuner
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H)
Neck pickup:
Ibanez Super 58 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector / 2 Tri-sound coil-split mini-toggles
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other available finishes

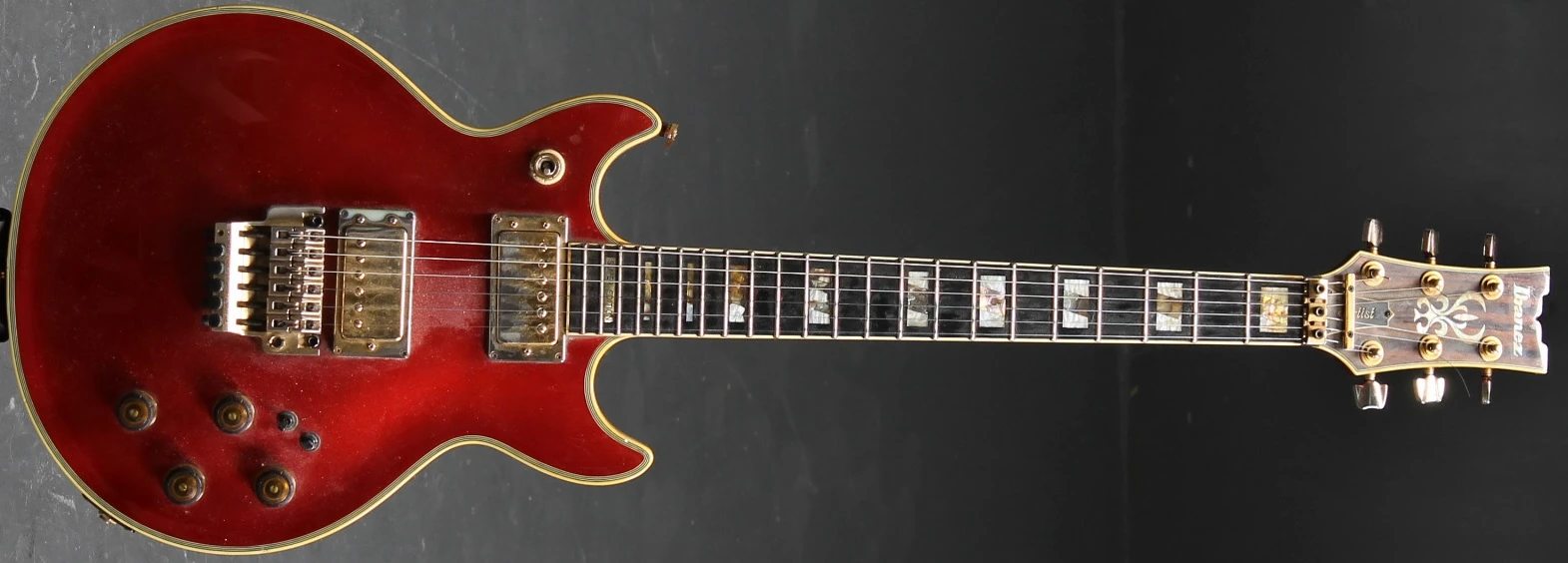

1985 AR350 FR
Fire Red

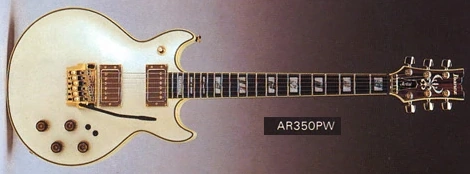

1985 AR350 PW
Polar White
Additional details
HH 3-way tri-sound
Pickup switching diagram
Controls 2V2T 3-way tri-sound
Control layout
