For a later AR305 model, see AR305 (2007).

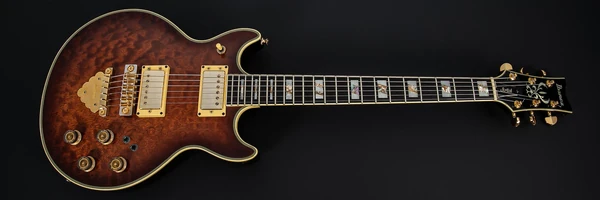

AR305 Antique Violin
AR305 Antique Violin (more images) Red copyright sprite

The AR305 is an Artist series solid body electric guitar model introduced by Ibanez in 1982. It was made in Japan.

The AR305 features a double-cutaway mahogany body with a bound dish carved burl mahogany top mated to a set-in three-piece maple neck with a 22-fret bound ebony fingerboard with pearl and abalone block position markers. Components include dual Ibanez humbucking pickups with individual volume and tone controls and a fixed bridge and tailpiece. Each pickup has a Tri-sound switch with three pickup settings: humbucker, single-coil or reverse phase.

The AR300 is a similar model with a flame maple top. The AR105 is a related model with dot fretboard markers and without the Tri-sound switching. The RAR300BM is essentially a reissue of this guitar from 1996.

The AR305 was discontinued after 1987.

Specifications[]

Related content: Artist series | Models-icon
Specifications for AR305
Model name: AR305
Year(s) offered: 1982–1987
Sold in: Worldwide
Made in: Japan
Finish(es): Antique Violin (AV)
Body
Body type:
Solid body
Body material:
Mahogany w/ burl mahogany top
Neck joint:
Set-in w/ smooth heel
Bridge:
1982: Gibraltar (w/ sustain block)
1983–1987: Gibraltar II (w/ sustain block)
Tailpiece:
1982: Gibraltar w/ plate
1983–1984: Quik Change II w/ plate
1985–1987: Quik Change II
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece rock maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Pearloid/ Mexican abalone block
Frets:
22 / medium
Nut:
Half-bone/ half-brass
Machine heads:
1982: Ibanez VelveTune
1983–1984: Ibanez VelveTune II
1985–1987: Ibanez Smooth Tuner II
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H)
Neck pickup:
Ibanez Super 58 (H)
Controls:
2 volume / 2 tone / 2 Tri-sound switches / 3-way toggle
Additional details

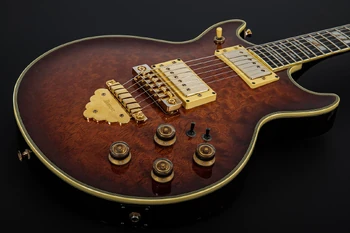

AR305 Antique Violin-Body
Front of body

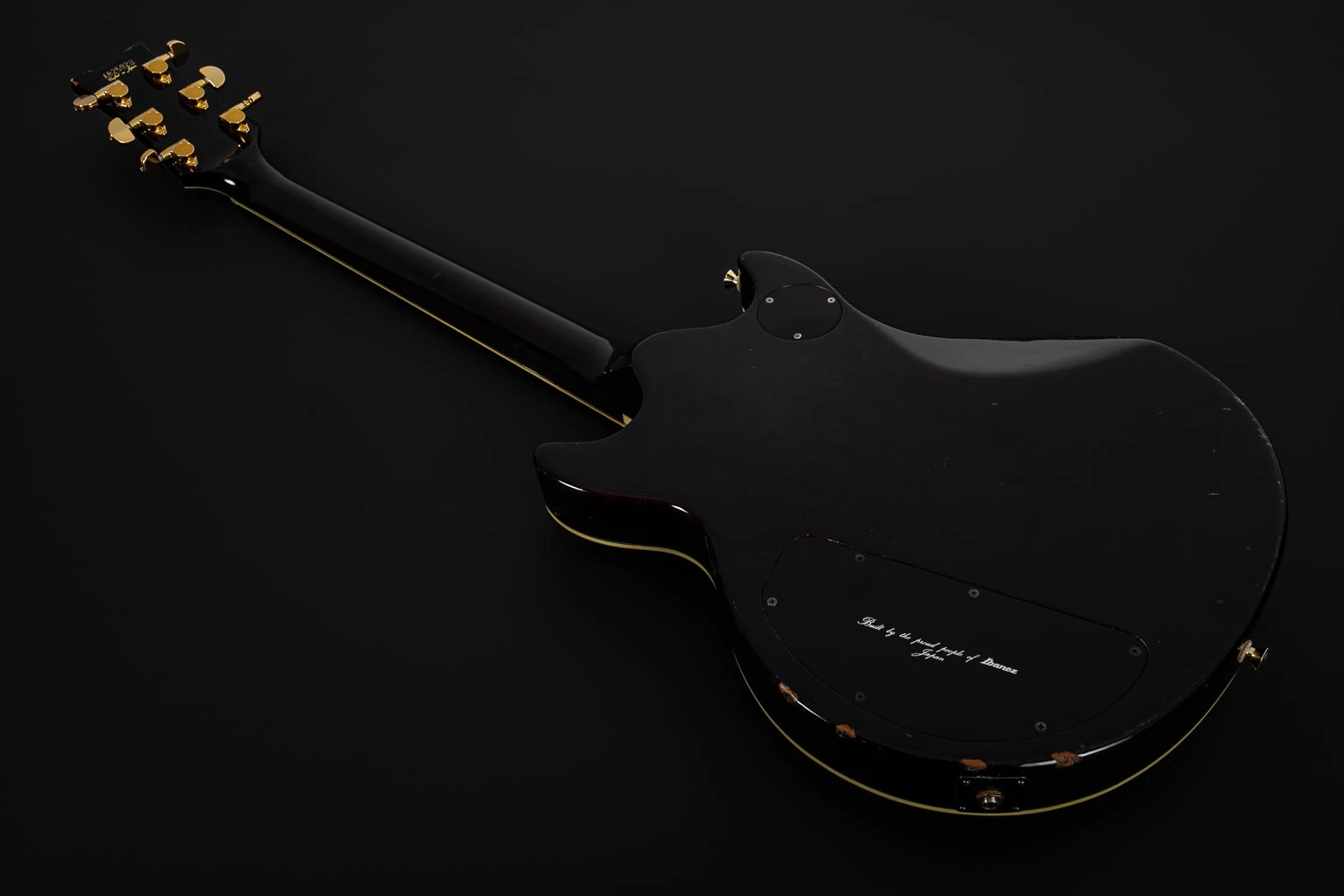

AR305 Antique Violin-Rear
Rear of body

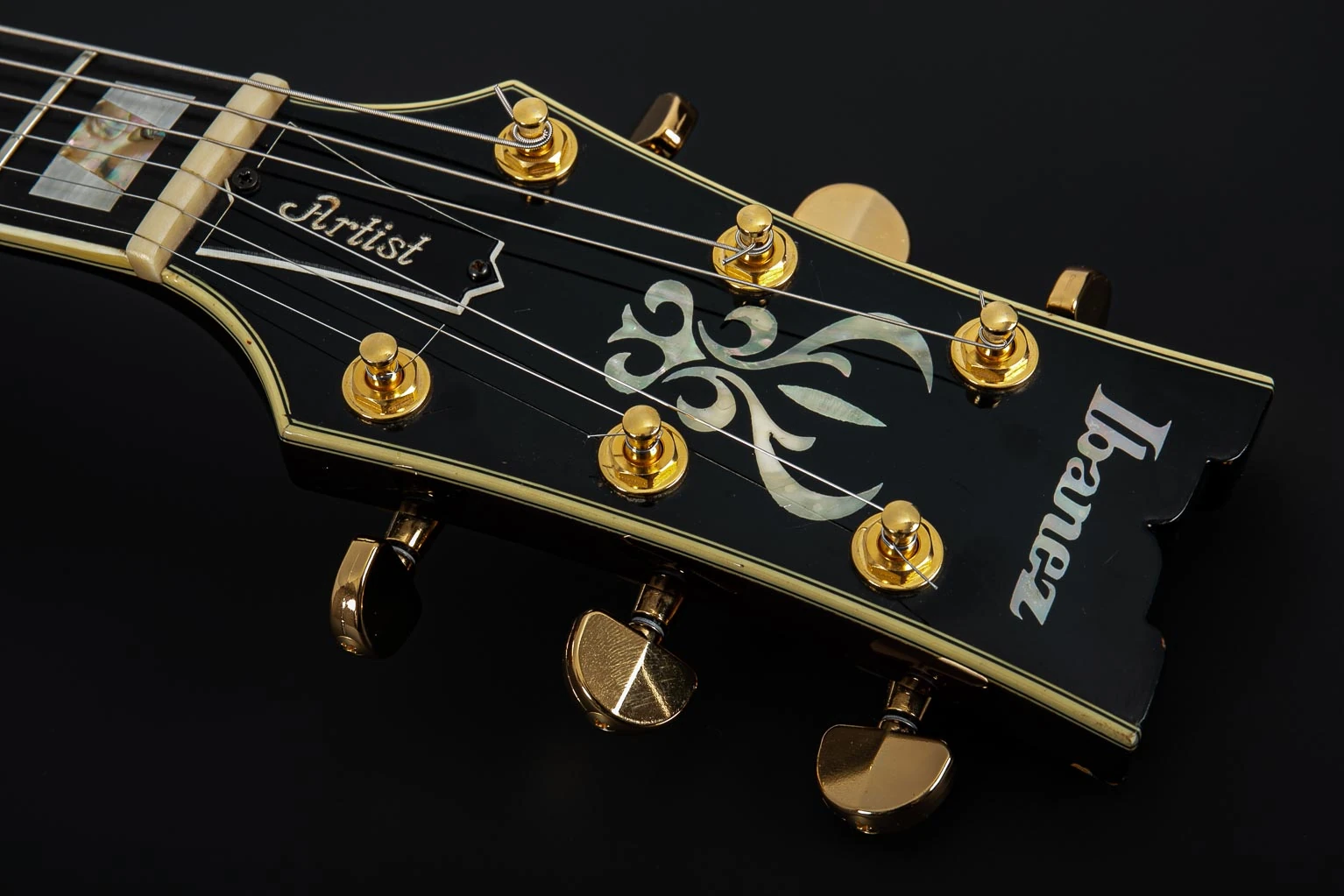

AR305 Antique Violin-Headstock
Headstock

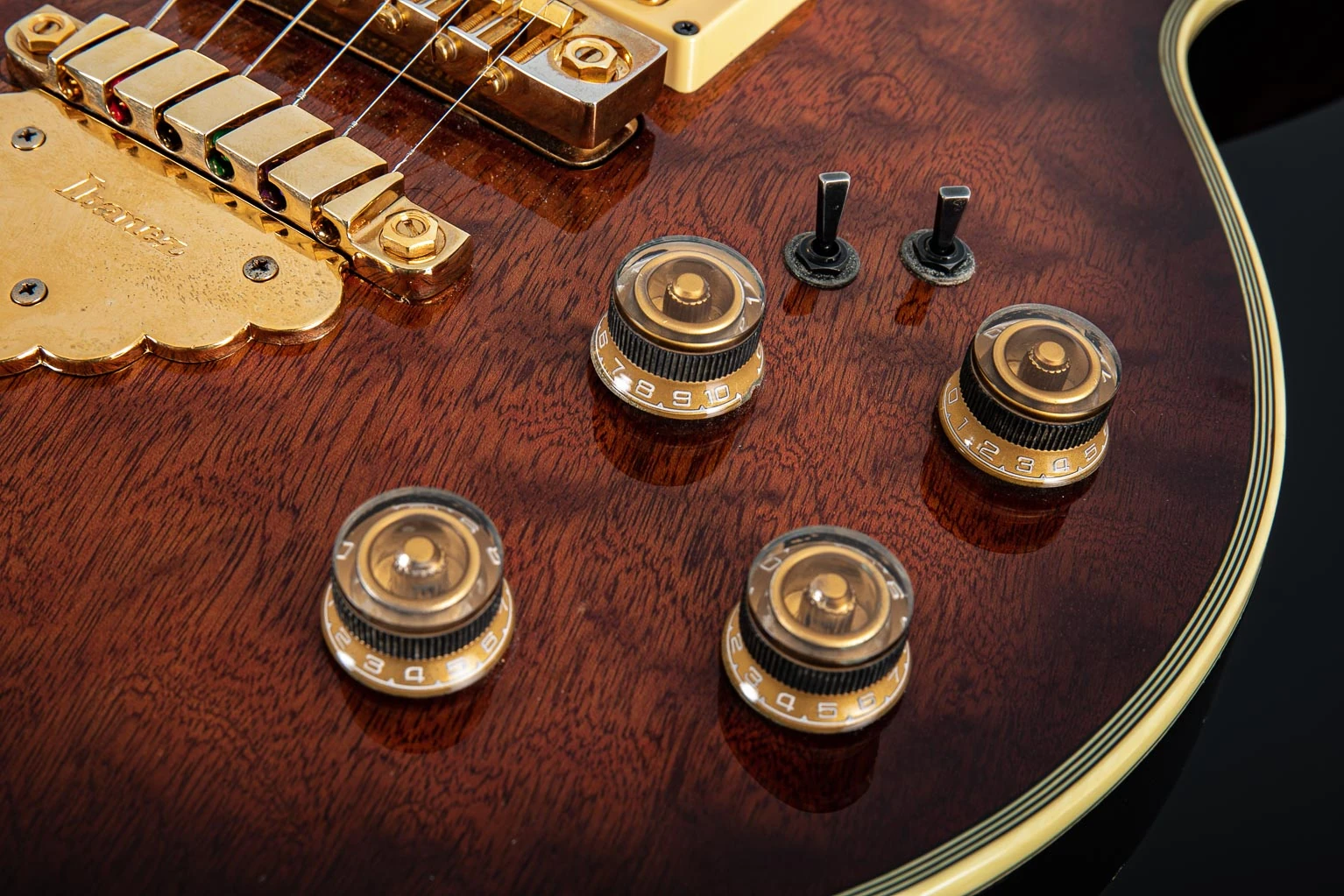

AR305 Antique Violin-Controls
Controls
