AR300 (2007)

For other AR300 versions, see AR300 (disambiguation).

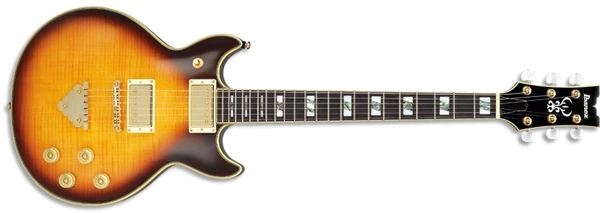

AR300 Brown Sunburst

The AR300 is an Artist series solid body electric guitar model introduced by Ibanez in 2007. It was produced by Cort in South Korea.

The AR300 features a flamed maple top with cream binding on a mahogany body mated to a set-in maple neck with a 22-fret rosewood fingerboard with binding and split block position markers. Components include a Tune-o-matic style fixed bridge and Quik Change tailpiece and dual Ibanez Super 58 humbucking pickups with individual volume and tone controls.

The AR305 is a similar model with a burl mahogany top.

This AR300 essentially replaced an earlier version with chrome hardware and was subsequently replaced by the AR300RE for 2008.

Specifications

Related content: Artist series |

Specifications for AR300 (2007)

Model name: AR300 (2007) Year(s) offered: 2007 Sold in: Worldwide Made in: South Korea Finish(es): Brown Sunburst (BS)
Body Body type: Solid body Body material: Mahogany w/ flamed maple top w/ cream binding Neck joint: Set-in Bridge: Full Tune III fixed Tailpiece: Quik Change Classic Knob style: Speed (gold) Hardware color: Gold	Neck Neck type: AR Neck material: 3-piece maple Scale length: 628mm/ 24¾" Fingerboard material: Rosewood w/ cream binding Fingerboard inlays: Abalone & acrylic split block Frets: 22 / large Nut: Cream plastic (43mm) Machine heads: Ibanez die-cast	Electronics/ Strings Pickup configuration: HH Bridge pickup: Ibanez Super 58 (H) Neck pickup: Ibanez Super 58 (H) Controls: Two volumes / two tones / 3-way toggle pickup selector Output jack: ¼" mono Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)

About this table

Images

Additional details

Pickup switching diagram

Control layout

Sources

• 2007 World catalog (page 33)
• AR300 product page, Ibanez USA, archived May 2007
