For other AR300 versions, see AR300 (disambiguation).

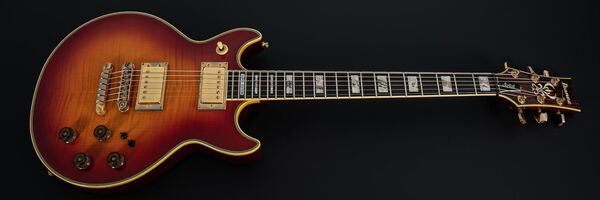

1986 AR300 AV
AR300 Antique Violin (more images) Red copyright sprite

The AR300 is an Artist series solid body electric guitar model introduced by Ibanez in 1979. It was made in Japan.

The AR300 features a bound dish carved flame maple top on a double-cutaway mahogany body mated to a set-in three-piece maple neck with a 22-fret ebony fingerboard with binding and pearl and abalone split block position markers. Components include dual Ibanez humbucking pickups with individual volume and tone controls and a fixed bridge and tailpiece. Each pickup has a Tri-sound switch with three pickup settings: humbucker, single-coil or reverse phase.

The AR300L is a left-handed version. The AR305 is a similar model with a burl mahogany top. The AR350T is a related model with a double locking tremolo bridge. The AR400 is a similar model with a 2-band Active Tone system. The AR200 is a related model with a rosewood fretboard with dot inlays and with a single tri-sound switch.

The AR300 was discontinued after 1987, but another model with the same name was introduced in 1990.

Specifications

Specifications for AR300 (1979–1987)
Model name: AR300 (1979–1987)
Year(s) produced: 1979–1987
Sold in: Worldwide
Made in: Japan
Finish(es): Antique Violin (AV) / Black (BK) 1979, 1984 / Cherry Sunburst (CS) 1980–1987 / Gold (GL) 1983
Body
Body type:
Solid body
Body material:
Mahogany w/ 2-piece bookmatched flame maple top w/ binding
BK finish: Mahogany w/ binding
Neck joint:
Set-in w/ smooth heel
Bridge:
1979–1982: Gibraltar (w/ sustain block)
1983–1987: Gibraltar II (w/ sustain block)
Tailpiece:
1979–1982: Gibraltar w/ plate
1983–1984: Quik Change II w/ plate
1985–1987: Quik Change II
Knob style:
Sure Grip II
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece rock maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Pearloid/ Mexican abalone split block[1]
Frets:
22 / medium
Nut:
Half-bone/ half-brass
Machine heads:
1979–1982: Ibanez VelveTune
1983–1984: Ibanez VelveTune II
1985–1987: Ibanez Smooth Tuner II
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
1979–1980: Ibanez Super 80 (H)
1980–1987 Ibanez Super 58 (H)
Neck pickup:
1979–1980: Ibanez Super 80 (H)
1980–1987 Ibanez Super 58 (H)
Controls:
2 volume / 2 tone / 3-way toggle / 2 Tri-sound switches
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

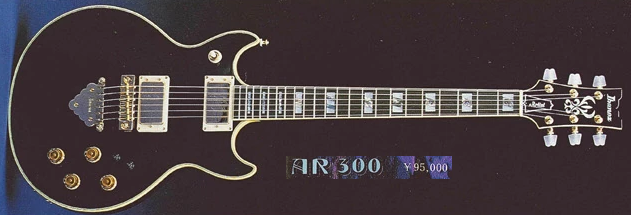

1979 AR300 BK
Black

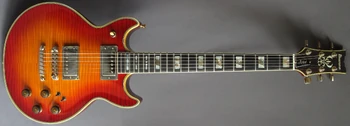

1982 AR300 CS
Cherry Sunburst
1983 AR300 GL
Gold
HH 3-way tri-sound
Pickup switching diagram
Controls 2V2T 3-way tri-sound
Control layout

Sources

  1. Artist series description, 1980 Ibanez catalog, page 4
