1981 AR300L AV

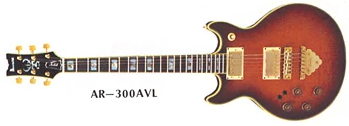

AR300L Antique Violin Red copyright sprite

The AR300L is a left-handed Artist series solid body electric guitar model introduced by Ibanez in 1981. It was made in Japan.

The AR300 features a double-cutaway mahogany body with a bound dish carved flame maple top mated to a set-in three-piece maple neck with a 22-fret bound ebony fingerboard with pearl and abalone block position markers. Components include dual Ibanez humbucking pickups with individual volume and tone controls and a fixed bridge and tailpiece. Each pickup has a Tri-sound switch with three pickup settings: humbucker, single-coil or reverse phase.

The AR300 is a left-handed version.

The AR300L appeared only in the 1981 catalog, though it may have been available beyond that year.

Specifications

Specifications for AR300L
Model name: AR300L
Year(s) produced: 1981
Sold in: Worldwide
Made in: Japan
Finish(es): AV (Antique Violin)
Body
Body type:
Solid body
Body material:
Mahogany w/ 2-piece bookmatched flame maple top w/ binding
Neck joint:
Set-in w/ smooth heel
Bridge:
Gibraltar (w/ sustain block)
Tailpiece:
Gibraltar w/ plate
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Pearloid/ Abalone block
Frets:
22 / medium
Nut:
Half-bone/ half-brass
Machine heads:
Ibanez VelveTune
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H)
Neck pickup:
Ibanez Super 58 (H)
Controls:
2 volume / 2 tone / 2 Tri-sound switches / 3-way toggle
