For other AR200 versions, see AR200 (disambiguation).

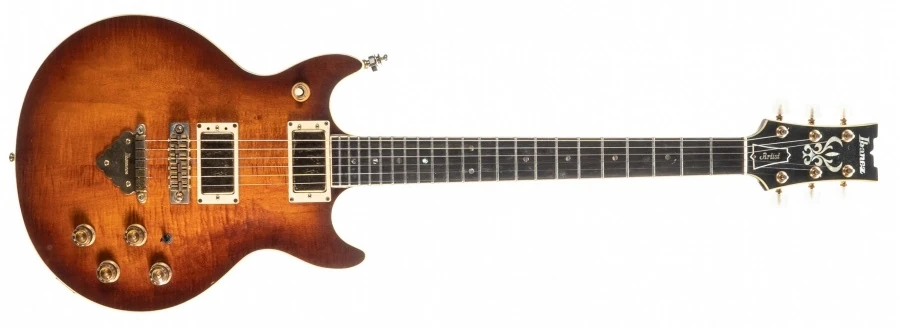

1979 AR200 AV
AR200 Antique Violin (more images) Red copyright sprite

The AR200 is an Artist series solid body electric guitar model introduced by Ibanez in 1979. It was made in Japan by FujiGen and replaced the 24-fret 2618.

The AR200 features an arched maple top on a double-cutaway mahogany body mated to a set-in three-piece maple neck with a 22-fret ebony fingerboard with binding and abalone dot position markers. Components include dual Ibanez Super 80 humbucking pickups mounted in creme pickup rings with individual volume and tone controls and a Tri-sound switch, a Gibraltar Tune-O-Matic style bridge and Quik Change tailpiece with an ornamental scalloped plate, rubberized Sure Grip control knobs and VelveTune machine heads.

The AR200L is a left-handed version. The AR100 is a similar model with different pickups and without the Tri-sound switch. The AR300 is a related model with a second Tri-sound switch and with split block fretboard inlays. The AR250 is a related model with an ash body with a German carve top.

The AR200 was discontinued after 1980.

Specifications[]

Related content: Artist series | Models-icon
Specifications for AR200 (1979–1980)
Model name: AR200 (1979–1980)
Year(s) offered: 1979–1980
Sold in: Worldwide
Made in: Japan
Finish(es): Antique Violin (AV) / Black (BK) 1979
Body
Body type:
Solid body
Body material:
Mahogany w/ maple top
Neck joint:
Set-in w/ smooth heel
Bridge:
Gibraltar (w/ sustain block)
Tailpiece:
Quik Change w/ "cloud" ornament
Knob style:
Sure Grip
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece rock maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Abalone dot
Frets:
22 / medium nickel silver
Nut:
Bone
Machine heads:
VelveTune
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 80 (H) brass covered
Neck pickup:
Ibanez Super 80 (H) brass covered
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

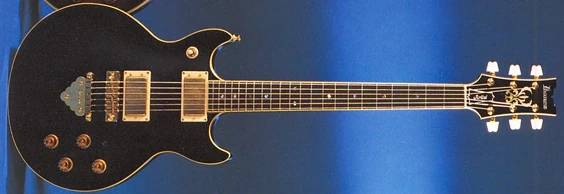

1979 AR200 BK
Black
1979 AR200 controls
Control layout
HH-3-way single-tri-sound
Pickup switching
Controls 2V2T3 single-Tri-sound Artist
Controls layout
