AR200FM HS

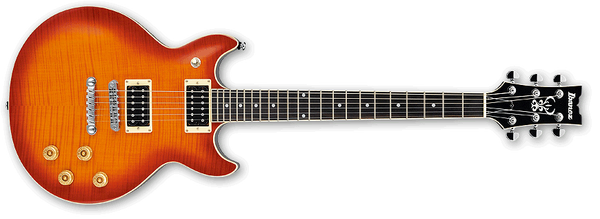

AR200FM Honey Sunburst Red copyright sprite

The AR200FM is an Artist series solid body electric guitar model introduced by Ibanez in 2009. It was produced in China.

The AR200FM features a flamed maple top with cream binding on a mahogany body mated to a set-in maple neck with a 22-fret rosewood fingerboard with dot position markers. Components include dual Ibanez Artcore humbucking pickups with individual volume and tone controls and an Artcore fixed bridge with a Quik Change III tailpiece.

The AR200 model from a few years previous was somewhat similar but lacked the flamed maple top.

The AR200FM was discontinued after 2010.

Specifications

Specifications for AR200FM
Year(s) produced: 2009–2010
Sold in: Asia / Europe / North & South America and Oceania
Made in: China
Finish(es): Honey Sunburst (HS)
Body
Body type:
Solid body
Body material:
Mahogany w/ flamed maple top w/ cream binding
Neck joint:
Set-in
Bridge:
ART1 fixed
Tailpiece:
Quik Change III
Knob style:
Speed knob (gold)
Hardware color:
Chrome
Neck
Neck type:
AR
Neck material:
3-piece maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast, half moon button
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2-S (H)
Neck pickup:
Ibanez ACH1-S (H)
Controls:
2 volume / 2 tone / 3-way toggle

Images

Additional details
HH 3-way toggle
Pickup switching diagram
Controls 2V2T3 Artist
Control layout
