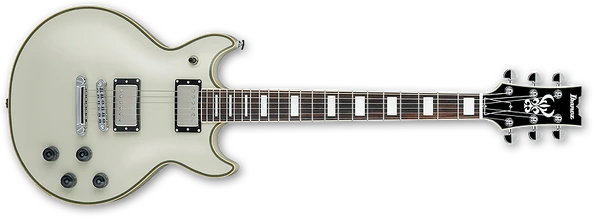

2014 AR2 AWH

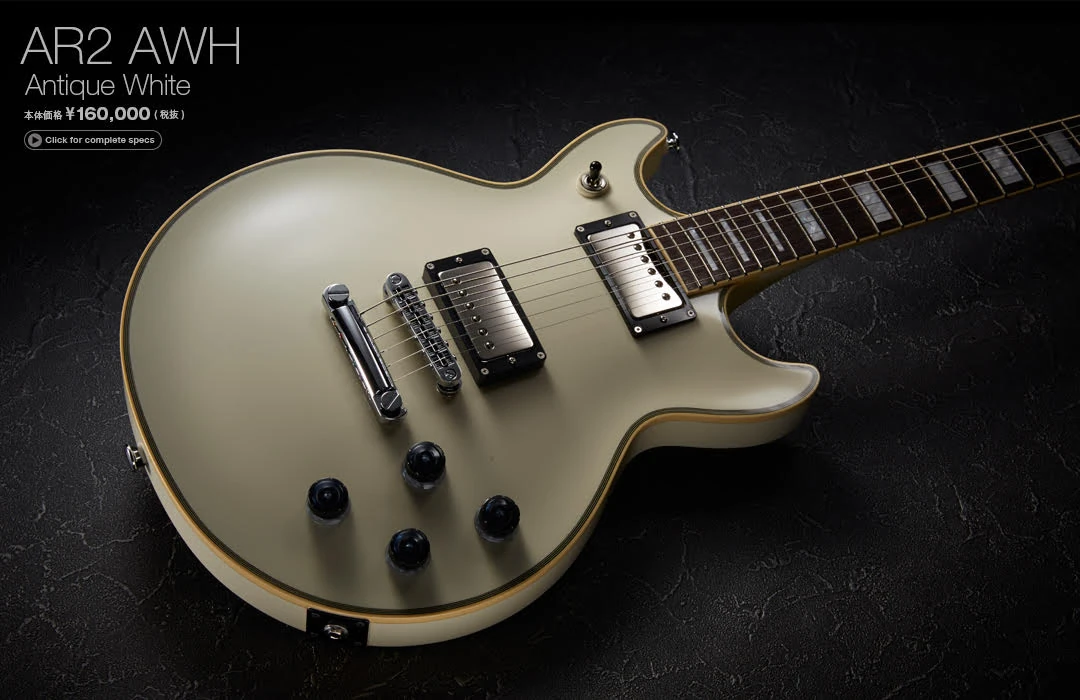

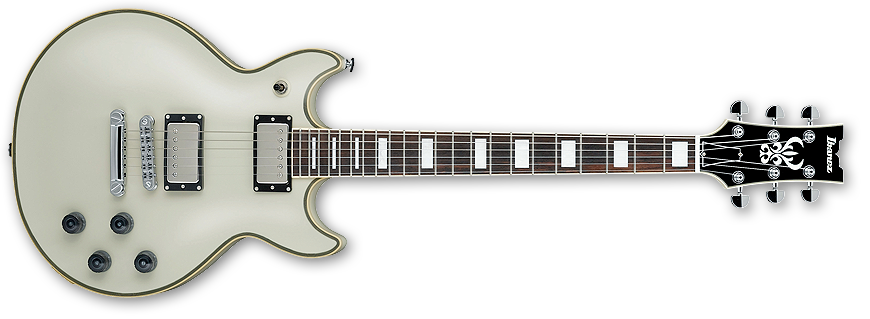

AR2 Antique White (more images) Red copyright sprite

The AR2 is an Artist series solid body electric guitar model introduced by Ibanez in 2014. It was produced in Japan by FujiGen as part of the Genesis Collection.

The AR2 features a mahogany body with purfling and creme binding mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with binding and pearloid block position markers. Components include a Gotoh fixed bridge and tailpiece, bone nut, Gotoh tuners, Sure Grip III knobs and dual Ibanez Super 58 humbucking pickups mounted in creme mounting rings with individual volume and tone controls.

The version with the Gold Top finish was also referred to as the AR2GT. Other Artist models in the collection are the AR1FM (with flamed maple top), the AR3AH (ash body) and the AR3MH (natural finish mahogany body).

The AR2 was discontinued after 2016.

Specifications

Specifications for AR2
Model name: AR2 / AR2GT
Year(s) produced: 2014–2016
Sold in: USA
Made in: Japan
Finish(es): Antique White (AWH) / Black (BK) / Gold Top (GT)
Body
Body type:
Solid body
Body material:
Mahogany w/ cream binding
Neck joint:
Set-in w/ smooth heel
Bridge:
Gotoh GE103B-T (a.k.a. Gotoh 510BN) fixed
Tailpiece:
Gotoh GE101Z
Knob style:
Sure Grip III (gold)
Hardware color:
Chrome
Neck
Neck type:
AR
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Pearloid block
Frets:
22 / medium
Nut:
Bone (43.5mm)
Machine heads:
Gotoh SG381 (non-locking)
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H)
Neck pickup:
Ibanez Super 58 (H)
Controls:
2 volume / 2 tone / 3-way toggle
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

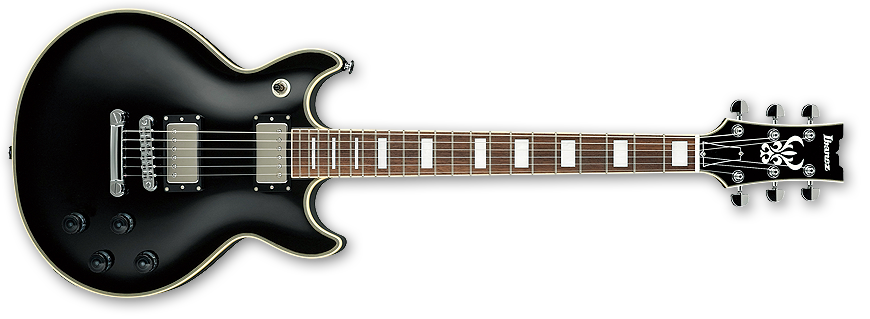

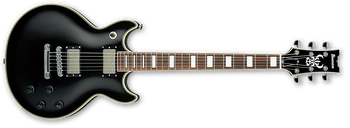

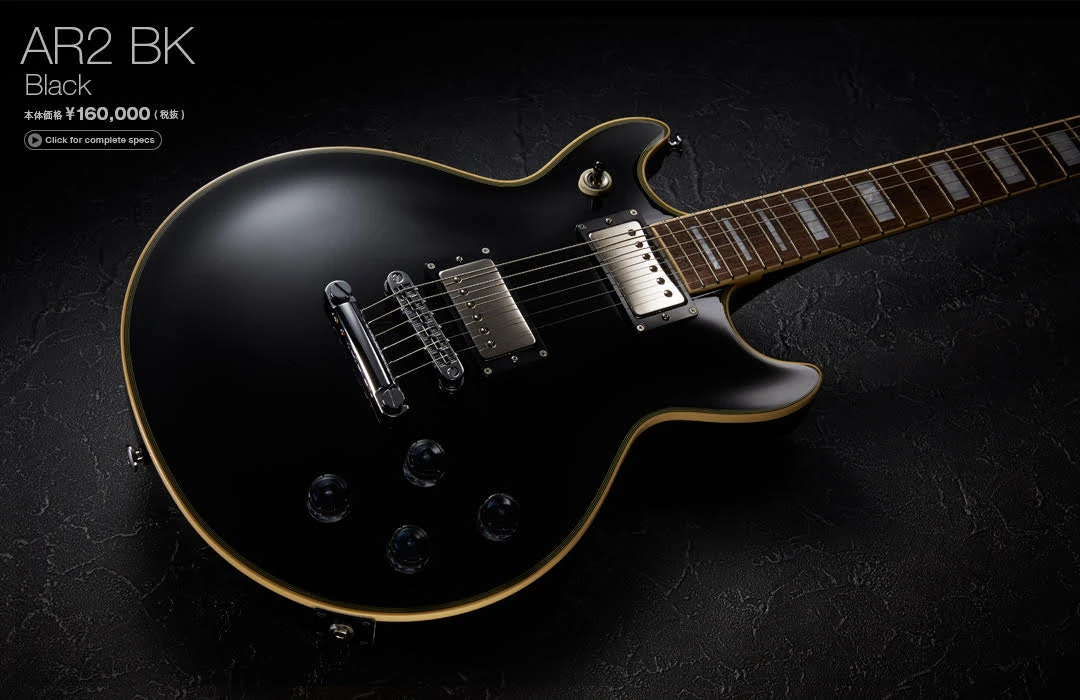

2014 AR2 BK
Black

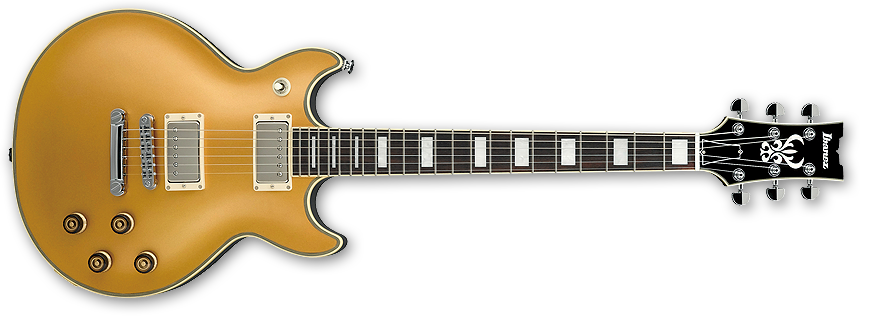

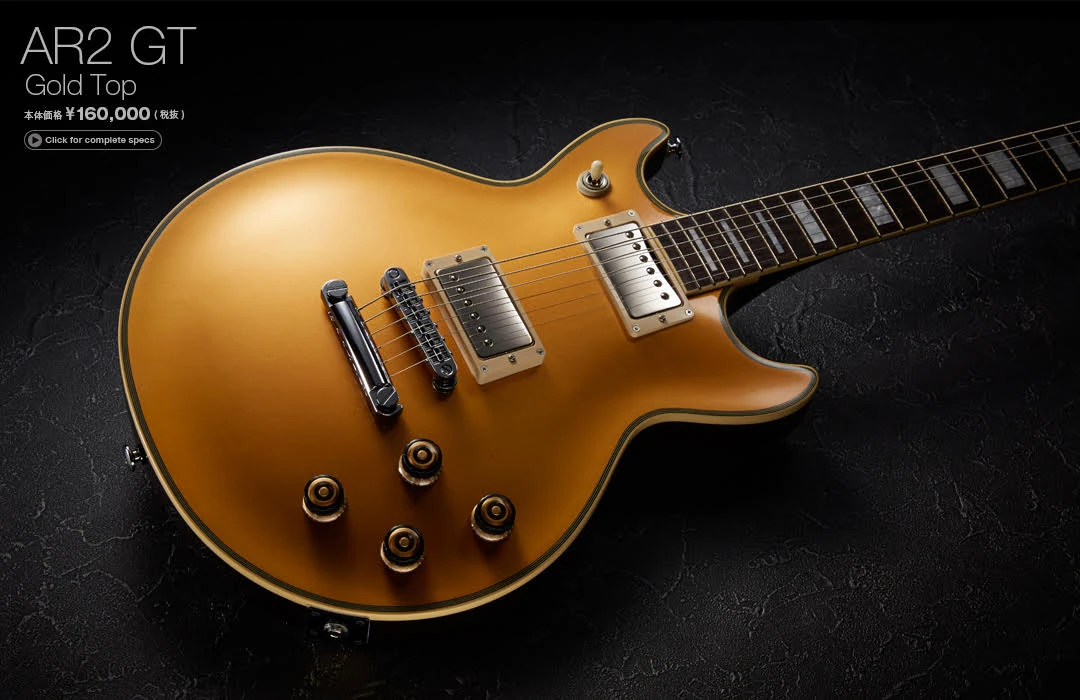

2014 AR2 GT
Gold Top
HH 3-way toggle
Pickup switching diagram
Controls 2V2T3 Artist
Control layout
