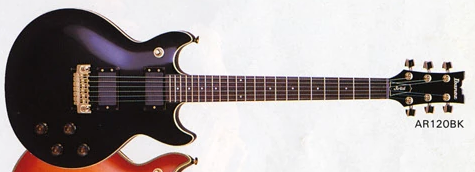

1986 AR120 BK.png
AR120 Black (more images) Red copyright sprite.png

The AR120 is an Artist series solid body electric guitar model introduced by Ibanez in 1985.

The AR120 features a double-cutaway arched-top basswood body mated to a set-in maple neck with a 22-fret rosewood fingerboard with small dot position markers. Components include dual Ibanez IBZ humbucking pickups with individual volume and tone controls with push-push Duo Sound coil-split switches on each volume and a fixed bridge-tailpiece combo.

The basswood body makes this one of the lighter weight Artist models that have been produced.

The AR120 was discontinued after 1987.

Specifications

Specifications for AR120
Model name: AR120
Year(s) produced: 1985–1987
Sold in: USA
Made in: Japan
Finish(es): BK (Black) / RD (Red) 1985–1986
Body
Body type:
Solid body
Body material:
Basswood w/ binding
Neck joint:
Set-in
Bridge:
Short Stop bridge-tailpiece
Hardware color:
Gold
Neck
Neck type:
AR
Neck material:
3-piece maple
Fingerboard material:
Rosewood
Fingerboard inlays:
Small dot
Frets:
22 / medium
Machine heads:
Smooth Tuner
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez IBZ (H)
Neck pickup:
Ibanez IBZ (H)
Controls:
2 volume (each w/ push-push Duo Sound coil-split switch) / 2 tone / 3-way toggle

Images

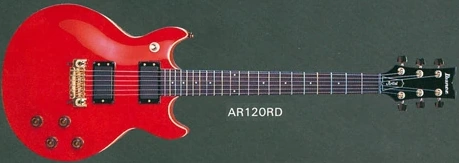

1985 AR120 RD.png
AR120 Red Red copyright sprite.png
