APEX200
APEX200 (more images) Red copyright sprite

The APEX200 is a seven string solid body electric guitar model introduced by Ibanez in 2014. It is a signature model of American guitarist James "Munky" Shaffer, known for his work with the nu metal band Korn, and a part of Munky's APEX series. It was made in Japan by FujiGen.

A more affordable version, the APEX20 was released the same year. The design of both models is inspired by a Universe series guitar which Shaffer used in the early days of Korn.

The APEX200 has an RG series alder body bolted to a maple and wenge neck with a 24-fret rosewood fingerboard with a compass design inlaid at the 12th fret. Components include DiMarzio Blaze pickups with a humbucker at the bridge and a single-coil at the neck, a Lo-Pro Edge 7 double locking tremolo bridge with the U-Bar which is unique to the Korn signature models and Gotoh tuning machines. It sports a dark gray matte finish with a natural headstock, black pickguard and red pickups.

For 2019 the fretboard material was changed from rosewood to ebony.

The APEX200 was discontinued after 2019.

Specifications[]

Related content: APEX series | Signature series | RG series | Models-icon
Specifications for APEX200
Model name: APEX200
Year(s) offered: 2014–2019
Sold in: Worldwide
Made in: Japan
Finish(es): Dark gray matte
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
Tilt Joint
Bridge:
Lo-Pro Edge 7 tremolo w/ U-bar (10.8mm string spacing)
Pickguard:
Black
Hardware color:
Black
Neck
Neck type:
APEX Prestige
Neck material:
5-piece maple/ wenge
Scale length:
648mm/ 25½"
Fingerboard material:
2014–2018: Rosewood
2019: Macassar ebony
Fingerboard inlays:
Compass design at 12th fret
Frets:
24 / jumbo (Prestige edge treatment)
Nut:
Locking
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HS
Bridge pickup:
DiMarzio Blaze (H) passive/ ceramic
Neck pickup:
DiMarzio Blaze (S) passive/ ceramic
Controls:
Master volume / 3-way lever pickup selector
String gauge (factory):
.010/.013/.017/.030/.042/.052/.060 (Dean Markley)
Factory tuning:
1D 2A 3F 4C 5G 6D 7A

Images[]

Additional details

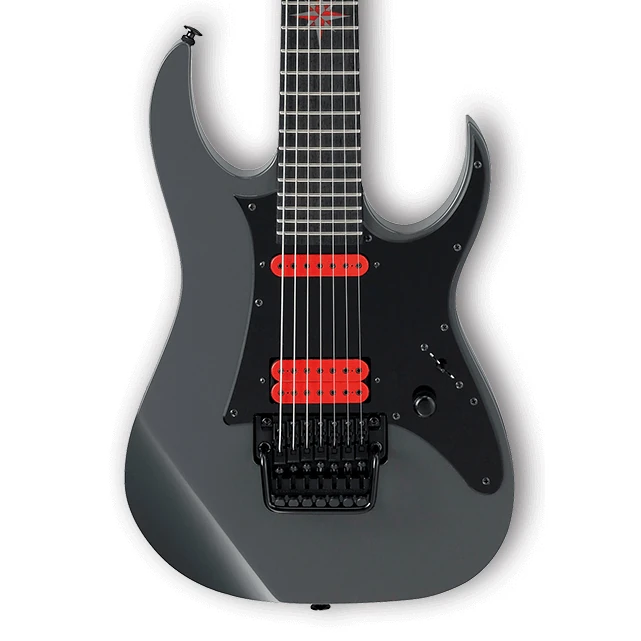

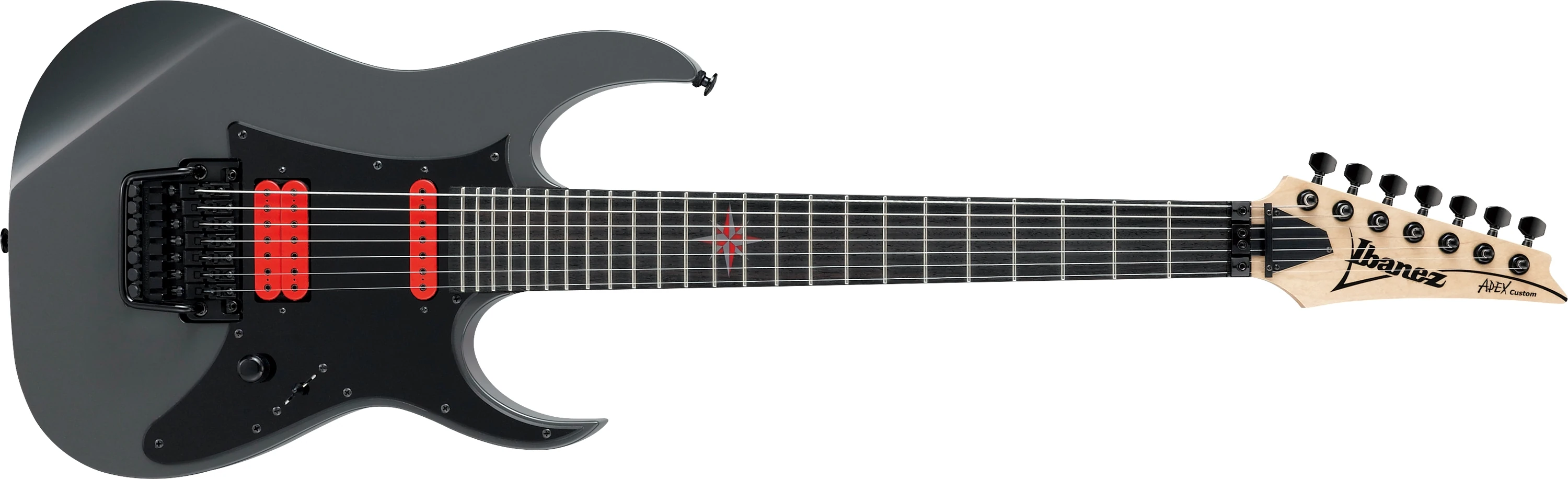

APEX200 front
Front of body

Videos[]

James 'Munky' Shaffer on his Ibanez APEX200 signature model


Ibanez APEX200 and APEX20s ( James 'Munky' Shaffer interview )
