2019 ANB306 1P 03

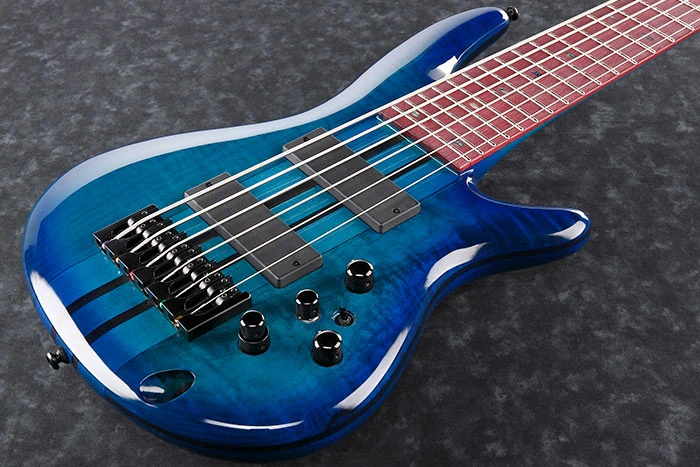

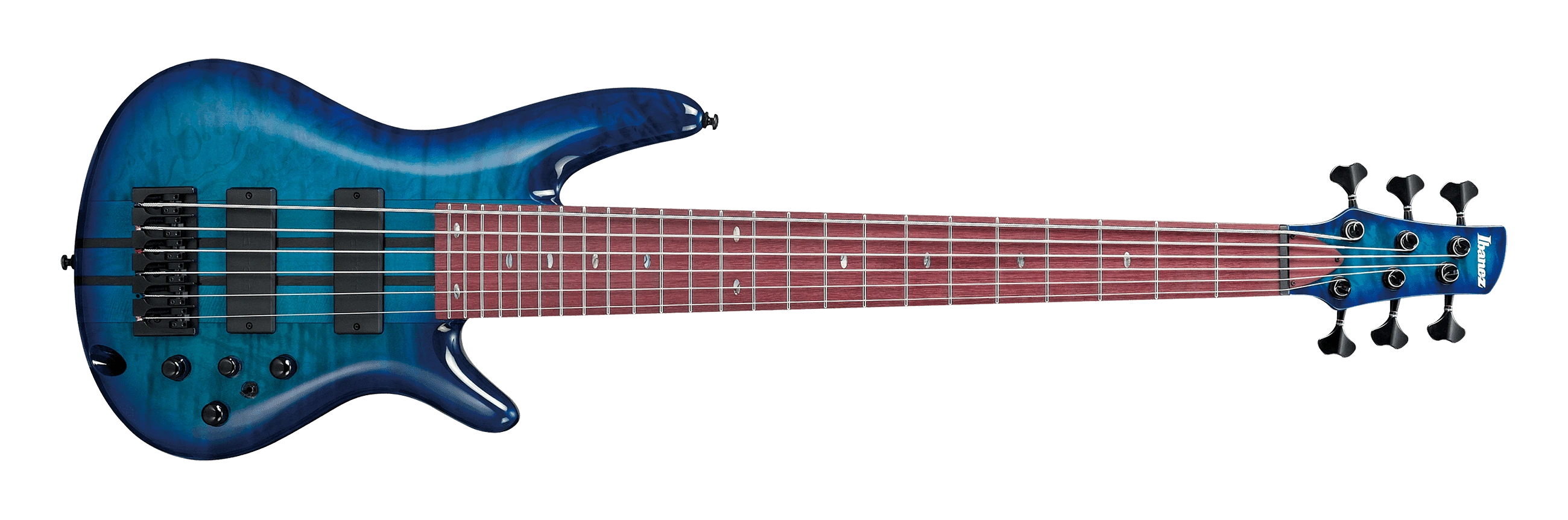

ANB306 Transparent Blue Red copyright sprite

The ANB306 is a six string solid body electric bass model introduced by Ibanez in 2016. It is a signature model for American bassist and composer Adam Nitti. It is made in Indonesia as part of the Premium line. In the United States it has been referred to as the ANB306E.

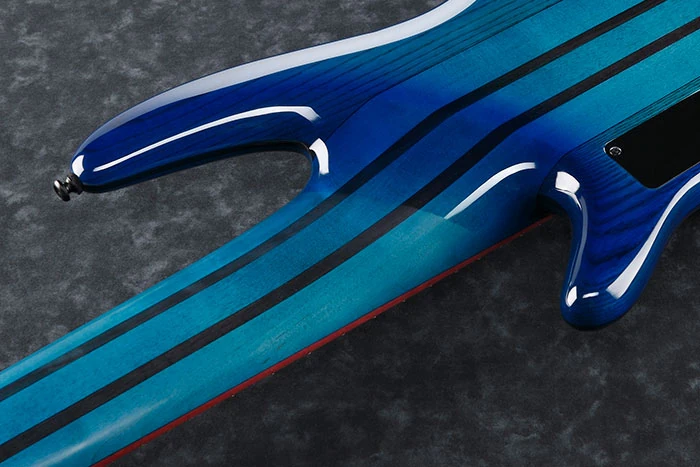

The ANB306 features a neck through body construction with SR series double-cutaway ash body wings with a quilted maple top mated to a maple and purpleheart neck with a 24 fret purpleheart fingerboard with abalone oval position markers. Components include a pair of Bartolini passive soapbar bass pickups with a Bartolini preamp, a Hipshot A-style bridge, a plastic nut and Gotoh tuners.

The ANB306 is the second signature model created for Nitti, following the ANB1006. Since then a five string model, the ANB205, has been introduced.

Specifications

Specifications for ANB306
Model name: ANB306 / ANB306E
Year(s) produced: 2016–2020
Sold in: Asia & Africa / China / Europe / North & South America and Oceania / USA
Made in: Indonesia
Finish(es): Transparent Blue
Body
Body type:
Solid body
Body material:
Ash w/ quilted maple top
Neck joint:
Neck-thru
Bridge:
Hipshot A-style bridge (18mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
ANB6
Neck material:
5-piece maple/ purpleheart
Scale length:
864mm / 34"
Fingerboard material:
Purpleheart
Fingerboard inlays:
Abalone oval
Frets:
24 / medium (Premium edge treatment)
Nut:
Black plastic (55mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
Bartolini xxM56C-T (J) passive
Neck pickup:
Bartolini xxM56C-B (J) passive
Electronics:
Bartolini NTMB+F ANB custom preamp, 3-band eq w/Mid frequency
Controls:
Master volume / Stacked bass boost-cut & treble boost-cut / Mid boost-cut / Balancer / 3-way mid frequency toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled top mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B

Images

Additional details
Controls ANB306
Controls layout
ANB205 EQ charts
EQ toggle frequency charts

Video

6 Minutes With Adam Nitti and his Ibanez Signature Basses

6 Minutes With Adam Nitti and his Ibanez Signature Basses

Sources
