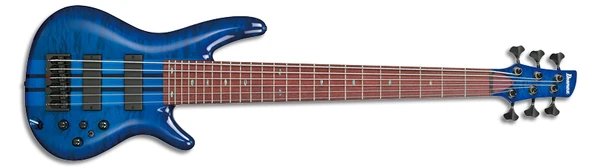

2015 ANB1006 33 01.jpg
ANB1006 transparent blue Red copyright sprite.png

The ANB1006 is a six string solid body electric bass model introduced by Ibanez for 2015. It is a signature model for American bassist and composer Adam Nitti. It was made in Japan by FujiGen.

The ANB1006 features a neck through body construction with Soundgear series double-cutaway swamp ash body wings with a figured maple top mated to a maple and purpleheart neck with a 24 fret purpleheart fingerboard with abalone oval position markers. Components include a pair of Bartolini passive soapbar bass pickups with a Bartolini preamp, a Hipshot A-style bridge, a plastic nut and Gotoh tuners.

The ANB306 is a similar mass market version of this bass which is produced in Indonesia.

The ANB1006 was discontinued after 2017.

Specifications

Specifications for ANB1006
Model name: ANB1006
Year(s) produced: 2015–2017
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Japan
Finish(es): Transparent Blue
Body
Body type:
Solid body
Body material:
Swamp ash w/ figured maple top
Neck joint:
Neck-thru
Bridge:
Hipshot A-style bridge (18mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Black
Neck
Neck type:
ANB6
Neck material:
5-piece maple/ purpleheart
Scale length:
864mm / 34"
Fingerboard material:
Purpleheart
Fingerboard inlays:
Abalone oval
Frets:
24 / medium
Nut:
Black plastic (55mm)
Machine heads:
Gotoh GB707
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
Bartolini xxM56C-T (J) passive
Neck pickup:
Bartolini xxM56C-B (J) passive
Electronics:
Bartolini NTMB+F ANB custom preamp, 3-band eq w/Mid frequency
Controls:
Master volume / Stacked bass boost-cut & treble boost-cut / Mid boost-cut / Balancer / 3-way mid frequency toggle
Battery:
9V
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.032/.045/.065/.080/.100/.130
Factory tuning:
1C,2G,3D,4A,5E,6B (B Std.)
Portal: SR series | Adam Nitti series | Signature series | Bass models Models-icon.png

Images

Additional details

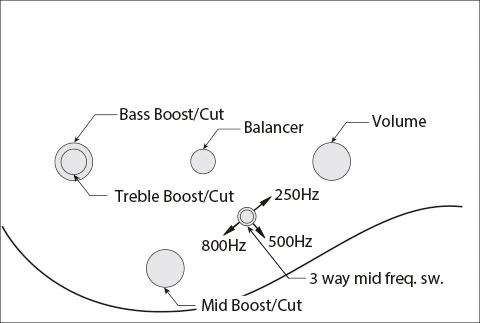

Controls ANB306.jpg
Controls layout

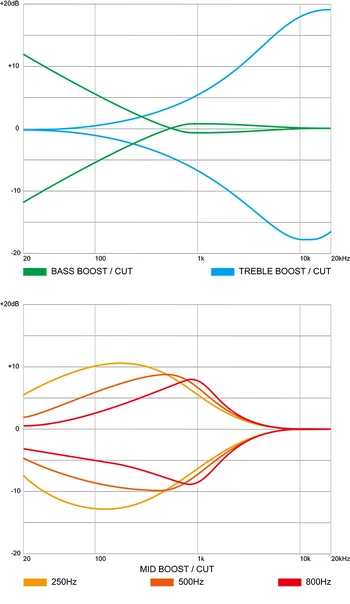

ANB205 EQ charts.jpg
EQ toggle frequency charts

Video

Six Minutes with Adam Nitti and his Ibanez signature basses
