2022 AMH90QM TBL

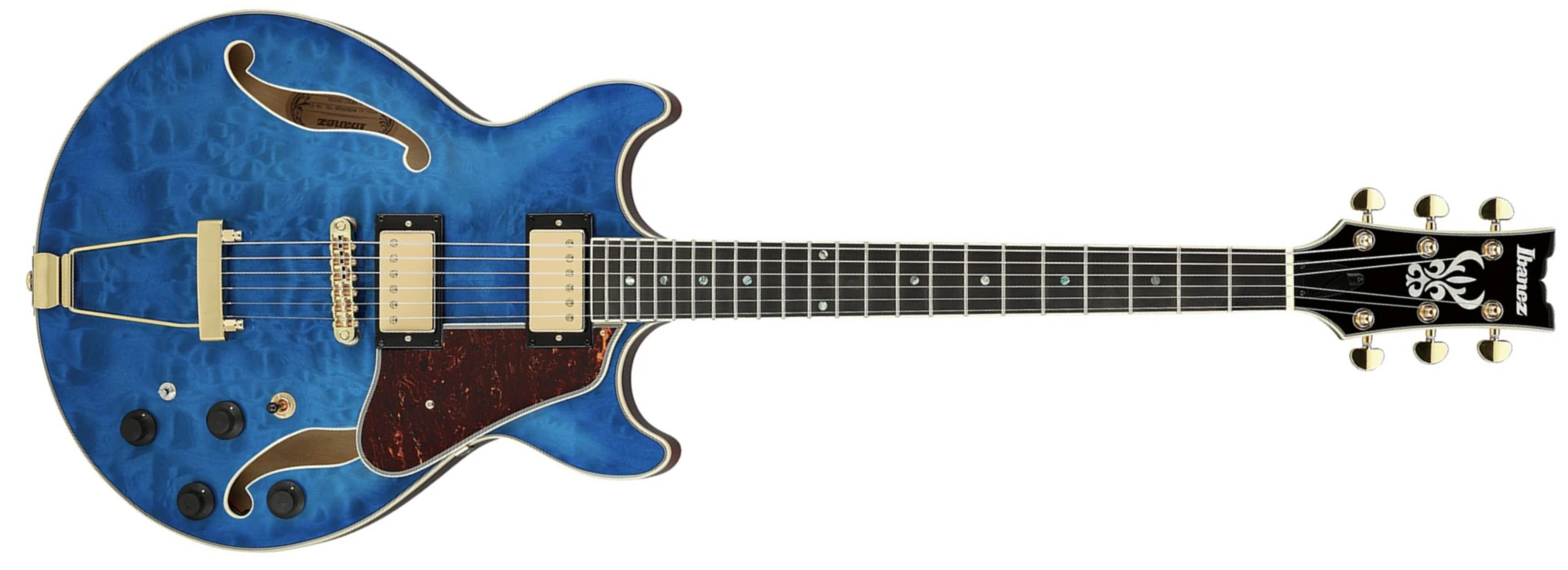

AMH90QM Transparent Blue (more images) Red copyright sprite

The AMH90QM is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez in 2022. It is a spot model which was offered exclusively by Japanese retailer Shimamura Music. It was produced in Indonesia.

The AMH90QM features a compact, full-hollow, double cutaway body design with a quilted maple top with ƒ holes and ivory multi-binding on linden back and sides mated to a set-in nyatoh and maple neck with a 22-fret ebony fingerboard with ivory binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Gibraltar Performer tune-o-matic style bridge, a trapeze tailpiece, a plastic nut, a red tortoise shell pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AMH90 is a related regular production model with a linden top.

The AMH90QM was offered only in 2022.

Specifications[]

Specifications for AMH90QM
Model name: AMH90QM
Year(s) offered: 2022
Sold in: Japan
Made in: Indonesia
Price: SMAP: JP¥ 95,300 (2022)[1]
Finish(es): Transparent Blue (TBL)
Body
Body type:
Hollow body
Dimensions:
  Length: 448mm / 17⅝"
  Width: 368mm / 14½"
  Depth: 67mm / 2⅝"
Top:
  Material: Quilted maple (laminated)
  Binding: Ivory multi-ply
Back/sides:
  Material: Linden (laminated)
Neck joint:
Set-in
Bridge:
Gibraltar Performer (10.5mm string spacing)
Tailpiece:
VT06 trapeze
Pickguard:
Red tortoise shell on bakelite
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AM Expressionist
Neck material:
3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ ivory binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium nickel silver
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Controls layout

Sources[]

  1. AMH90QM product listing, Shimamura Music (Japanese retailer), archived June 2022
