AMH90

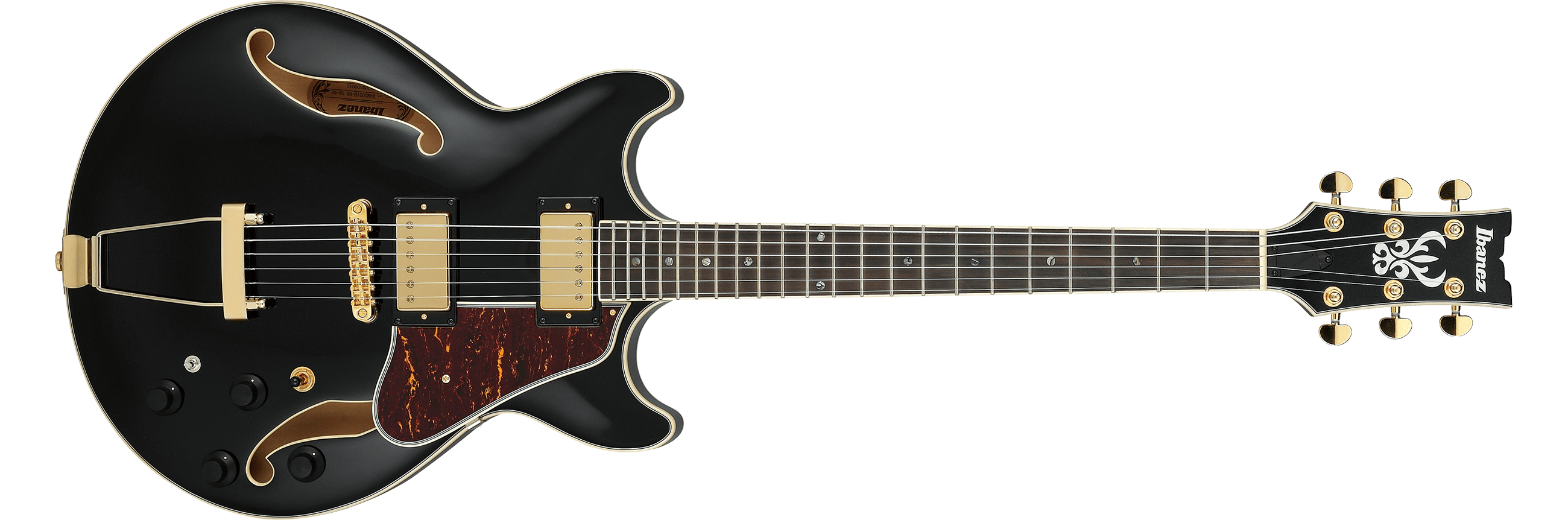

AMH90 Black (more images)

The AMH90 is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez for 2021. It is produced in Indonesia.

The AMH90 features a compact, full-hollow, double cutaway body design constructed of a laminated linden top with ƒ holes and ivory multi-binding on laminated linden sides and back mated to a set-in nyatoh and maple neck with a 22-fret Macassar ebony fingerboard with ivory binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Gibraltar Performer tune-o-matic style bridge, a trapeze tailpiece, a plastic nut, a red tortoise shell pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AMH90QM is a related spot model with a quilted maple top. The AM93QM and AM93ME are related model with semi-hollow bodies of, respectively, quilted maple and Macassar ebony.

Specifications

Related content: AM models | Artcore Expressionist series | Artcore series |

Specifications for AMH90

Model name: AMH90 Year(s) offered: 2021–2025 Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA & Canada Made in: Indonesia Price: MSRP: ¥ 100,000 pre-tax (2021) / ¥ 105,000 pre-tax (2022–2023) / US$964.43 (2022–2025) / €799 (2024) / ¥ 120,000 pre-tax (2024–2025) / US$1,060.88 (2025) • SMAP: US$699.99 (2022–2025) / US$769.99 (2025) Finish(es): Black (BK) / Cherry Red Flat (CRF) 2021–2023 / Ivory 2023–2024 / Prussian Blue Metallic (PBM) 2022–2024
Body Body type: Hollow body Dimensions:   Length: 448mm / 17⅝"   Width: 368mm / 14½"   Depth: 67mm / 2⅝" Top:   Material: Linden (laminated)   Finish: Gloss [matte for CRF finish]   Binding: Ivory multi-ply Back/sides:   Material: Linden (laminated)   Finish: Gloss [matte for CRF finish] Neck joint: Set-in Bridge: Gibraltar Performer (10.5mm string spacing) Tailpiece: VT06 trapeze Pickguard: Red tortoise shell on bakelite Strap buttons: 16mm metal button w/ black felt washer Knob style: Sure Grip III Hardware color: Gold	Neck Neck type: AM Expressionist Neck material: 3-piece nyatoh/ maple Scale length: 628mm/ 24¾" Fingerboard material: Macassar ebony w/ ivory binding Fingerboard inlays: Acrylic block Frets: 22 / medium nickel silver Nut: Ivory plastic (43mm) Machine heads: Ibanez w/ half moon buttons String gauge (factory): 2021–2024: .010/.013/.017/.030/.042/.052 2025: .010/.013/.017/.030/.042/.052 (D'Addario EXL140 roundwound) Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)	Electronics/ case Pickup configuration: HH Bridge pickup: Ibanez Super 58 bridge (H) passive/alnico Neck pickup: Ibanez Super 58 neck (H) passive/alnico Controls: Two volumes / two tones / 3-way toggle pickup selector Output jack: ¼" mono (side mounted) Recommended case: MM100C Recommended gig bag: IHB541, IGB724, or IGB540 Included gig bag: Japan only

About this table

Images

Other available finishes

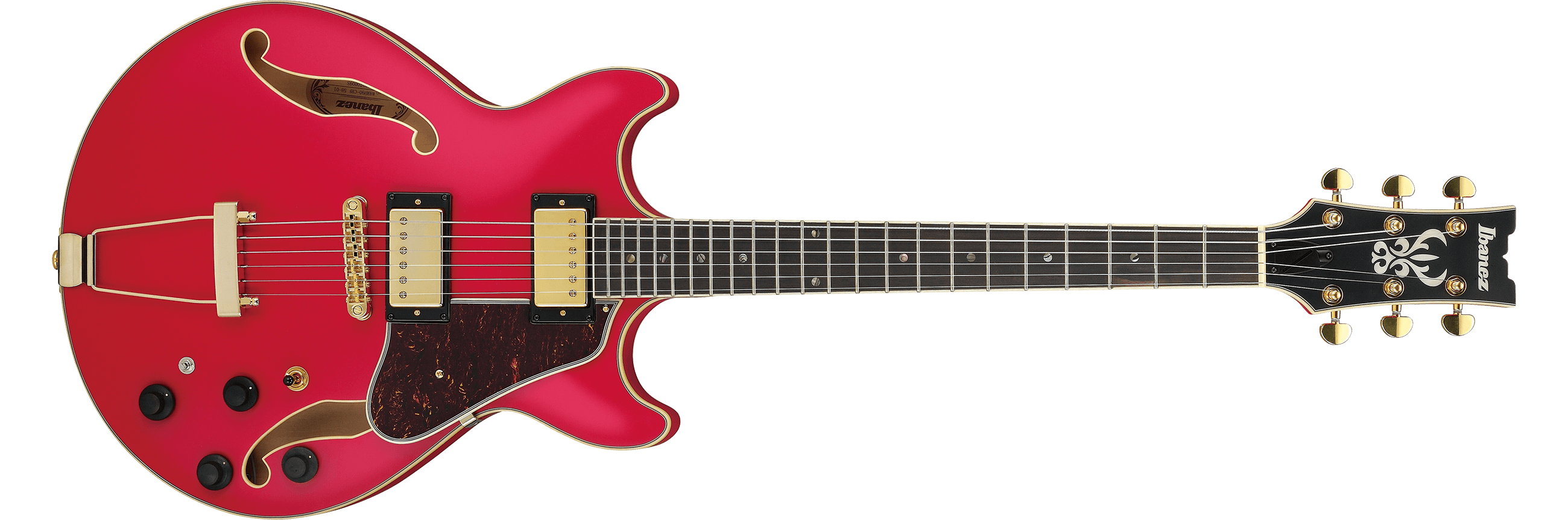

Cherry Red Flat

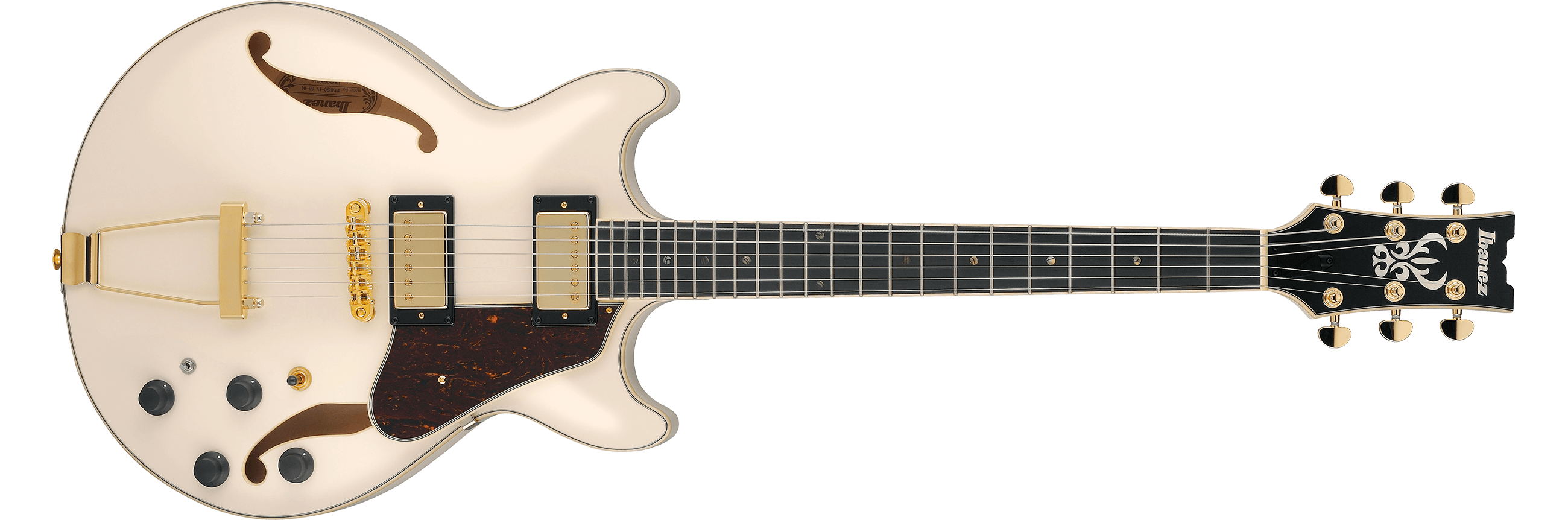

Ivory (2023)

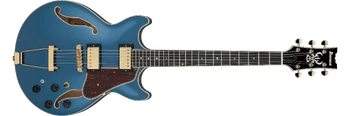

Prussian Blue Metallic (2022)

Additional details

Pickup switching

Controls layout

Front of body

Rear of body

Video

Ibanez AMH90 Cherry Red Flat & Black

Ibanez AMH90-CRF ( Demo by Ibanez Artist Kanako Yamamoto )

Ibanez AMH90-BK ( Demo by Ikuto Shimizu )

Sources

• AMH90-BK (5B-02) parts list, Ibanez parts catalog, archived January 2026
• AMH90 product page, Ibanez Asia & Africa, archived January 2021
• AMH90 product page, Ibanez Europe, archived June 2022
• AMH90 product page, Ibanez Americas & Oceania, archived January 2023
• AMH90 product page, Ibanez USA, archived January 2024
• AMH90 product page, Ibanez China, archived February 2025
