For the earlier model with the same name, see AMF73T (2010–2011).
2016 AMF73T SRD 12 01

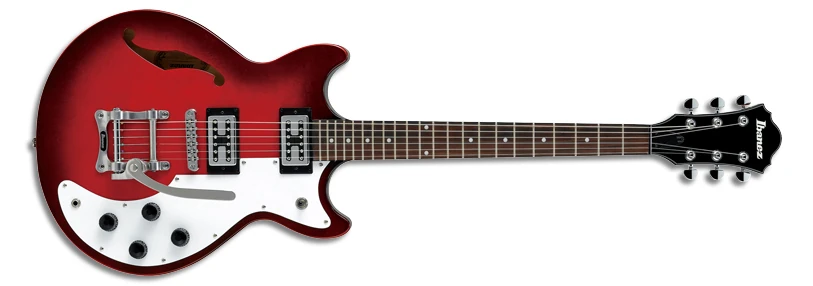

AMF73T Sunset Red (more images) Red copyright sprite

The AMF73T is an Artcore series hollow body electric guitar model introduced by Ibanez for 2015. It was made in China.

The AMF73T features a smaller, double-cutaway, semi-hollow body design with a flat, laminated maple top with a single ƒ hole on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez Classic Elite Retro humbucking pickups with chrome covers and individual volume and tone controls, a roller bridge with a vintage vibrato tailpiece, a large white pickguard covering most of the bottom half of the top, a plastic nut, Sure Grip III knobs, and Ibanez tuning machines.

The AMF73 is a related earlier model without the vibrato tailpiece. The AM73 is a related model with an arched top and no pickguard.

This AMF73T was discontinued after 2016.

Specifications[]

Related content: AM models | Artcore series | Models-icon
Specifications for AMF73T (2015–2016)
Year(s) offered: 2015–2016
Sold in: North & South America and Oceania / USA
Made in: China
Finish(es): Sunset Red (SRD) / Tobacco Burst (TBC)
Body
Body type:
Hollow body
Dimensions:
  Length: 448mm / 17⅝"
  Width: 368mm / 14½"
  Depth: 67mm / 2⅝"
Top:
  Material: Maple (laminated)
  Binding: White
Back/sides:
  Material: Maple
Neck joint:
Set-in
Bridge:
ART-2 roller
Tailpiece:
VBX60 vintage vibrato
Pickguard:
White
Knob style:
Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
AMF Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Classic Elite Retro bridge (H)
Neck pickup:
Ibanez Classic Elite Retro neck (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (top mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

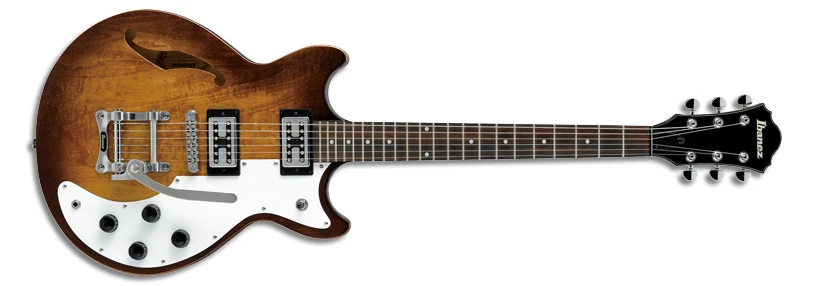

2016 AMF73T TBC 12 01
Tobacco Burst
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
