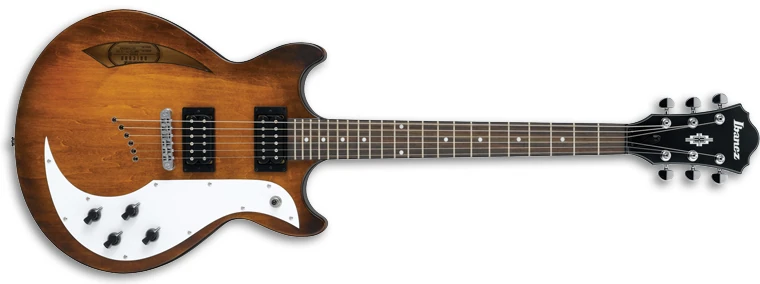

2013 AMF73 TF 12 02
AMF73 Tobacco Flat (more images) Red copyright sprite

The AMF73 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2010. It was made in China.

The AMF73 has a 1960s retro vibe. It features a smaller, slim, double-cutaway, semi-hollow body design with a flat laminated maple top with a single apostrophe-shaped soundhole on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with pearl dot position markers. Components include a pair of Ibanez Artcore humbucking pickups with individual volume and tone controls, a Tune-o-matic ART-1 bridge with through-body string routing, a large white pickguard covering most of the bottom half of the top, a plastic nut, chickenhead knobs, and Ibanez tuning machines.

The AMF73T is a related model with a vibrato tailpiece. The AM73B is a related model with an arched top and no pickguard.

This AMF73 was discontinued after 2013.

Specifications

Specifications for AMF73
Year(s) produced: 2010–2013
Sold in: Europe / North & South America and Oceania / USA
Made in: China
Finish(es): Black (BK) 2010–2011 / Tobacco Flat (TF) / Transparent Gray Flat (TGF) 2012
Body
Body type:
Hollow body
Dimensions:
  Length: 448mm / 17⅝"
  Width: 368mm / 14½"
  Depth: 41mm / 1⅝"
Top:

  Material: Maple (laminated)
  Binding: White

Back/sides:

  Material: Maple

Neck joint:
Set-in
Bridge:
ART-1 fixed
Pickguard:
White
Knob style:
Chickenhead (black)
Hardware color:
Chrome
Neck
Neck type:
AM Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2-S (H)
Neck pickup:
Ibanez ACH1-S (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

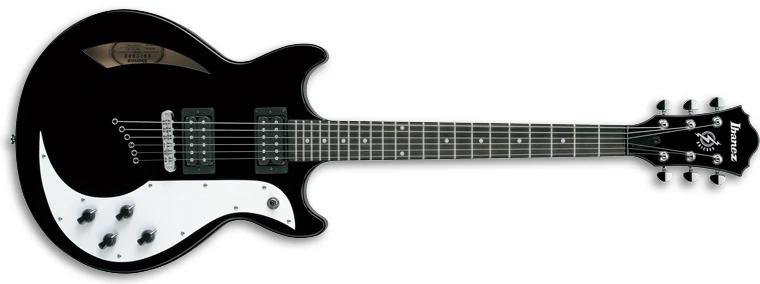

2010 AMF73 BK 12 01
Black

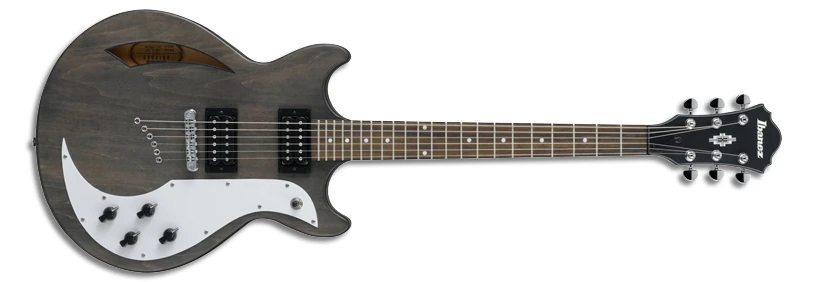

2012 AMF73 TGF 12 02
Transparent Gray Flat
HH 3-way toggle
Pickup switching

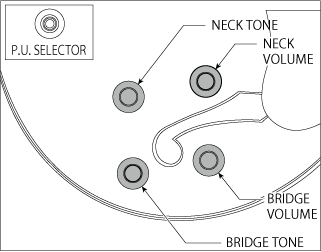

Controls 2V2T3 Archtop
Control layout
