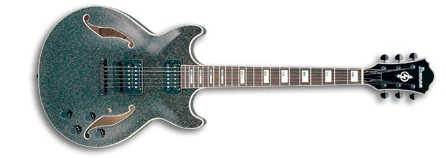

2004 AM77 NBK 12 01
AM77 Nebula Black Red copyright sprite

The AM77 is an Artcore series hollow body electric guitar model introduced by Ibanez in late 2003. It was produced in China.

The AM77 features a smaller, double-cutaway, semi-hollow body design with an arched laminated maple top with ƒ holes on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with pearl block position markers. Components include a pair of uncovered Ibanez Artcore humbucking pickups with individual volume and tone controls, black pickup rings, a Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines.

The AM77T is a similar model with a vibrato tailpiece. The AM73 is a related model with chrome hardware and dot fretboard inlays.

The AM77 was discontinued after 2005.

Specifications

Specifications for AM77
Year(s) produced: 2003–2005
Sold in: Asia & S. America / Europe / USA
Made in: China
Finish(es): Nebula Black (NBK)
Body
Body type:
Hollow body
Dimensions:
  Length: 448mm / 17⅝"
  Width: 375mm / 14¾"
  Depth: 67mm / 2⅝" (43mm at tail)
Top:

  Material: Maple (laminated)

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
ART-1 (10.5mm string spacing)
Tailpiece:
Quik Change III
Knob style:
Speed (black)
Hardware color:
Black
Neck
Neck type:
Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl block
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Artcore Humbucker 2 (H)
Neck pickup:
Ibanez Artcore Humbucker 1 (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
