For the earlier model with the same name, see AM73 (2002–2007).

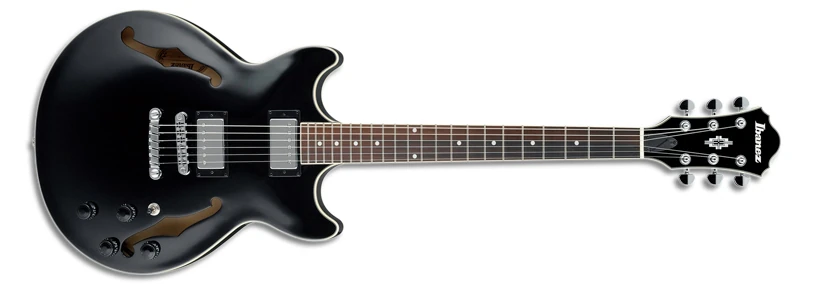

2016 AM73 BK 12 02
AM73 Black Red copyright sprite

The AM73 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2016. It was made in China.

The AM73 features a smaller, double-cutaway, semi-hollow body design with a laminated maple top with ƒ holes and white binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with white binding and white dot position markers. Components include a pair of Ibanez Classic Elite humbucking pickups with chrome covers and individual volume and tone controls, a Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, Sure Grip III knobs, and Ibanez tuning machines.

The AM73B is a similar model with different pickups and a black nut.

This AM73 was produced only in 2016.

Specifications

Specifications for AM73 (2016)
Year(s) produced: 2016
Sold in: Asia / Europe
Made in: China
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Length: 448mm / 17⅝"
  Width: 368mm / 14½"
  Depth: 67mm / 2⅝"
Top:

  Material: Maple (laminated)
  Binding: White

Back/sides:

  Material: Maple

Neck joint:
Set-in
Bridge:
ART-1 (10.5mm string spacing)
Tailpiece:
Quik Change III
Knob style:
Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
Artcore AM
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ white binding
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
White plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Classic Elite bridge (H)
Neck pickup:
Ibanez Classic Elite neck (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
