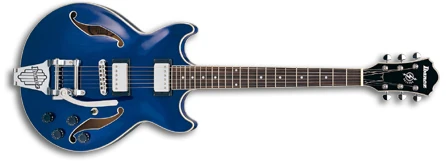

2005 AM73T TBL 12 01
AM73T Transparent Blue (more images) Red copyright sprite

The AM73T is an Artcore series hollow body electric guitar model introduced by Ibanez in mid 2002. It was produced in China.

The AM73 features a smaller, double-cutaway, semi-hollow body design with an arched laminated maple top with ƒ holes on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with pearl dot position markers. Components include a pair of Ibanez Artcore humbucking pickups with individual volume and tone controls, black pickup rings, a Tune-o-matic style bridge with a vintage vibrato tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines.

The AM73 is a related model without the vibrato tailpiece.

The AM73T was discontinued after 2005.

Specifications

Specifications for AM73T
Year(s) produced: 2002–2005
Sold in: Japan
Made in: China
Finish(es): Transparent Blue (TBL) / Transparent Brown (TBR) / Transparent Red (TRD)
Body
Body type:
Hollow body
Dimensions:
  Length: 448mm / 17⅝"
  Width: 375mm / 14¾"
  Depth: 67mm / 2⅝" (43mm at tail)
Top:

  Material: Maple (laminated)

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
ART-2 roller (10.5mm string spacing)
Tailpiece:
VBS80 vibrato
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood
Fingerboard inlays:
Pearl dot
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Artcore Humbucker 2 (H)
Neck pickup:
Ibanez Artcore Humbucker 1 (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
Transparent Brown

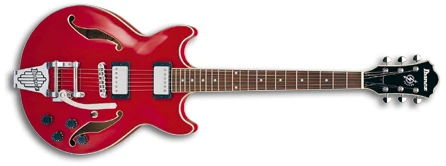

2005 AM73T TRD 12 01
Transparent Red
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
Wimage An image for this article is missing!
An image of the AM73T Transparent Brown is wanted for this article. You can help by finding, uploading and adding it!
