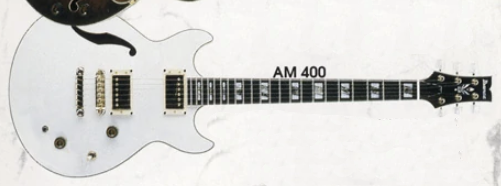

1990 AM400 WH
AM400 White Red copyright sprite

The AM400 is a hollow body electric guitar model introduced by Ibanez for 1988. It was made in Japan by Terada as part of the Artstar series.

The AM400 features a compact, semi-hollow, double cutaway body design with a special rounded back and sculpted neck heel. It has an arched, birdseye maple top with a single ƒ hole and ivory multi-binding on mahogany back and sides with a maple center block mated to a set-in mahogany and maple neck with a 22-fret ebony fingerboard with ivory binding and pearl and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers mounted in ivory plastic pickup rings, a Tune-o-matic style Gibraltar II bridge, a Quik Change II tailpiece, a bone nut, Sure Grip II knobs, and Gotoh tuning machines with ivory buttons.

The AM300 has a similar body shape but with a maple top and basswood back and with different components.

The AM400 was discontinued after 1990.

Specifications

Specifications for AM400
Year(s) produced: 1988–1990
Sold in: Worldwide
Made in: Japan
Finish(es): Black (BK) 1989 / Cherry Sunburst (CS) 1988–1989 / Midnight Olive (MO) 1988–1989 / Transparent Black (TK) 1988–1989 / White (WH)
Body
Body type:
Hollow body
Dimensions:
  Length: 464mm / 18¼"
  Width: 400mm / 15¾"
  Depth: 33mm / 1.3"
Top:

  Material: Birdseye maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Mahogany

Neck joint:
Set-in
Bridge:
Gibraltar II
Tailpiece:
Quik Change II
Knob style:
Sure Grip II (gold)
Hardware color:
Gold
Neck
Neck type:
Artstar AM400
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ ivory binding
Fingerboard inlays:
Pearl/ abalone split block
Frets:
22 / medium
Nut:
Bone (43mm)
Machine heads:
Gotoh SG38 w/ pearloid buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
Master volume / master tone / 3-way toggle
Output jack:
¼" stereo box (face mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
Black

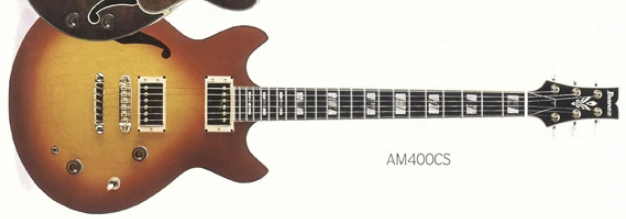

1988 AM400 CS
Cherry Sunburst

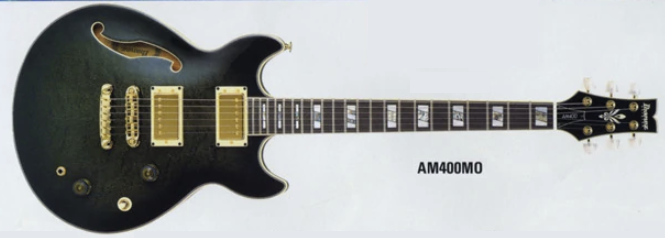

1989 AM400 MO
Midnight Olive

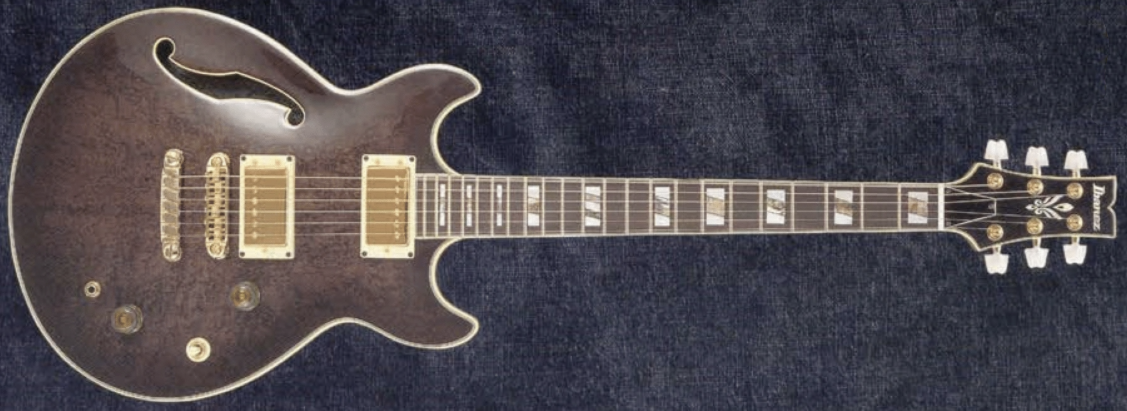

1988 AM400 TK
Transparent Black
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
1988 AM400 back
Molded rear heel

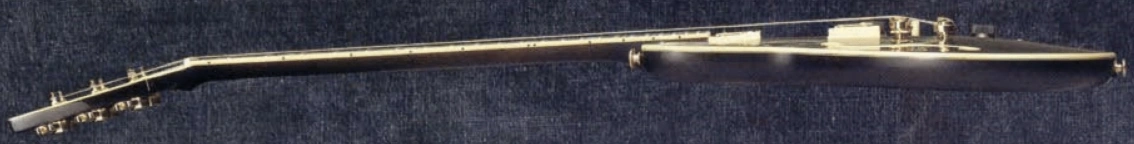

1988 AM400 side-view
Side view
Wimage An image for this article is missing!
An image of the AM400 Black (BK) is wanted for this article. You can help by finding, uploading and adding it!
