For the earlier model of the same name, see AM200 (1988–2003).
2019 AM200 BK 00 01 en 1
AM200 Black Red copyright sprite

The AM200 is an Artstar series hollow body electric guitar model re-introduced by Ibanez for 2017. It was made in Japan by FujiGen as part of the upscale Prestige line.

The AM200 features a compact, semi-hollow, double cutaway body design with a mahogany top with ƒ holes and white multi-binding on mahogany back and sides mated to a set-in mahogany neck with a 22-fret ebony fingerboard with white binding and mother of pearl block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style Gotoh bridge, a Gotoh tailpiece, a bone nut, a black pickguard, Sure Grip III knobs, and Gotoh tuning machines with ivory buttons.

For 2018 the wood species used for the body and neck was clarified as African mahogany.

The AS200 is a related model with a slightly larger body.

The AM200 was discontinued after 2020 and replaced with the AM2000H which is similar but has a roasted maple neck.

Specifications[]

Related content: AM models | Prestige series | Artstar series | Models-icon
Specifications for AM200 (2017–2020)
Model name: AM200 (2017–2020)
Year(s) offered: 2017–2020
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania 2019–2020 / USA 2017–2018
Made in: Japan
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Length: 419mm / 16½"
  Width: 352mm / 13⅞"
  Depth: 67mm / 2⅝"
Top:
  Material: 2017: Mahogany
                2018–2020: African mahogany
  Binding: White multi-ply
Back/sides:
  Material: 2017: Mahogany
                2018–2020: African mahogany
Neck joint:
Set-in
Bridge:
Gotoh 510BN (10.4mm string spacing)
Tailpiece:
Gotoh GE101A
Pickguard:
3-ply: black/ white/ black
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
Artstar AM Prestige
Neck material:
2017: 1-piece mahogany
2018–2020: 1-piece African mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ white binding
Fingerboard inlays:
Mother of pearl block
Frets:
22 / medium (Prestige edge treatment)
Nut:
Bone (43mm)
Machine heads:
Gotoh SG381 w/ ivory plastic buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch for neck pickup
Output jack:
¼" stereo box (face mounted)
String gauge (factory):
.013/.016/.022/.032/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Controls layout

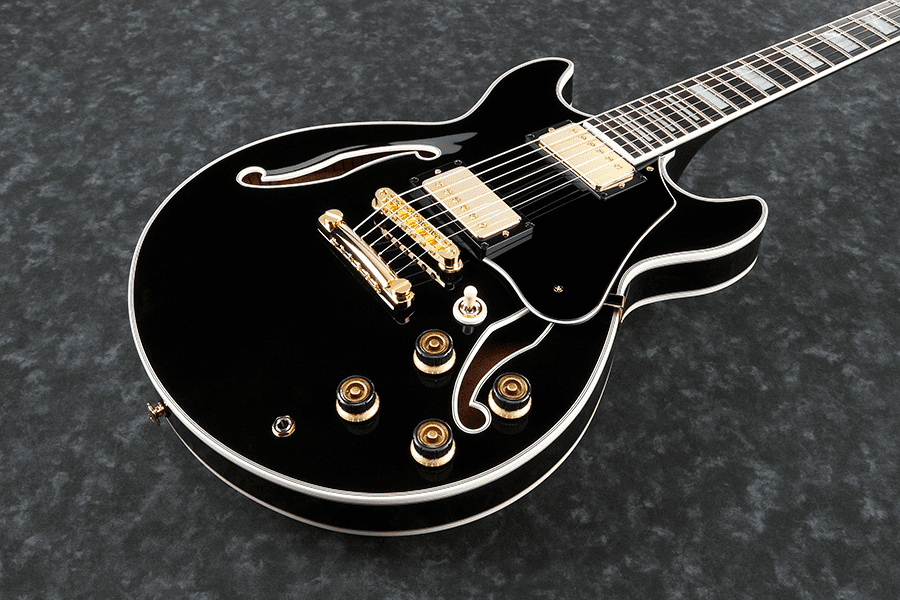

2019 AM200 BK 00 01 front
Front of body

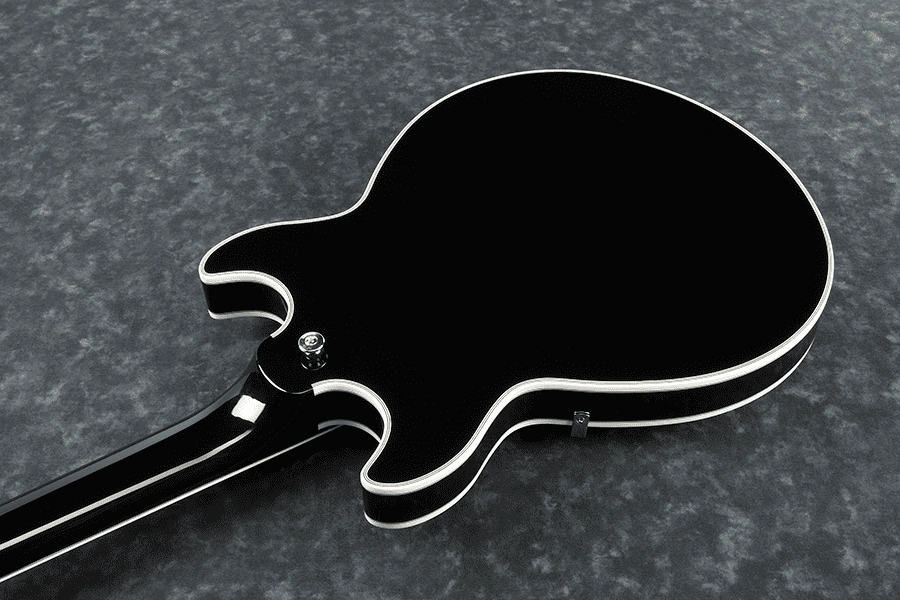

2019 AM200 BK 00 01 back
Rear of body
