2012 AKJ85 VYS 12 01

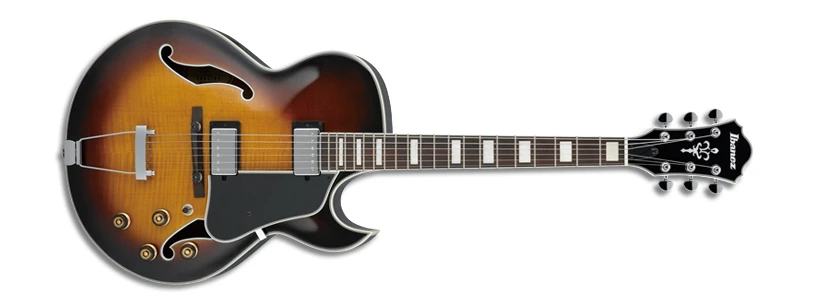

AKJ85 Vintage Yellow Sunburst Red copyright sprite

The AKJ85 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2012. It was made in China.

The AKJ85 features a thick, full-hollow body design with a laminated flamed maple top with ƒ holes and cream multi-binding on flamed maple back and sides with a single pointed Florentine cutaway mated to a set-in mahogany and maple neck with a 20-fret rosewood fingerboard with cream binding and pearl block position markers. Components include dual Ibanez Artcore humbucking pickups with chrome covers and individual volume and tone controls, an ART-W bridge with rosewood saddle and base, a trapeze tailpiece, a plastic nut, a bakelite pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AFJ85 is a similar model with a spruce top and a rounded Venetian cutaway.

The AKJ85 was discontinued after just a single year in production. It was replaced by the similar AKJ95.

Specifications

Specifications for AKJ85
Year(s) produced: 2012
Sold in: Europe / Japan / North & South America and Oceania
Made in: China
Finish(es): Vintage Yellow Sunburst (VYS)
Body
Body type:
Hollow body
Dimensions:
  Length: 495mm / 19½"
  Width: 400mm / 15¾"
  Depth: 92mm / 3⅝"
Top:

  Material: Flamed maple (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Flamed maple

Neck joint:
Set-in
Bridge:
ART-W w/ rosewood saddle & base (10.4mm string spacing)
Tailpiece:
VT06 trapeze
Pickguard:
Black bakelite
Knob style:
Sure Grip III (gold)
Hardware color:
Chrome
Neck
Neck type:
AFJ Artcore DX
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Pearl block
Frets:
20 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H) passive/alnico
Neck pickup:
Ibanez ACH1 (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
