2008 AJD91C NT 12 01
AJD91C Natural Red copyright sprite

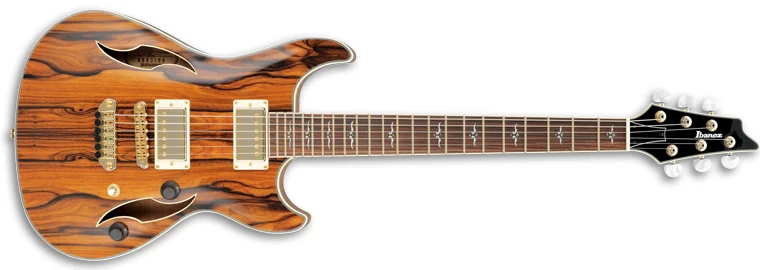

The AJD91C is a hollow body electric guitar model introduced by Ibanez for 2008. It was made in China as part of the Artcore series.

The AJD91C features a small, thin, semi-hollow double-cutaway body design which is somewhat reminiscent in shape to some of the Roadstar II series guitars from the 1980s, such as the RS1010SL. It has a laminated cocobolo top with stylized ƒ holes and cream multi-binding on cocobolo back and sides mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with cream binding and special position markers. Components include dual Ibanez Artcore humbucking pickups with gold covers, an ART-1 Tune-o-matic style bridge, a Quik Change Ultra tailpiece with integrated fine tuners, a plastic nut, rosewood bell knobs, and Ibanez tuning machines with white acrylic half-moon buttons.

The AJD91 is a similar model with a flamed maple body. The AJD71T is a related model with a maple body, one-piece neck and tremolo bridge.

The AJD91C was discontinued after 2008.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AJD91C
Year(s) offered: 2008
Sold in: Europe
Made in: China
Finish(es): Natural (NT)
Body
Body type:
Hollow body
Dimensions:
  Width: 330mm / 13"
  Depth: 44mm / 1¾"
Top:
  Material: Cocobolo (laminated)
  Binding: Cream multi-ply
Back/sides:
  Material: Cocobolo
Neck joint:
Set-in
Bridge:
ART-1 (10.4mm string spacing)
Tailpiece:
Quik Change Ultra w/ fine tuners
Knob style:
Rosewood bell
Hardware color:
Gold
Neck
Neck type:
AJD
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
AJD special
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ white half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H)
Neck pickup:
Ibanez ACH1 (H)
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
