2008 AJD71T BK 12 01
AJD71T Black Red copyright sprite

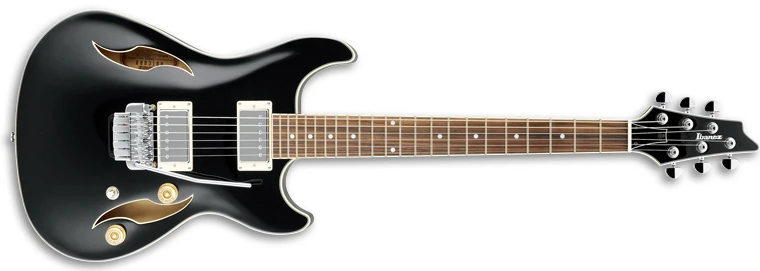

The AJD71T is a hollow body electric guitar model introduced by Ibanez for 2008. It was made in China as part of the Artcore series.

The AJD71T features a small, thin, semi-hollow double-cutaway body design which is somewhat reminiscent in shape to some of the Roadstar II series guitars from the 1980s, such as the RS1010SL. It has a laminated maple top with stylized ƒ holes and white binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with white binding and pearl dot position markers. Components include dual Ibanez Artcore humbucking pickups with chrome covers, an ACT 2-point tremolo bridge, a plastic nut, speed knobs, and Ibanez tuning machines with half-moon buttons.

The AJD91 is a similar model with a flamed maple body, 3-piece neck and fixed bridge.

The AJD71T was discontinued after 2009.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AJD71T
Year(s) offered: 2008–2009
Sold in: Europe / North America / USA
Made in: China
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Width: 330mm / 13"
  Depth: 44mm / 1¾"
Top:
  Material: Maple (laminated)
  Binding: White
Back/sides:
  Material: Maple
Neck joint:
Set-in
Bridge:
ACT tremolo
Knob style:
Speed (gold)
Hardware color:
Chrome
Neck
Neck type:
AJD
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ white binding
Fingerboard inlays:
Pearl dot
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H)
Neck pickup:
Ibanez ACH1 (H)
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 toggle
Control layout
