1986 AH20 WH

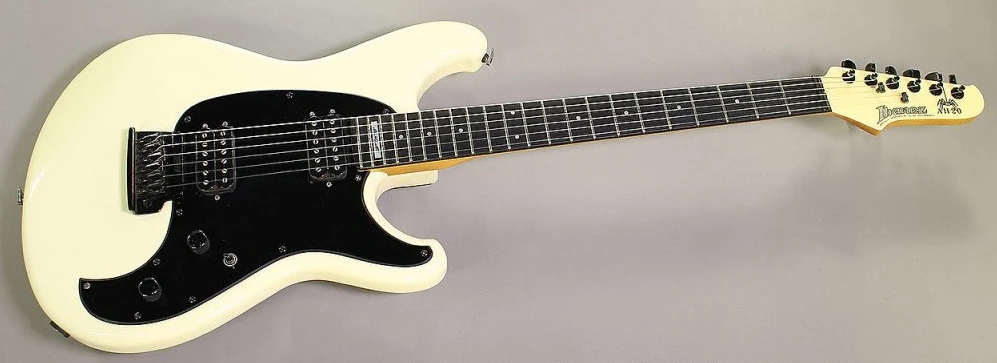

AH20 White (more images) Red copyright sprite

The AH20 is an solid body electric guitar model introduced by Ibanez in 1986. It is a signature model for British jazz fusion guitarist Allan Holdsworth.

The AH20 features a double-cutaway Roadstar II shaped basswood body with a tone chamber routed beneath the pickups bolted to a maple neck with a 25½" scale and a 17" radius 22-fret ebony fingerboard with dot position markers. Components include dual custom-made humbucking pickups mounted in a black pickguard, a specially configured Powerocker tremolo with a short 150mm tremolo arm, Tek Grip knobs and Smooth Tuner II machine heads. The headstock features a special spider logo which was designed by Holdsworth.

The AH10 is a similar model with a single humbucker.

The AH20 was discontinued after 1987.

Specifications

Specifications for AH20
Model name: AH20
Year(s) produced: 1986–1987
Sold in: Worldwide
Made in: Japan
Finish(es): Black (BK) / Burgundy (BY) / White (WH)
Body
Body type:
Chambered solid body
Body material:
Basswood
Neck joint:
Bolt-on traditional square heel
Bridge:
Powerocker Special tremolo
Pickguard:
Black
Knob style:
Tek Grip
Hardware color:
Black chrome
Neck
Neck type:
AH
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Pearl dot
Frets:
22 / Jim Dunlop #6100
Machine heads:
Smooth Tuner Mini II
Electronics
Pickup configuration:
H
Bridge pickup:
Ibanez AH Special (H)
Neck pickup:
Ibanez AH Special (H)
Controls:
Master volume / master tone / 3-way lever

Images

Other available finishes

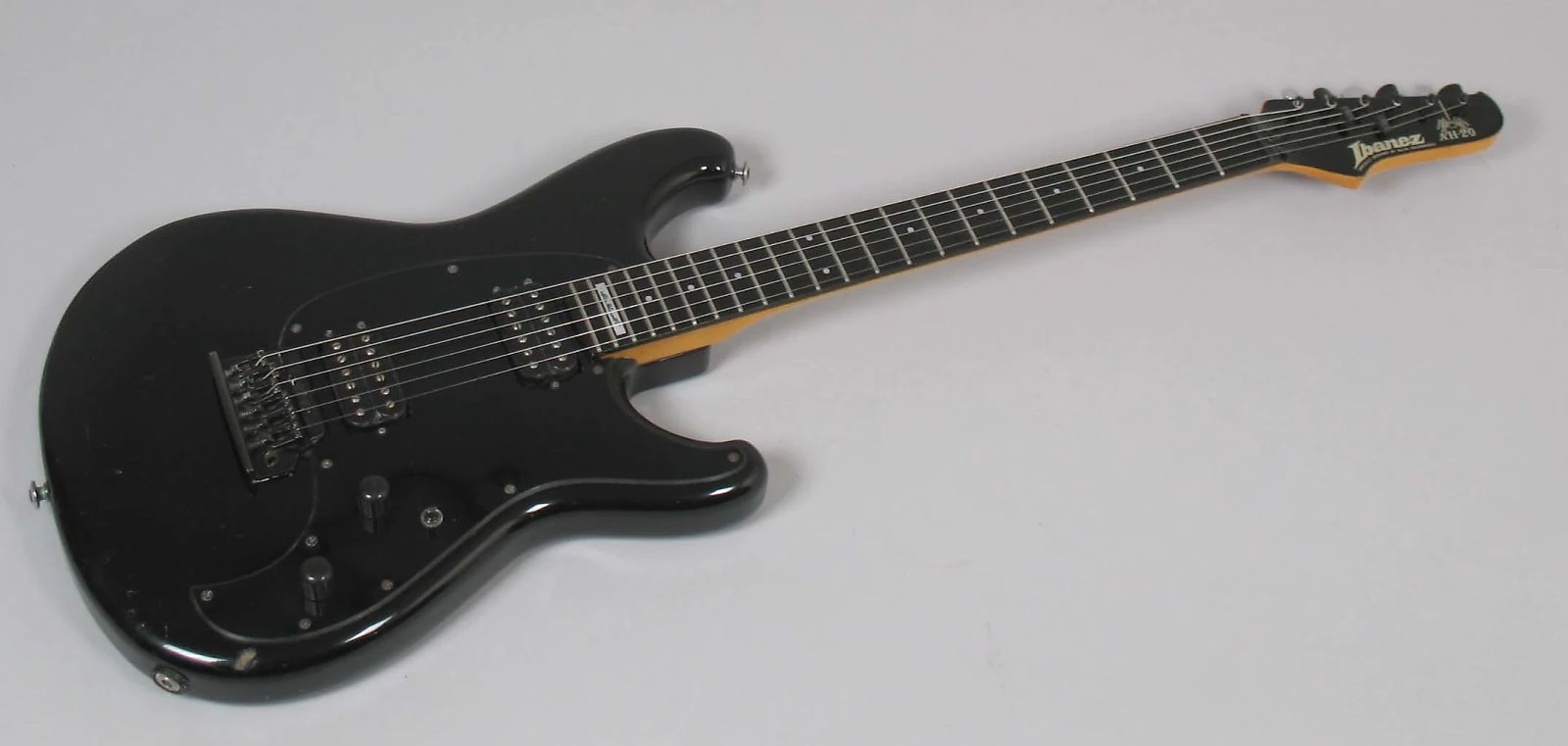

Black

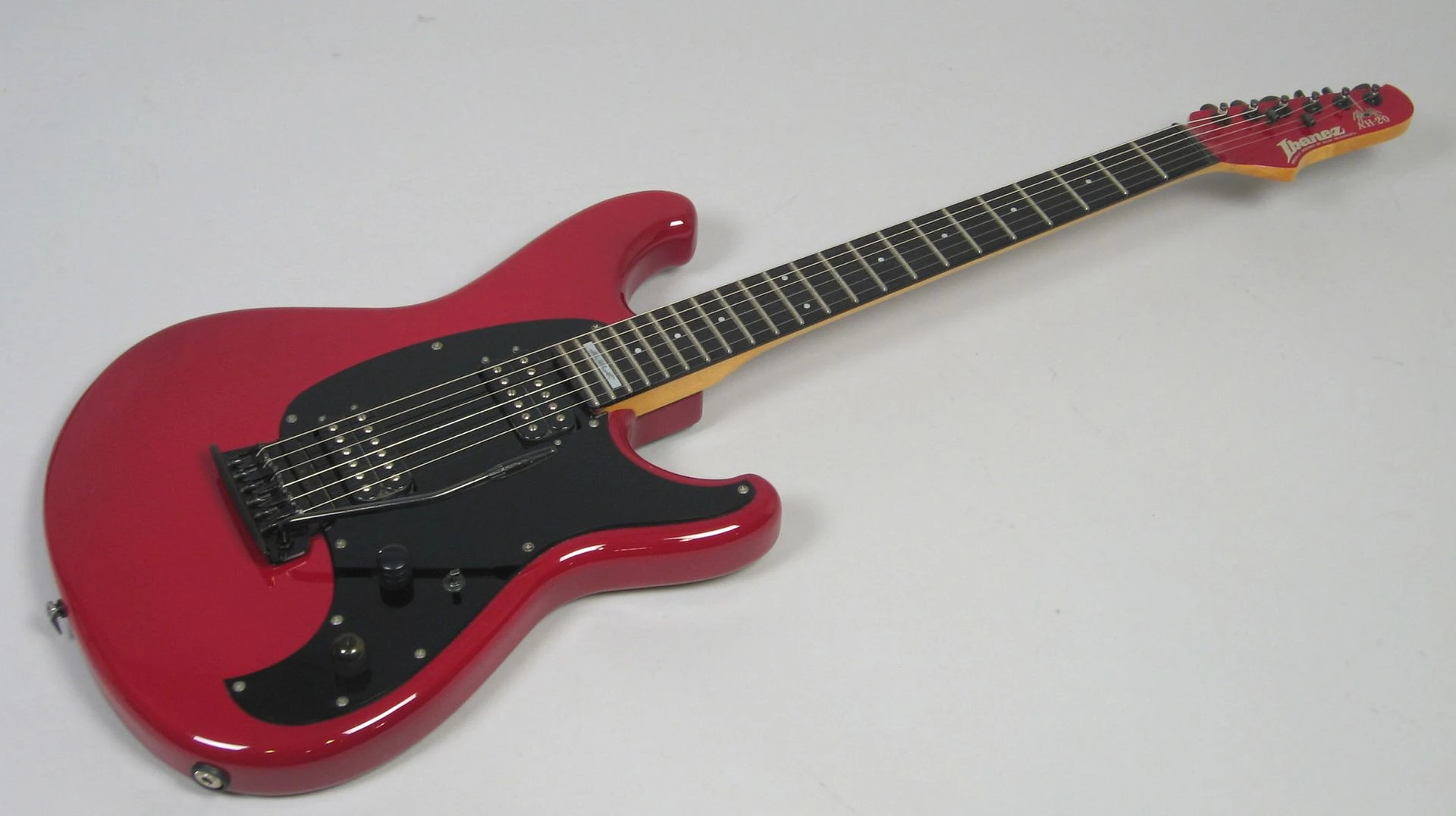

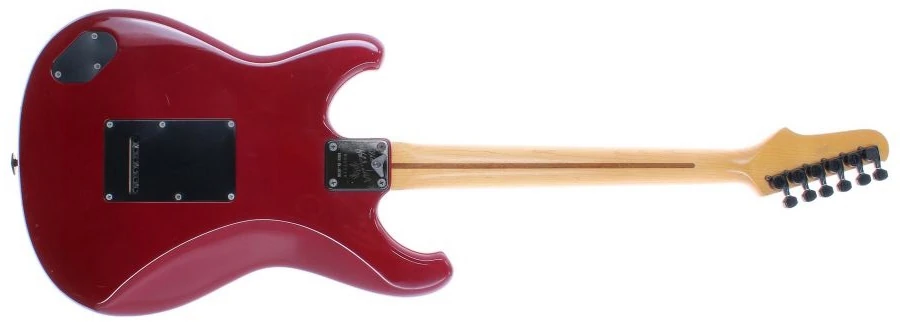

Burgundy
Wimage An image for this article is missing!
An image of the AH20 Black (B) and Burgundy (BY) is wanted for this article. You can help by finding, uploading and adding it!
