2009 AGS83BZ WRF 12 03

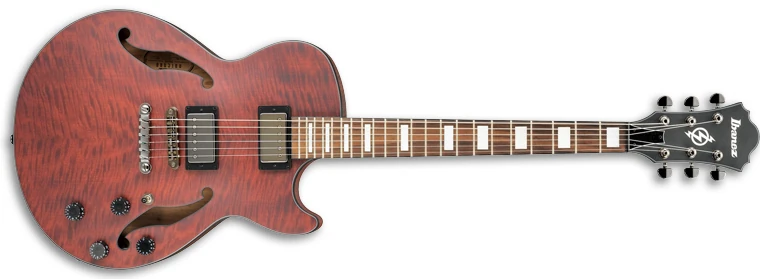

AGS83BZ Wine Red Flat Red copyright sprite

The AGS83BZ is an Artcore series hollow body electric guitar model introduced by Ibanez for 2007. It was produced in China. It is a spot model which didn't appear in any catalogs; it may have been an exclusive model for US retailers Guitar Center and Musician's Friend.

The AGS83BZ features a slim, mid-sized, semi-hollow body design with an arched laminated flamed maple top with ƒ holes and ivory multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with black binding and pearloid block position markers. The neck joint is at the 17th fret; combined with the deep cutaway this increases upper fret access. Components include a pair of Ibanez Artcore humbucking pickups with cosmo black covers and individual volume and tone controls, a Tune-o-matic style bridge, a Quik Change tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines.

For 2008 the nut color was changed from ivory to black.

The AGS83BZ mates the single-cutaway body of the AG75 to the semi-hollow construction of the AS73. The AGS83B is a similar model with different fretboard inlays.

The AGS83BZ was discontinued after 2009.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AGS83BZ
Year(s) offered: 2007–2009
Sold in: USA
Made in: China
Finish(es): Wine Red Flat (WRF)
Body
Body type:
Hollow body
Dimensions:
  Length: 479mm / 18⅞"
  Width: 368mm / 14½"
  Depth: 73mm / 2⅞"
Top:
  Material: Flamed maple (laminated)
  Binding: Black/ ivory multi-ply
Back/sides:
  Material: Flamed maple (laminated)
Neck joint:
Set-in
Bridge:
ART-1 (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
None
Knob style:
Speed (black)
Hardware color:
Cosmo black
Neck
Neck type:
Artcore DX
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ black binding
Fingerboard inlays:
Pearloid block
Frets:
22 / large
Nut:
2007: Ivory plastic (43mm)
2008–2009: Black plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H)
Neck pickup:
Ibanez ACH1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
