2012 AGR70 BK 12 01

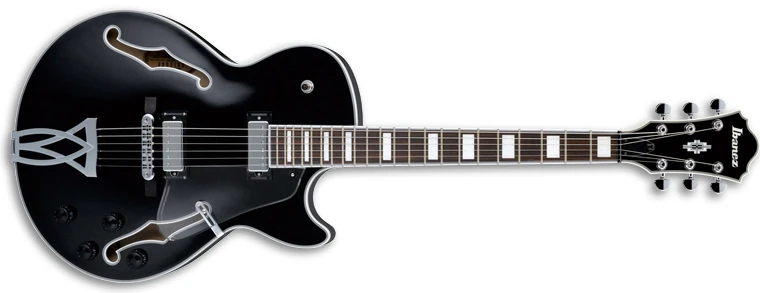

AGR70 Black (more images) Red copyright sprite

The AGR70 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2011. It was produced in China.

The AGR70 features a mid-sized, full-hollow body design with an arched laminated maple top with ƒ holes and ivory multi-binding on maple back and sides with a single Venetian cutaway mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and pearl block position markers. Components include a pair of Ibanez Artcore Mini humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a chrome tailpiece, a plastic nut, a clear pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AGR73T is a similar model with a vibrato tailpiece.

The AGR70 was discontinued after 2012.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AGR70
Year(s) offered: 2011–2012
Sold in: Europe / North & South America and Oceania / USA
Made in: China
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Length: 479mm / 18⅞"
  Width: 368mm / 14½"
  Depth: 50mm / 2" (at tail)
Top:
  Material: Maple (laminated)
  Binding: White multi-ply
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-1 on a wooden base
Tailpiece:
VT60 trapeze
Pickguard:
Clear
Knob style:
Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
AG Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearl block
Frets:
22 / large
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2-M mini (H)
Neck pickup:
Ibanez ACH1-M mini (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
