2013 AGB205 DVS 12 01

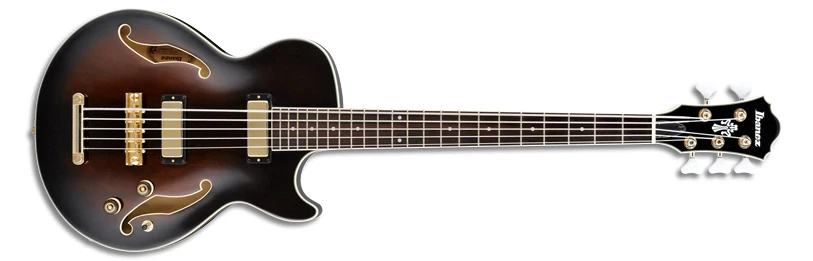

AGB205 Dark Violin Sunburst Red copyright sprite

The AGB205 is a five string Artcore Bass series semi-hollow body electric bass model introduced by Ibanez for 2013. It was produced in China.

The AGB205 features a semi-hollow, single-cutaway design with a maple top with ivory multi-binding on maple back and sides mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and pearl dot position markers. Components include a pair of ACHB Artcore Humbucker passive pickups, an Artcore Custom 5 bridge with stop tailpiece and 15mm string spacing, Sure Grip III knobs, a plastic nut and Ibanez tuning machines.

For 2015 the pickups were changed to Classic Elite Bass pickups.

The AGB200 is a four string version.

The ADB205 was discontinued after 2017.

Specifications[]

Related content: Artcore Bass series | Models-icon
Specifications for AGB205
Model name: AGB205
Year(s) offered: 2013–2017
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: China
Price: MSRP: ¥100,000 (2017)
Finish(es): Dark Violin Sunburst (DVS)
Body
Body type:
Semi-hollow body
Dimensions:
  Width: 14½"/ 368mm
  Depth: 2⅝"/ 67mm
Top:
  Material: Maple
  Binding: Ivory
Back/sides:
  Material: Maple
Neck joint:
Set-in
Bridge:
Artcore Custom 5 (15mm string spacing)
Tailpiece:
Artcore Custom 5 tailpiece
Knob style:
Sure Grip III (black)
Hardware color:
Gold
Neck
Neck type:
AGB5
Neck material:
3-piece mahogany/ maple
Scale length:
770mm / 30.3"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
2013–2014: Pearl dot
2015–2017: White dot
Frets:
22 / medium
Nut:
Ivory plastic (45mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
2013–2014: Ibanez ACHB-B2 passive/ ceramic
2015–2017: Classic Elite Bass bridge passive
Neck pickup:
2013–2014: Ibanez ACHB-N2 passive/ ceramic
2015–2017: Classic Elite Bass neck passive
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
2010 agb200tbr set-in MG 0490

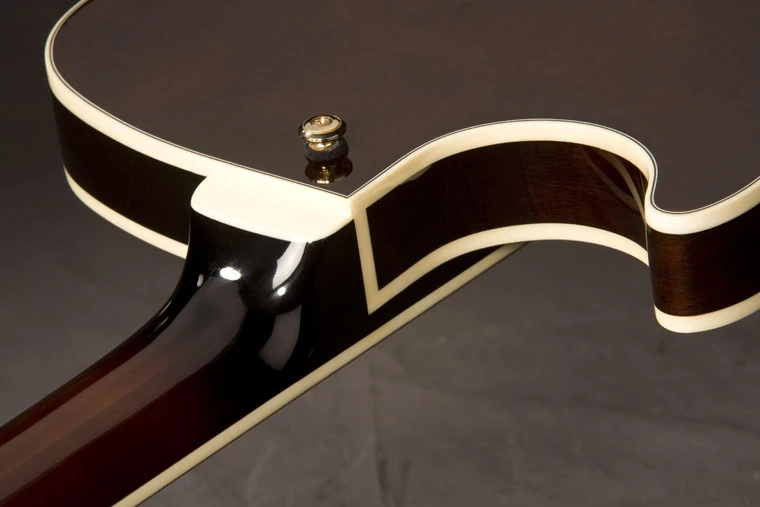

Neck joint
HH 3-way toggle
Pickup switching diagram
Controls ArtcoreBass

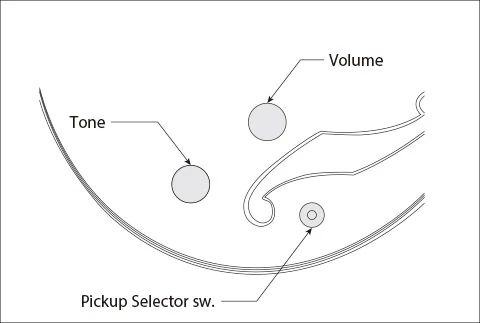

Controls layout
