For the more recent model with the same name, see AGB200.

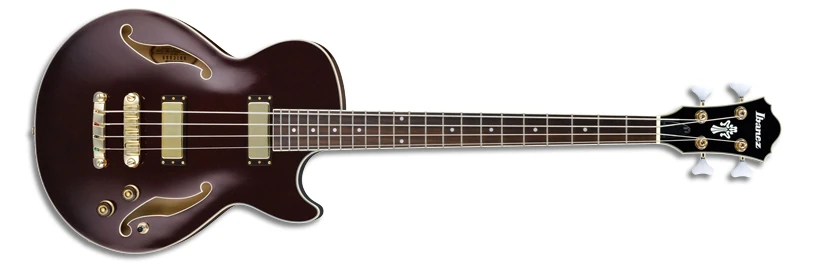

2012 AGB200 TBR 12 03
AGB200 Transparent Brown Red copyright sprite

The AGB200 is an Artcore Bass series semi-hollow body electric bass model introduced by Ibanez for 2007. It was produced in China.

The AGB200 features a semi-hollow, single-cutaway design with a maple top with ivory multi-binding on maple back and sides mated to a set-in mahogany and maple neck with a 22 fret rosewood fingerboard with ivory binding and pearl dot position markers. Components include a pair of ACHB Artcore Humbucker passive pickups, a Gibraltar III bass bridge with Quik Change III bass tailpiece, Sure Grip III knobs, a plastic nut and Ibanez tuning machines.

For 2015 the pickups were changed to Classic Elite Bass pickups.

The AGB205 is a five string version. The AFB200 is a related model with a slightly larger, thicker full-hollow body and a wooden bridge and trapeze tailpiece.

This version was discontinued in 2018, but a new version with the same name was launched late that year.

Specifications[]

Related content: Artcore Bass series | Models-icon
Specifications for AGB200 (2007–2018)
Model name: AGB200 (2007–2018)
Year(s) offered: 2007–2018
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: China
Price: MSRP: ¥90,000 (2017)
Finish(es): Ivory (IV) 2009–2010 / Transparent Brown (TBR) / Violin Sunburst (VLS) 2011–2016
Body
Body type:
Semi-hollow body
Dimensions:
  Width: 14½"/ 368mm
  Depth: 2⅝"/ 67mm
Top:
  Material: Maple
  Binding: Ivory
Back/sides:
  Material: Maple
Neck joint:
Set-in
Bridge:
Gibraltar III bass (19mm string spacing)
Tailpiece:
Quik Change III bass
Knob style:
Sure Grip III (black)
Hardware color:
Gold
Neck
Neck type:
AGB4
Neck material:
3-piece mahogany/ maple
Scale length:
770mm / 30.3"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
2007–2014: Pearl dot
2015–2018: White dot
Frets:
22 / medium
Nut:
Ivory plastic (42mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
2007–2014: Ibanez ACHB-B2 passive/ ceramic
2015–2018: Classic Elite Bass bridge passive
Neck pickup:
2007–2014: Ibanez ACHB-N2 passive/ ceramic
2015–2018: Classic Elite Bass neck passive
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.050/.070/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional finishes/ details

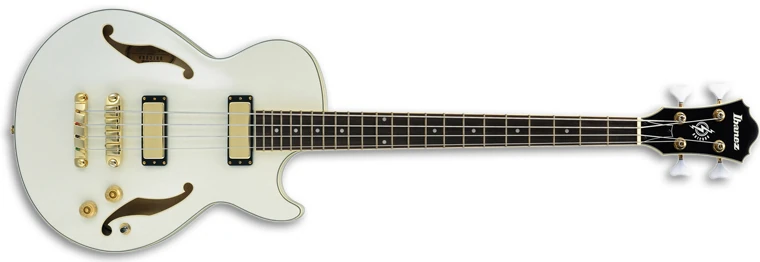

2009 AGB200 IV 12 01
Ivory
2012 AGB200 VLS 12 03
Violin Sunburst
2010 agb200tbr set-in MG 0490
Neck joint
HH 3-way toggle
Pickup switching diagram
Controls ArtcoreBass
Controls layout
