For the earlier model with the same name, see AGB200 (2007–2018).
2019 AGB200 NT 5B 01.png
AGB200 Natural Red copyright sprite.png

The AGB200 is an Artcore Bass series semi-hollow body electric bass model re-introduced by Ibanez in late 2018. It is made in China as part of the standard line.

The AGB200 features a semi-hollow, single-cutaway design with a maple top with ivory multi-binding on maple back and sides mated to a set-in mahogany and maple neck with a 22 fret laurel fingerboard with ivory binding and white dot position markers. Components include a pair of Classic Elite Bass passive pickups, a Gibraltar III bridge with Quik Change III tailpiece, Sure Grip III knobs, a plastic nut and Ibanez tuners.

For 2019 the mahogany and maple neck was changed to nyatoh and maple.

The AGB260 is a similar model with a sapele body and nyatoh neck. The AFB200 is a related model with a slightly larger, thicker full-hollow body and a wooden bridge and trapeze tailpiece.

Specifications

Specifications for AGB200
Year(s) produced: 2018–2021
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China
Finish(es): Natural (NT)
Body
Body type:
Semi-hollow body
Dimensions:
  Width: 14½"/ 368mm
  Depth: 2¾"/ 70mm
Top:

  Material: 2018–2019: Maple
                2020–2021: Linden
  Binding: Ivory

Back/sides:

  Material: 2018–2019: Maple
                2020–2021: Linden

Neck joint:
Set-in
Bridge:
Gibraltar III (19mm string spacing)
Tailpiece:
Quik Change III
Knob style:
Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
AGB4
Neck material:
2018: 3-piece mahogany/ maple
2019–2021: 3-piece nyatoh/ maple
Scale length:
770mm / 30.3"
Fingerboard material:
2018–2019: Laurel w/ ivory binding
2020–2021: Walnut w/ ivory binding
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Ivory plastic (42m)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Bridge pickup:
Classic Elite Bass bridge passive
Neck pickup:
Classic Elite Bass neck passive
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.050/.070/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Portal: Artcore Bass series | Bass models Models-icon.png

Images

Additional details
HH 3-way toggle.png
Pickup switching diagram
Controls ArtcoreBass.jpg
Controls layout
2021 AGB200 NT 5B front.jpg
Front of body

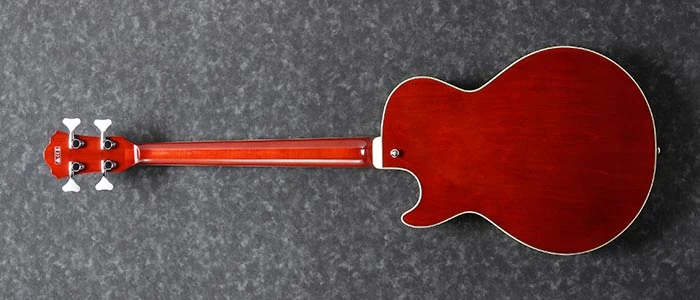

2021 AGB200 NT 5B back.jpg
Rear of body
