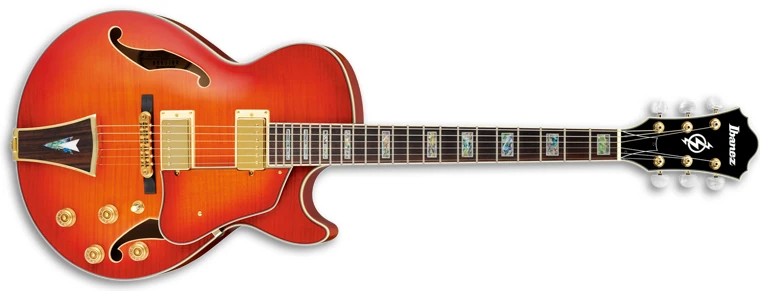

The AG96 is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez for 2009. It was made in China.

The AG96 features a mid-sized, full-hollow body design with a laminated flamed maple top with ƒ holes and cream multi-binding on flamed maple back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with cream binding and acrylic block position markers. Components include a pair of Ibanez Artcore humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a VT100DX rosewood tailpiece, a plastic nut, a matching flamed maple pickguard, Speed knobs, and Ibanez tuning machines.

The truss rod cover was changed for 2010.

The AG95 is a similar model with a figured bubinga body.

This AG96 was discontinued after 2010.

Specifications

Specifications for AG96
Year(s) produced: 2009–2010
Sold in: Europe
Made in: China
Finish(es): Dark Honey Sunburst (DHS)
Body
Body type:
Hollow body
Dimensions:
  Length: 480mm / 18⅞"
  Width: 368mm / 14½"
  Depth: 92mm / 3⅝"
Top:

  Material: Flamed maple (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
VT100DX rosewood w/ golden inlay
Pickguard:
Flamed maple on bakelite
Knob style:
Speed
Hardware color:
Gold
Neck
Neck type:
Artcore AG
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H)
Neck pickup:
Ibanez ACH1 (H)
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle.png
Pickup switching
Controls 2V2T3.png
Control layout
