For the more recent model with the same name, see AG95 (2013–2018).

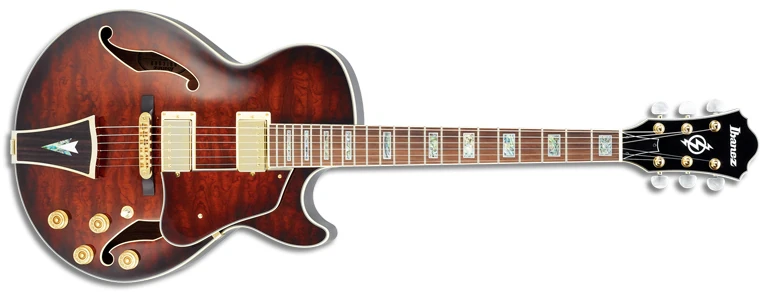

2007 AG95 DBS 12 01
AG95 Dark Brown Sunburst Red copyright sprite

The AG95 is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez for 2007. It was made in China.

The AG95 features a mid-sized, full-hollow body design with a laminated figured bubinga top with ƒ holes and cream multi-binding on figured bubinga back and sides with a single Venetian cutaway mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with cream binding and acrylic block position markers. Components include a pair of Ibanez Artcore humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge on a wooden base, a VT100 rosewood tailpiece, a plastic nut, a matching figured bubinga pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AG96 is a similar model with a flamed maple body.

This AG95 was discontinued after 2007 when it was replaced with a new version.

Specifications

Specifications for AG95 (2007–2012)
Model name: AG95 (2007–2012)
Year(s) produced: 2007–2012
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China
Finish(es): Dark Brown Sunburst (DBS)
Body
Body type:
Hollow body
Dimensions:
  Length: 480mm / 18⅞"
  Width: 368mm / 14½"
  Depth: 92mm / 3⅝"
Top:

  Material: Figured bubinga (laminated)
  Binding: Cream multi-ply

Back/sides:

  Material: Figured bubinga (laminated)

Neck joint:
Set-in
Bridge:
ART-1 on a wooden base (10.5mm string spacing)
Tailpiece:
VT100 rosewood w/ golden inlay
Pickguard:
Figured bubinga on bakelite
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AG Expressionist
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ cream binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H)
Neck pickup:
Ibanez ACH1 (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
